Supermicro X10SRA/X10SRA-F Motherboard User’s Manual

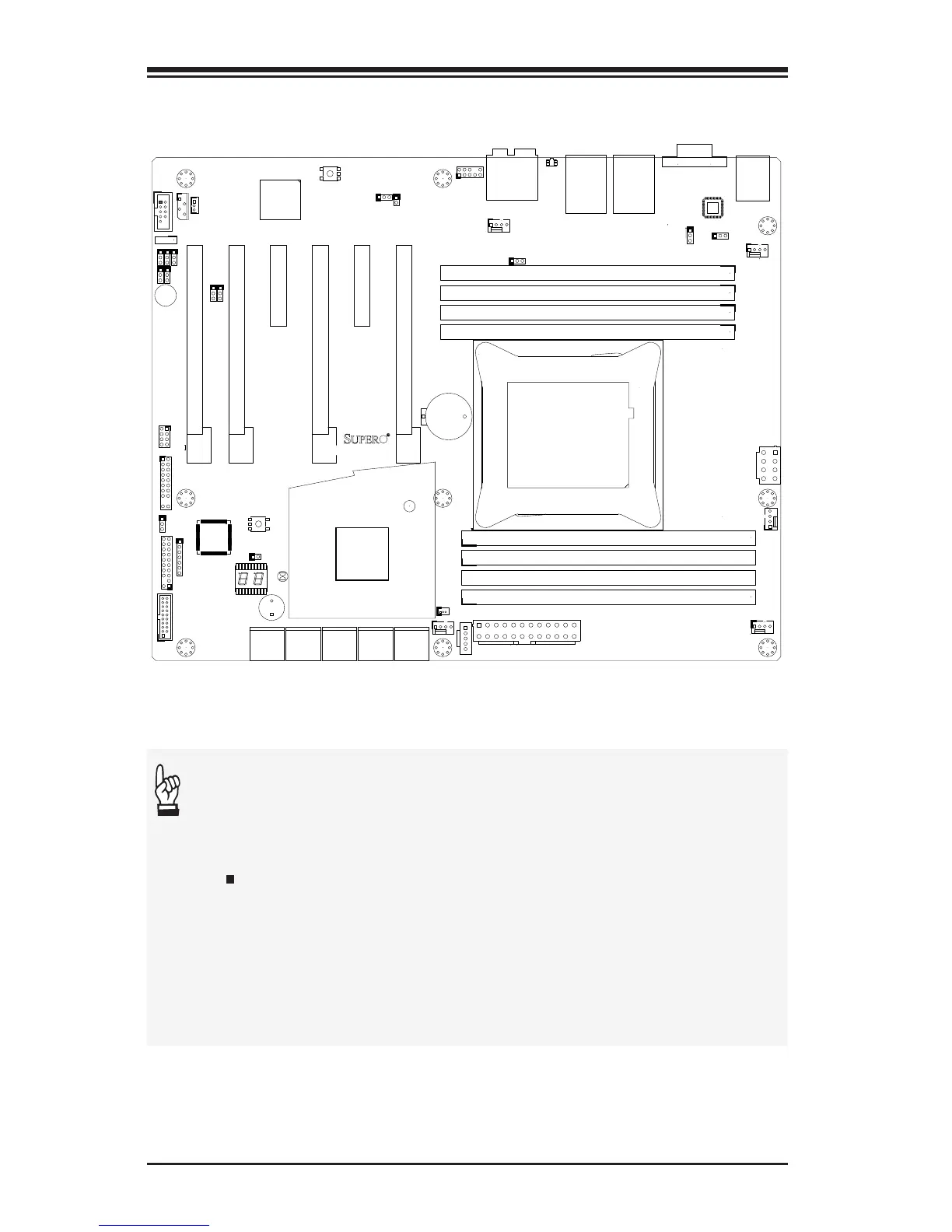

X10SRA/X10SRA-F Motherboard Layout
S11
JUSB30_I2
MH2
1
4
1
1
19
Important Notes to the User
•
See Chapter 2 for detailed informatio
n on jumpers, I/O ports and
JF1 front panel connections.
•
" " indicates the location of "
Pin 1".
•
Jumpers not indicated are fo
r testing only
.
•
When LE2 (Onboard P
ower LED Indicator) is on, system power
is on. Unplug the power cable b
efore installing or removing
any
components.
25
27
Table of Contents
Default Chapter
3
Manual Organization
3
Checklist
4
Conventions Used in the Manual
4
Standardized Warning Statements
5
Battery Handling
5
Product Disposal
6
Contacting Supermicro
8
Where to Find more Information
9
Table of Contents
10
Chapter 1 Introduction
19
Overview
19
About this Motherboard
19
Chipset Overview
19
Intel C612 Express Chipset Features
19
Motherboard Features
20
Special Features
22
Recovery from AC Power Loss
22
PC Health Monitoring
22
Fan Status Monitor with Firmware Control
22
Environmental Temperature Control
22
System Resource Alert
23
ACPI Features
23
Slow Blinking LED for Suspend-State Indicator
23
Power Supply
24
Super I/O
24
System Block Diagram
29
Chapter 2 Installation
31
Installation Components and Tools Needed
31
Static-Sensitive Devices
32
Precautions
32
Unpacking
32
Processor and Heatsink Installation
33
Installing the Processor
33
Installing a CPU Heatsink
37
Removing a Heatsink
38
Installing DDR4 Memory
39
DIMM Installation
39
Removing Memory Modules
39
Memory Population Guidelines
40
Memory Support
40
Motherboard Installation
42
Tools Needed
42
Location of Mounting Holes
42
Installing the Motherboard
43
Connectors/Io Ports
44
Back I/O Panel
44
Universal Serial Bus (USB)
45
Ethernet Ports
46
Back Panel High Definition Audio (HD Audio)
46
PS/2 Keyboard/Mouse Port
47
VGA Port (X10SRA-F Only)
47
Front Control Panel
48
Front Control Panel Pin Definitions
49
Power LED
49
Hdd Led
49
Nic1/Nic2 (Lan1/Lan2)
49
Overheat (Oh)/Fan Fail
49
NMI Button
50
Power Fail
50
Reset Button
50
Power Button
50
Connecting Cables
51
ATX Main PWR & CPU PWR Connectors (JPW1 & JPW2)
51
Fan Headers (Fan 1 ~ Fan 5)
52
Chassis Intrusion (JL1)
52
Internal Buzzer (SP1)
53
Speaker (JD1)
53
DOM PWR Connector (JSD1)
54
Standby Power Header (STBY1)
54
System Management Bus (JIPMB1 )
54
TPM Header (JTPM1)
55
Power Supply I
55
C (Jpi2C1)
55
Front Panel Audio Header (AUDIO FP)
56
Jumper Settings
57
Explanation of Jumpers
57
LAN1/LAN2 Enable/Disable
57
Clear CMOS (JBT1, CLR_CMOS_SW, S8)
58
PCI Slot SMB Enable (I C1/I C2)
58
Audio Enable (JPAC1)
59
Watch Dog Enable/Disable
59
USB Wake-Up (JPUSB1)
60
Manufacturing Mode (JPME2)
61
VGA Enable/Disable (JPG1)
61
BMC Enable/Disable (JPB1)
61
BIOS Recovery Switch (JBR1)
62
Power Button (S4)
62
BIOS Restore (S11)
62
Onboard Indicators
63
LAN 1/LAN 2 Leds
63
BMC Heartbeat (LEDM1)
63
Power LED (LE2)
64
Status Display (LED4)
64
SATA Connections
65
SATA Connections (I-SATA0~5, S-SATA0~3)
65
Chapter 3 Troubleshooting
67
Troubleshooting Procedures
67
Before Power on
67
No Power
67
No Video
68
Memory Errors
68
When the System Is Losing the Setup Configuration
68
Technical Support Procedures
69
Frequently Asked Questions
70
Battery Removal and Installation
71
Battery Removal
71
Proper Battery Disposal
71
Returning Motherboard for Service
72
Battery Installation
72
Chapter 4 BIOS
73
Introduction
73
Starting BIOS GUI Setup Utility
73
How to Change the Configuration Data
74
How to Start the Setup Utility
74
Setup Home
75
Load Optimized Defaults
77
Save All Settings Only
77
Exit Without Save
77
Save and Reset
77
Save and Exit Setup
77
System Information
78
Motherboard
78
System Date
78
System Time
78
Cpu
79
Memory
80
Pch
81
Processor (CPU)
82
Information
82
Performance
83
Hyper-Threading [ALL]
83
Execute-Disable Bit Capability (Available if Supported by the os & the CPU)
83
PPIN Control
83
Hardware Prefetcher (Available When Supported by the CPU)
83
Adjacent Cache Line Prefetch (Available When Supported by the CPU)
84
DCU Streamer Prefetcher (Available When Supported by the CPU)
84
DCU IP Prefetcher (Available When Supported by the CPU)
84
Direct Cache Access (DCA Support)
84
X2Apic
84
Aes-Ni
84
Intel® Virtualization Technology
84
Power Management
85
Eist
85
Turbo Mode
85
P-STATE Coordination
85
Chipset
87
System Agent
87
Intel VT for Directed I/O (VT-D)
88
Pch I/O
89
Azalia (HD Audio)
89
On Board Chip
90
Memory
91
Memory Information
91
Memory Configuration
92
Hardware Monitor
93
Temperature
93
Fan Speed
94
Fan Speed Control Mode
94
Voltage
95
Sata
96
SATA Controller
96
Configure SATA as
96
Ssata
98
Ssata Controller
98
Configure Ssata as
99
Pcie/Pci/Pnp
101
NB PCIE Setting
101
CPU SLOT1 PCI-E 3.0 X8 (in X16) - Gen X
102
CPU Port2 Bifurcate
102
CPU SLOT2 PCI-E 3.0 X8 (in X16) - Gen X
102
CPU SLOT4 PCI-E 3.0 X8 (in X16) - Gen X
102
CPU SLOT6 PCI-E 3.0 X16 - Gen X
102
Detect Non-Compliant Device
102
Above 4G Decoding (Available if the System Supports 64-Bit PCI Decoding)
102
PCI PERR/SERR Support
102
Cpu Slot1 Pci-E 3.0 X8 (in X16) Oprom
102
Cpu Slot2 Pci-E 3.0 X8 (in X16) Oprom
102
Onboard LAN Option ROM Type
103
Onboard LAN1 Option Rom/Onboard LAN2 Option ROM
103
Onboard Video Option ROM (X10SRA-F Only)
103
VGA Priority
103
USB Settings
104
Legacy USB Support
104
XHCI Hand-Off
104
EHCI Hand-Off
104
XHCI Mode
105
Ehci1
105
Ehci2
105
PCH-FW (Firmware)
105
ME FW Image Re-Flash
106
Super IO Configuration
106
Enable Serial Port 1
106
Current Config (IRQ)
106
Change (IRQ) Settings
106
Booting
107
Boot Device Settings
107
Boot Mode Select
107
Fixed Boot Order Priorities
107
Network Drive BBS Priorities
108
BIOS Features
109
Bootup Numlock State
109
Quiet Boot
109
Addon ROM Display Mode
109
Wait for "F1" for Error
109
Interrupt 19 Capture
109
Retry Boot
110
Watch Dog Function
110
Power Button Function
110
Restore on AC Power Loss
110
CSM Support
110
EUP Support
110
Fast Boot
110
Security Settings
111
Administrator Password
111
User Password
111
Secure Boot Menu
112
Secure Boot
112
Secure Boot Mode
112
Key Management
113
Default Key Provision
113
Enroll All Factory Default Keys
113
Save All Secure Boot Variables
113
Platform Key
113
Delete PK
113
Set New PK
114
Key Exchange Key
114
Delete KEK
114
Set New KEK
114
Append KEK
114
Authorized Signatures
114
Delete DBT
114
Set New DBT
114
Append DBT
115
Forbidded Signatures
115
Delete DBX
115
Set New DBX
115
Append DBX
115
Management
116
ACPI Settings
116
ACPI Sleep State
116
High Precision Event Timer
116
Console Redirection Settings
117
Enable Console Redirection
117
SOL (X10SRA-F Only)
119
Ipmi
123
System Event Log
123
SEL Components
123
Erasing Settings
124
Erase SEL
124
When SEL Is Full
124
BMC Network Configuration
124
Update IPMI LAN Configuration
125
Configuration Address Source (Available When the Item above - Update IPMI LAN Configuration Is Set to Yes)
125
Network Stack
126
Ipv4 PXE Support (Available When Network Stack Is Set to Enabled)
126
Ipv6 PXE Support (Available When Network Stack Is Set to Enabled)
126
NIC Configuration
128
SMBIOS Event Log
129
Erasing Settings
130
Appendix A BIOS Error Beep Codes
131
BIOS Error Beep Codes
131
Appendix B Software Installation Instructions
133
Installing Drivers
133
Configuring Superdoctor ® III
134
Appendix C UEFI BIOS Recovery Instructions
137
An Overview to the UEFI BIOS
137
How to Recover the UEFI BIOS Image (-The Main BIOS Block
137
To Recover the Main BIOS Block Using a USB-Attached Device
138
Appendix D Dual Boot Block
141
Introduction
141
BIOS Boot Block
141
BIOS Boot Block Corruption Occurrence
141
Steps to Reboot the System by Switch JBR1
142
4
Based on 1 rating
Ask a question
