2-10
Supermicro X10SRA/X10SRA-F Motherboard User’s Manual

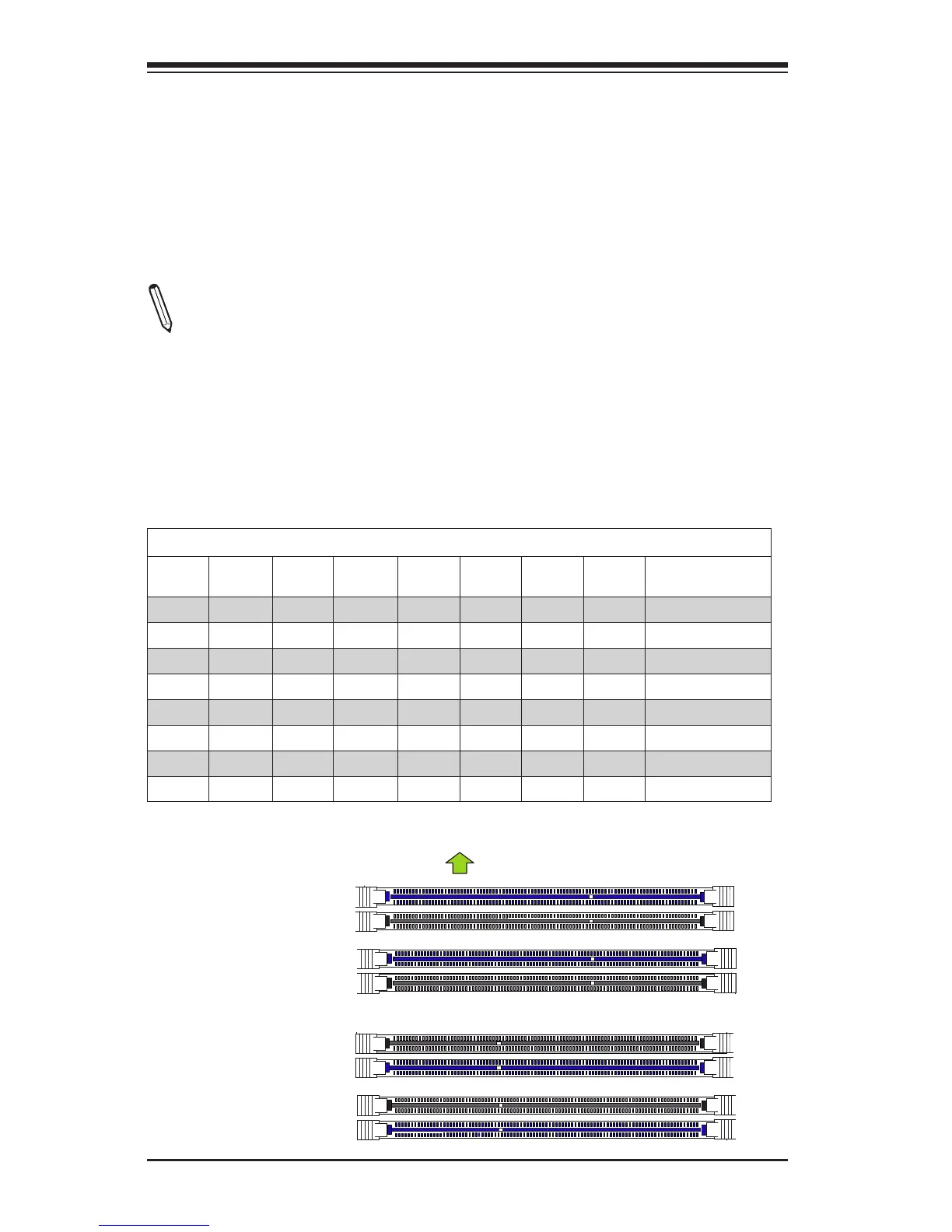

Memory Support
Towards the CPU
Memory Population Guidelines
When installing memory modules, the DIMM slots should be populated in
the following order: DIMMA1, DIMMB1, DIMMC1, DIMMD1 then DIMMA2,
DIMMB2, DIMMC2, DIMMD2.
• Always use DDR4 DIMM modules of the same size, type and speed.
Memory Population Examples (Balanced)
DIMMA1 DIMMB1 DIMMC1 DIMMD1 DIMMA2 DIMMB2 DIMMC2 DIMMD2 Total System
Memory
4GB 4GB 8GB
4GB 4GB 4GB 4GB 16GB
4GB 4GB 4GB 4GB 4GB 4GB 24GB
4GB 4GB 4GB 4GB 4GB 4GB 4GB 4GB 32GB
8GB 8GB 16GB
8GB 8GB 8GB 8GB 32GB
8GB 8GB 8GB 8GB 8GB 8GB 48GB
8GB 8GB 8GB 8GB 8GB 8GB 8GB 8GB 64GB
The X10SRA (-F) supports up to 512GB of ECC LRDIMM, up to 2133MHz,
or 256GB ECC RDIMM, up to 2133Mhz, or up to 64GB ECC/Non-ECC
Unbuf fered UDIMM (for Core i7 only), up to 2133MHz, in 8 memory slots.
Populating these DIMM modules with a pair of memory modules of the
same type and same size will result in interleaved memory, which will
improve memory performance.
Note: For memory optimization, use only DIMM modules that have been
validated by Supermicro. For the latest memory updates, please refer
to our website at http://www.supermicro.com/products/motherboard.
CPU
DIMMB2
DIMMA2
DIMMA1 (Blue Slot)
DIMMB1 (Blue Slot)
DIMMC1 (Blue Slot)
DIMMD1 (Blue Slot)
DIMMD2
DIMMC2
I/O Back Panel
