Supermicro X10SRA/X10SRA-F Motherboard User’s Manual

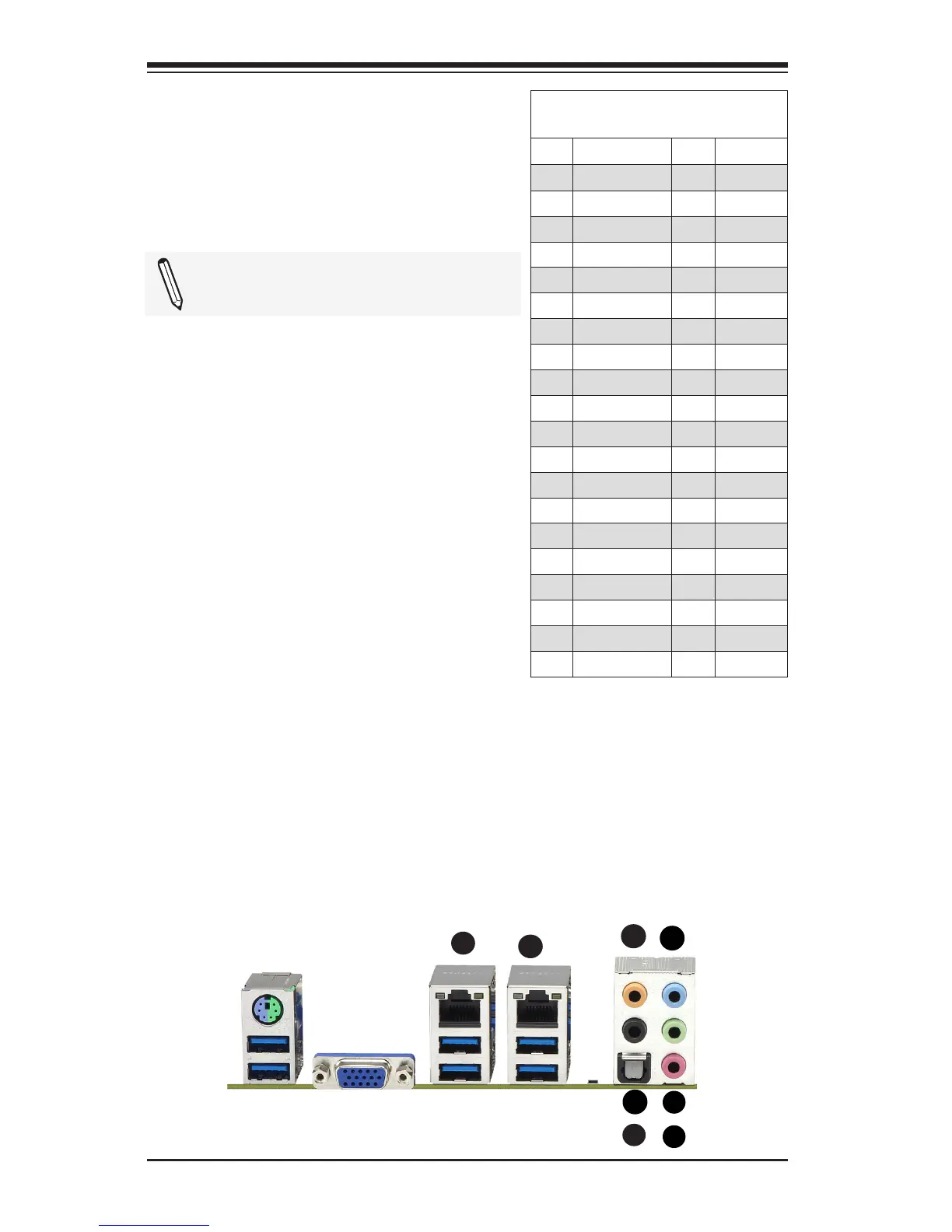

Ethernet Ports
Two Gigabit Ethernet ports (LAN1/LAN2)
are located next to the HD Audio Con-
nector on the I/O Backpanel to provide
network connections. These ports accept
RJ45 type cables.
Note: Please refer to the LED Indica-
tor Section for LAN LED information.
A. LAN1
B. LAN2
C. Center/LFE Out
D. Surround Out
E. S/PDIF Out
F. Line In
G. Line Out
H. Mic In
Back Panel High Denition Audio
(HD Audio)
This motherboard features a 5.1+2
Channel High Denition Audio (HDA) co-
dec that provides 10 DAC channels. The
HD Audio connections simultaneously
supports multiple-streaming 5.1 sound
playback with 2 channels of independent
stereo output through the front panel
stereo out for front, rear, center and
subwoofer speakers. Use the Advanced
software included in the CD-ROM with
your motherboard to enable this func-
tion.
