Chapter 4: AMI BIOS
4-7

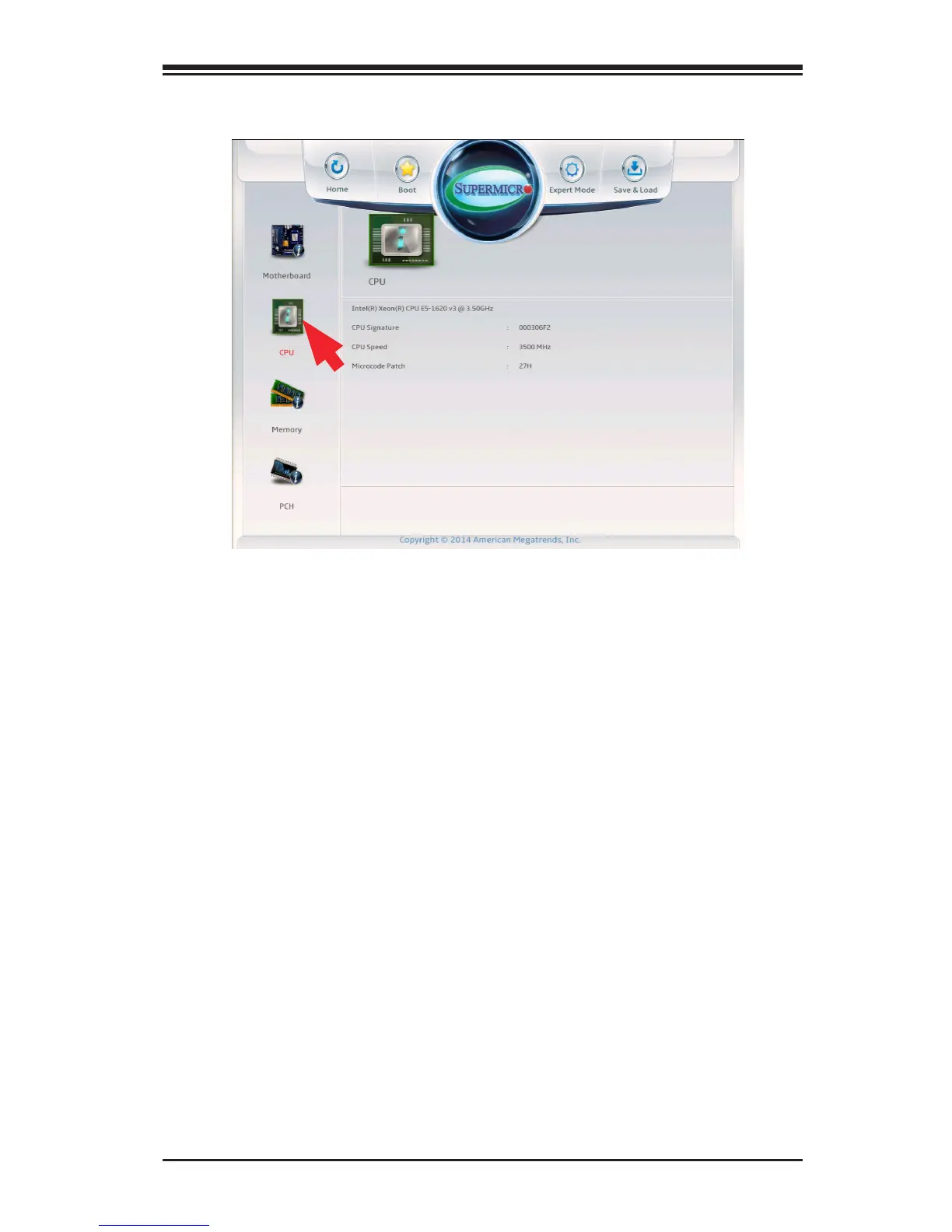

CPU
The following information are be
displayed in this se
ction:
•
T
ype and Speed of CPU -
indicates the brand, model name, model number
of the CPU and it's rated clock speed.
•
CPU Signature -
displays the unique signature embedded in the CPU.
•
CPU Speed -
this item shows the current CPU speed.
•
Microcode Patch -
displays the CPU's microcode patch version.
78
80
