Chapter 4: AMI BIOS
4-21
Set Throttling Mode
Use this feature to activate Closed Loop Thermal Throttling (CLTT),
which uses the DIMM memory temperature as input to make adjust-
ments to the throttling based on variations in system's fan speed. The
options are Disabled, and CLTT.
Socket Interleave Below 4GB
Select Enabled for the memory above the 4G Address space to be split
between two sockets. The options are Enable and Disable.
A7 Mode
Select Enabled to support the A7 (Addressing) mode to improve
memory performance. The options are Enable and Disable.

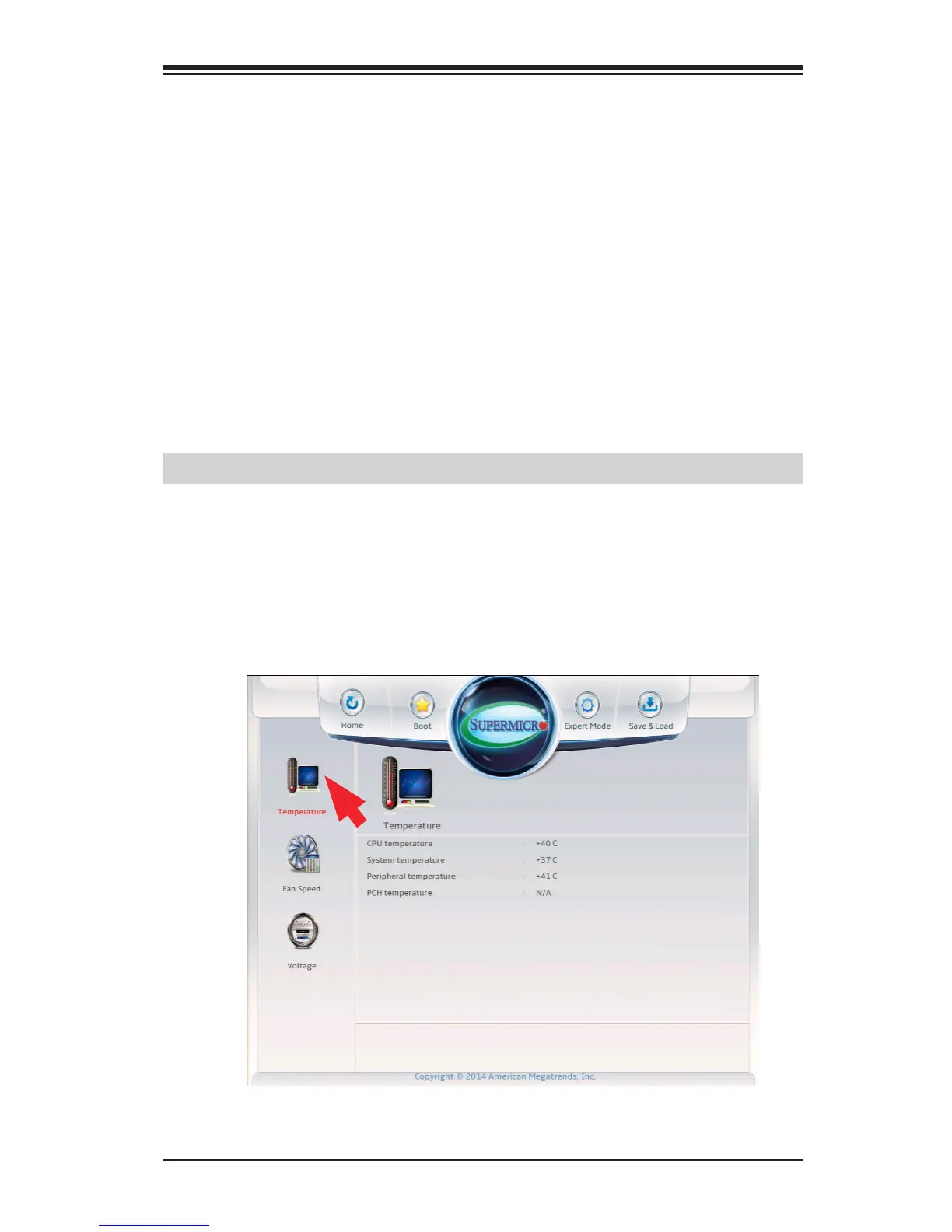

4-7 Hardware Monitor
This section is supported on the X10SRA motherboard only, or in the
case of the X10SRA-F, will only appear if jumper JPB1 is set to disabled
(pins 2-3).
Temperature
To Next Page
