Supero X7SB4 - Page 101

Appendix C: Intel HostRAID Setup Guidelines
C-5
Creating a RAID 1 Volume:
a. Select "Create RAID Volume" from the main menu and press the <Enter> key.

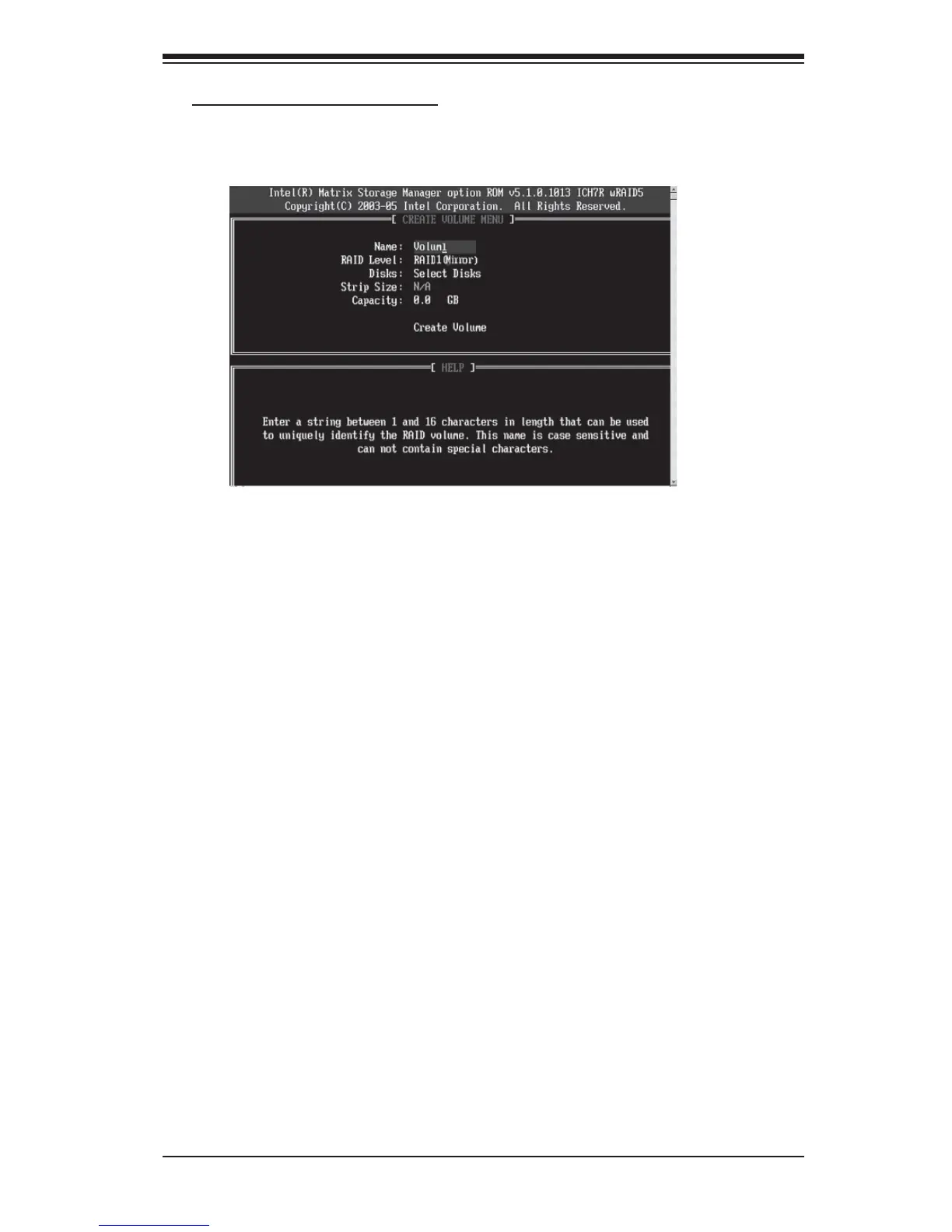

The following screen will appear:
b. Specify a name for the RAID 1 set and press the <Tab> key or the <Enter> key to
go to the next fi eld. (You can use the <Esc> key to select the previous menu.)
c. When RAID Level item is highlighted, press the <Up Arrow>, <Down Arrow>
keys to select RAID 1 (Mirror) and hit <Enter>.
d. When the Capacity item is highlighted, enter your RAID volume capacity and
hit <Enter>. The default setting is the maximum capacity allowed.
e. Press <Enter> when the Create Volume item is highlighted. A warning mes-
sage displays.
f. When asked "Are you sure you want to create this volume (Y/N), press "Y" to
create the RAID volume, or type "N" to go back to the Create Volume menu.
