X7SB4/X7SBE User's Manual
X7SB4
GLAN (Giga-bit Ethernet
Ports)
Two G-bit Ethernet ports (GLAN1/
GLAN2) are located next to the VGA
Connector on the IO backplane. These
ports accept RJ45 type cables.
C
B
A
A. GLAN1
B. GLAN2
C. VGA
VGA Connector

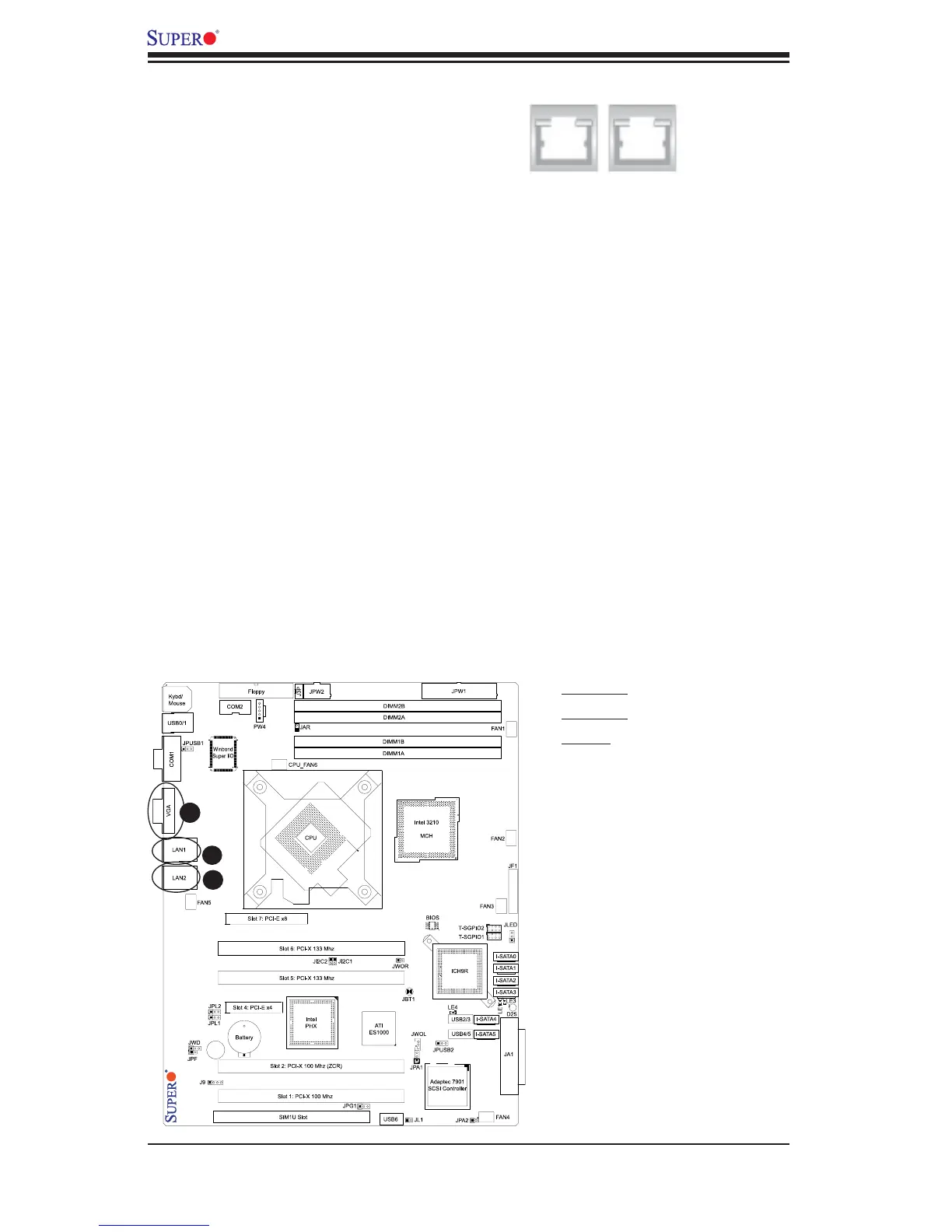

A VGA connector (J16) is located
between COM1 and GLAN1 on the IO
backplane. Refer to the board layout
below for the location.
