Chapter 2: Installation
2-11
NIC1/NIC2 LED Indicators
The NIC (Network Interface Controller)
LED connection for GLAN port1 is locat-
ed on pins 11 and 12 of JF1 and the LED
connection for GLAN Port2 is on Pins
9 and 10. Attach the NIC LED cables
to display network activity. Refer to the
table on the right for pin defi nitions.
HDD LED
The HDD LED connection is located on
pins 13 and 14 of JF1. Attach the hard
drive LED cable here to display disk ac-
tivity (for any hard drives on the system,
including SAS, Serial ATA and IDE, if
available). See the table on the right for
pin defi nitions.
HDD LED
Pin Defi nitions (JF1)
Pin# Defi nition
13 +5V
14 HD Active
GLAN1/2 LED
Pin Defi nitions (JF1)
Pin# Defi nition
9/11 Vcc
10/12 Ground

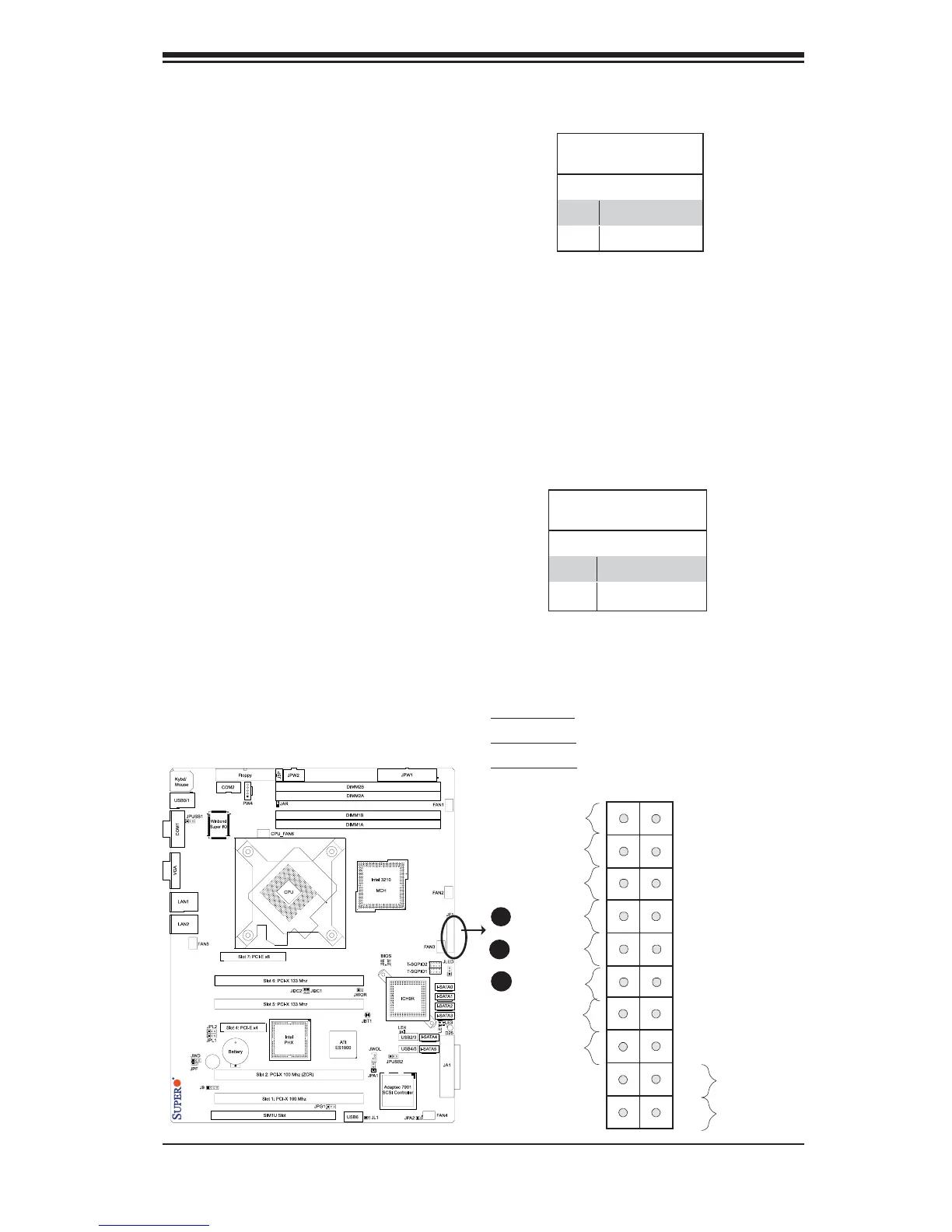

A. HDD LED
B. NIC1 LED
C. NIC2 LED
C
Power Button
OH/Fan Fail LED
1
NIC1 LED
Reset Button
2
HDD LED
Power LED
Reset
PWR
Vcc
Vcc
Vcc
Vcc
Ground
Ground
1920
Vcc
X
Ground
NMI
X
Vcc
PWR Fail LED
NIC2 LED
B
A
X7SB4
