Chapter 2: Installation
2-29
X7SB4

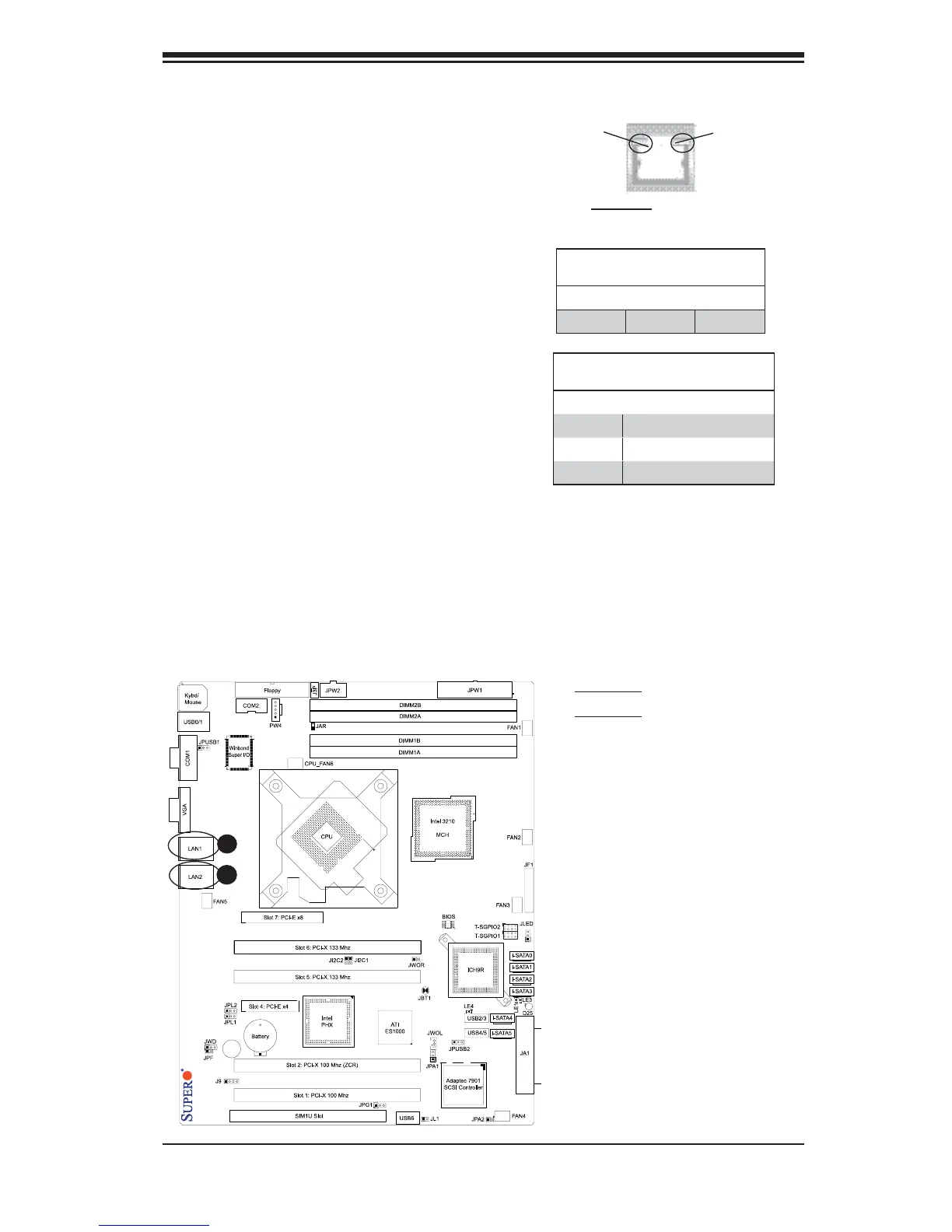

2-8 Onboard Indicators
A
B
A. GLAN1
B. GLAN2
GLAN LEDs
There are two GLAN ports on the moth-
erboard. Each Gigabit Ethernet LAN port
has two LEDs. The yellow LED indicates
activity, while the Link LED may be green,
amber or off to indicate the speed of the
connection. See the tables at right for
more information.
Activity
LED
GLAN Activity Indicator
LED Settings
Color Status Defi nition
Yellow Flashing Active
GLAN Link Indicator
LED Settings
LED Color Defi nition
Off No Connection or 10 Mbps
Green 100 Mbps
Amber 1 Gbps
Link
LED
(*Rear View: When viewing it from
the rear side of the chassis)
