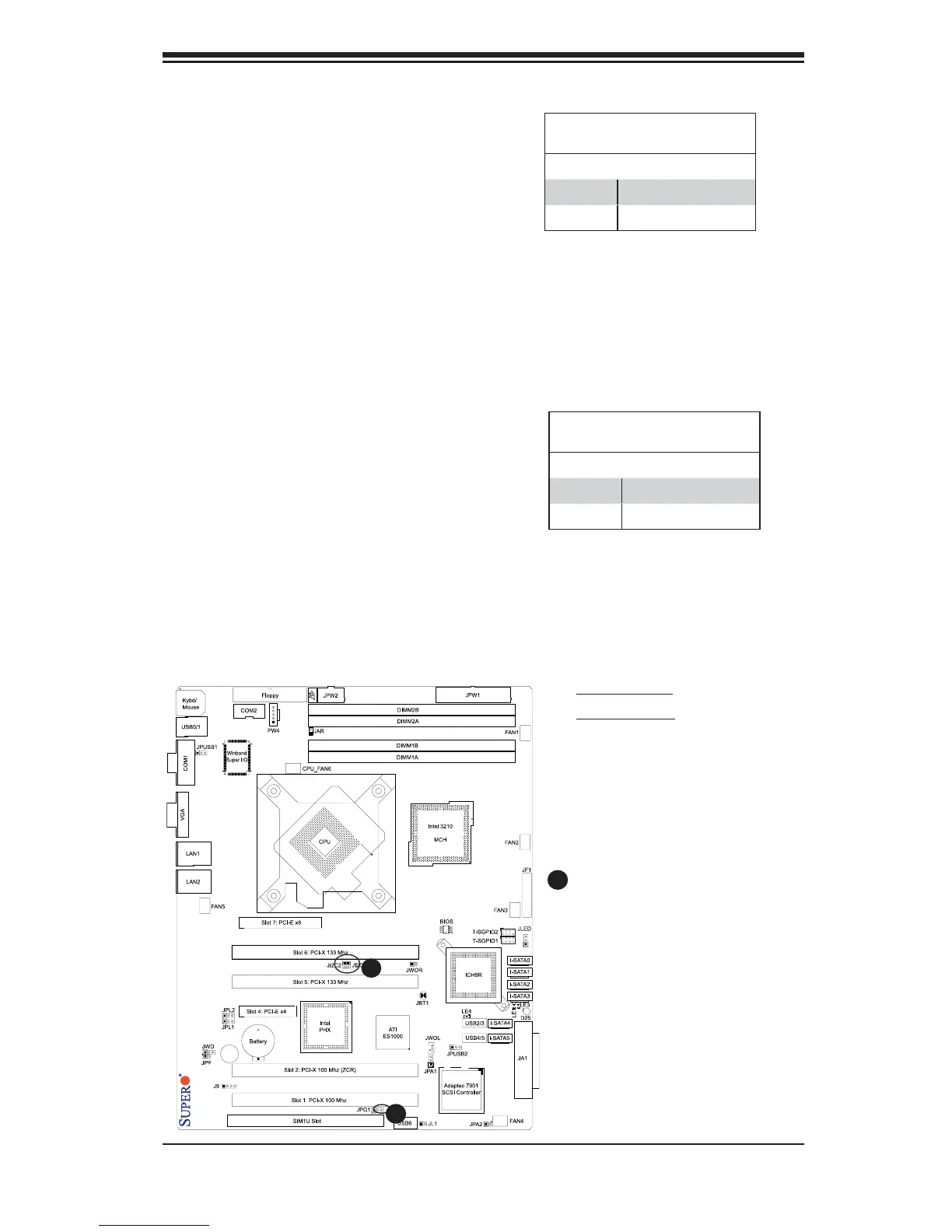

SMBus to PCI/PCI-Exp. Slots
Jumpers JI
2
C1, JI
2
C2 allow your PCIX/
PCI-E cards to be connected to the
System Management Bus
. The default
setting is Open to disable the connec-
tion. See the table on the right for jumper
settings.
VGA Enable/Disable
JPG1 enables or disables the VGA Con-
nector on the motherboard. See the table
on the right for jumper settings. The
default setting is enabled.
B
SMB to PCI Enable
Jumper Settings
Pin# Defi nition
Open Disabled (*default)
Closed Enabled
VGA Enable
Jumper Settings
Pin# Defi nition
Pins 1-2 Enabled (*default)
Pins 2-3 Disabled
A. SMB to PCI
B. VGA Enable
