2-8
X7SB4/X7SBE User's Manual

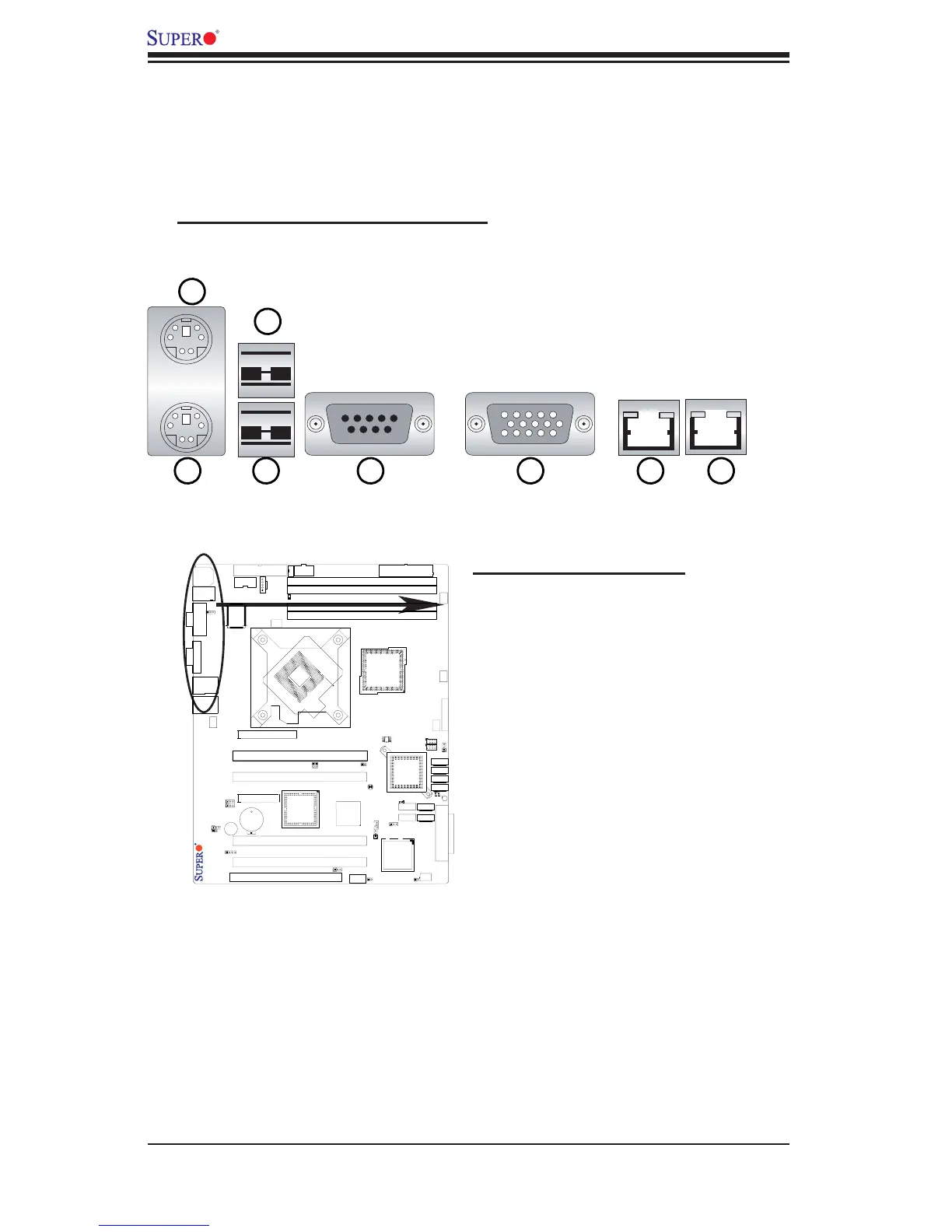

Back Panel I/O Port Locations and Defi nitions
2-5 Control Panel Connectors/IO Ports
The I/O ports are color coded in conformance with the PC 99 specifi cation. See
Figure 2-3 below for the colors and locations of the various I/O ports.
A. Back Panel Connectors/IO Ports
Back Panel Connectors
1. Keyboard (Purple)
2. PS/2 Mouse (Green)
3. Backpanel USB 0**
4. Backpanel USB 1**
5. COM Port 1 (Turquoise)
6. VGA Port (Blue)
7. Gigabit LAN 1
8.Gigabit LAN 2
*See Section 2-5 for details.
** Backpanel USB 7/8 are OEM only
1
3
4
5
6
7
8
2
X7SB4
