Supero X7SB4 - ATX PS;2 Keyboard and PS;2 Mouse Ports; Serial Ports

2-16
X7SB4/X7SBE User's Manual

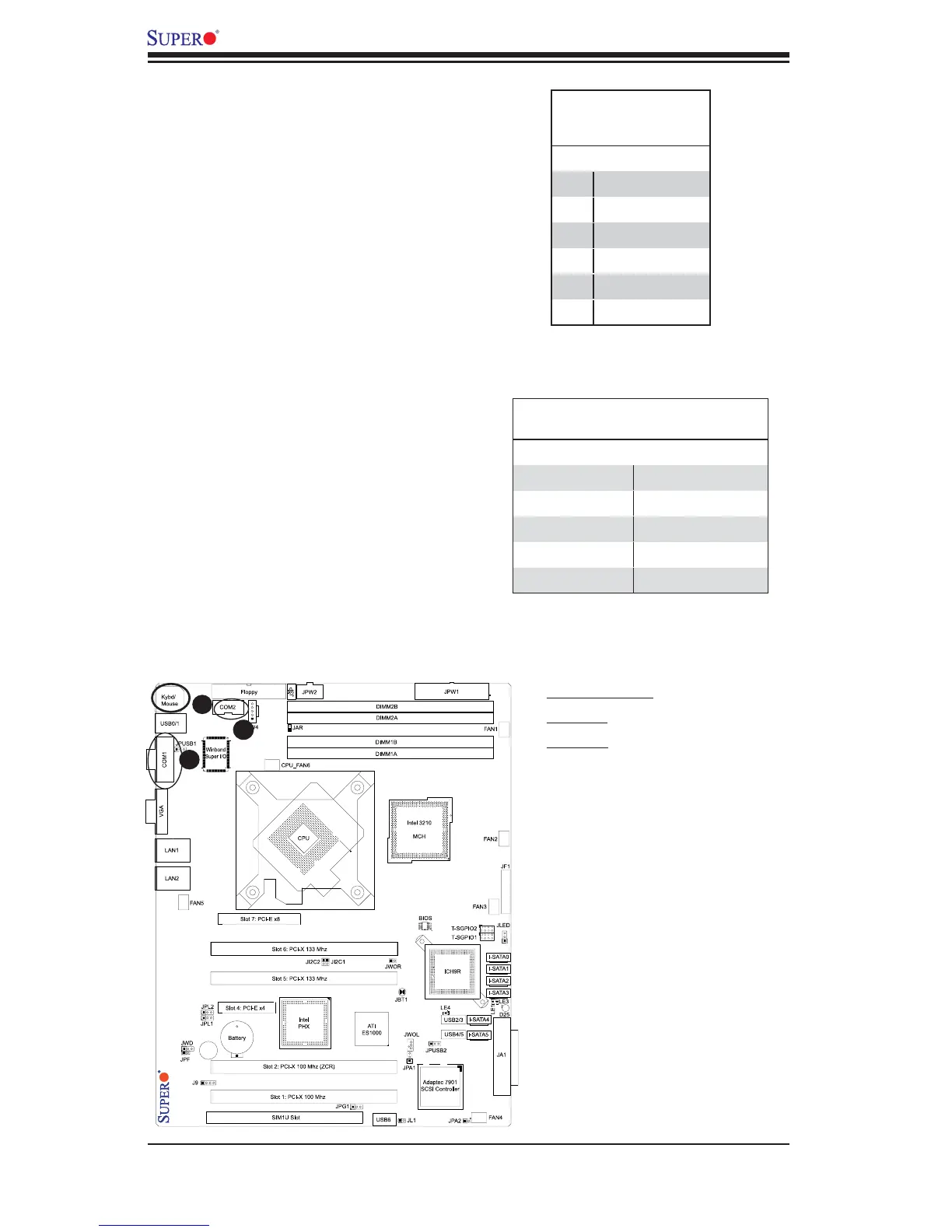

X7SB4
B
C
A
Serial Ports
COM1 (J31) is a connector located on
the IO Backpanel and COM2 is a header
located at J13. See the table on the right
for pin defi nitions.
Serial Port Pin Defi nitions
(COM1/COM2)
Pin # Defi nition Pin # Defi nition
1CD 6DSR
2RD 7RTS
3TD 8CTS
4DTR 9RI
5 Ground 10 NC
(Pin 10 is available on COM2 only.
NC: No Connection.)
ATX PS/2 Keyboard and PS/2
Mouse Ports
The ATX PS/2 keyboard and the PS/2
mouse are located at J28. See the
table on the right for pin definitions.
(The mouse port is above the keyboard
port.) See the table on the right for pin
defi nitions.
PS/2 Keyboard and
Mouse Port Pin
Defi nitions
Pin# Defi nition
1 Data
2NC
3 Ground
4 VCC
5 Clock
6NC
A. Power Button
B. COM1
C. COM2
