Chapter 2: Installation
2-7
WARNING!

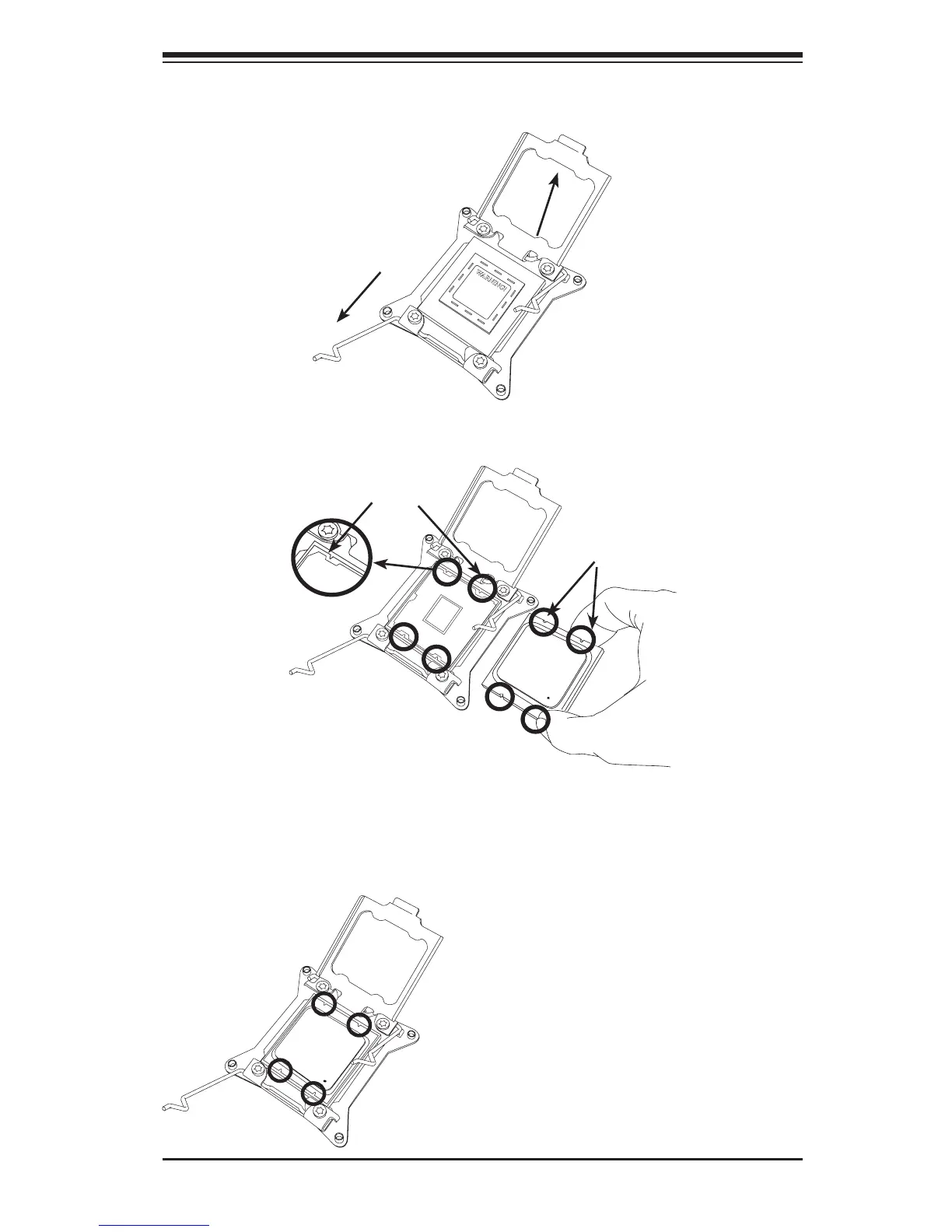

1. Use your index ngers to loosen the lever and open the load plate.
2. Use your thumb and index nger to hold the CPU on its edges. Align the CPU
keys, which are semi-circle cutouts, against the socket keys.
3. Once they are aligned, carefully lower the CPU straight down into the socket.
(Do not drop the CPU on the socket. Do not move the CPU horizontally or
vertically. Do not rub the CPU against the surface or against any pins of the
socket to avoid damaging the CPU or the socket.)
Socket Keys
CPU Keys
Warning: You can only install the CPU
inside the socket in one direction.
Make sure that it is properly inserted
into the CPU socket before closing the
load plate. If it doesn't close properly,
do not force it as it may damage your
CPU. Instead, open the load plate
again and double-check that the CPU
is aligned properly.
