X9SRL Motherboard Series User’s Manual

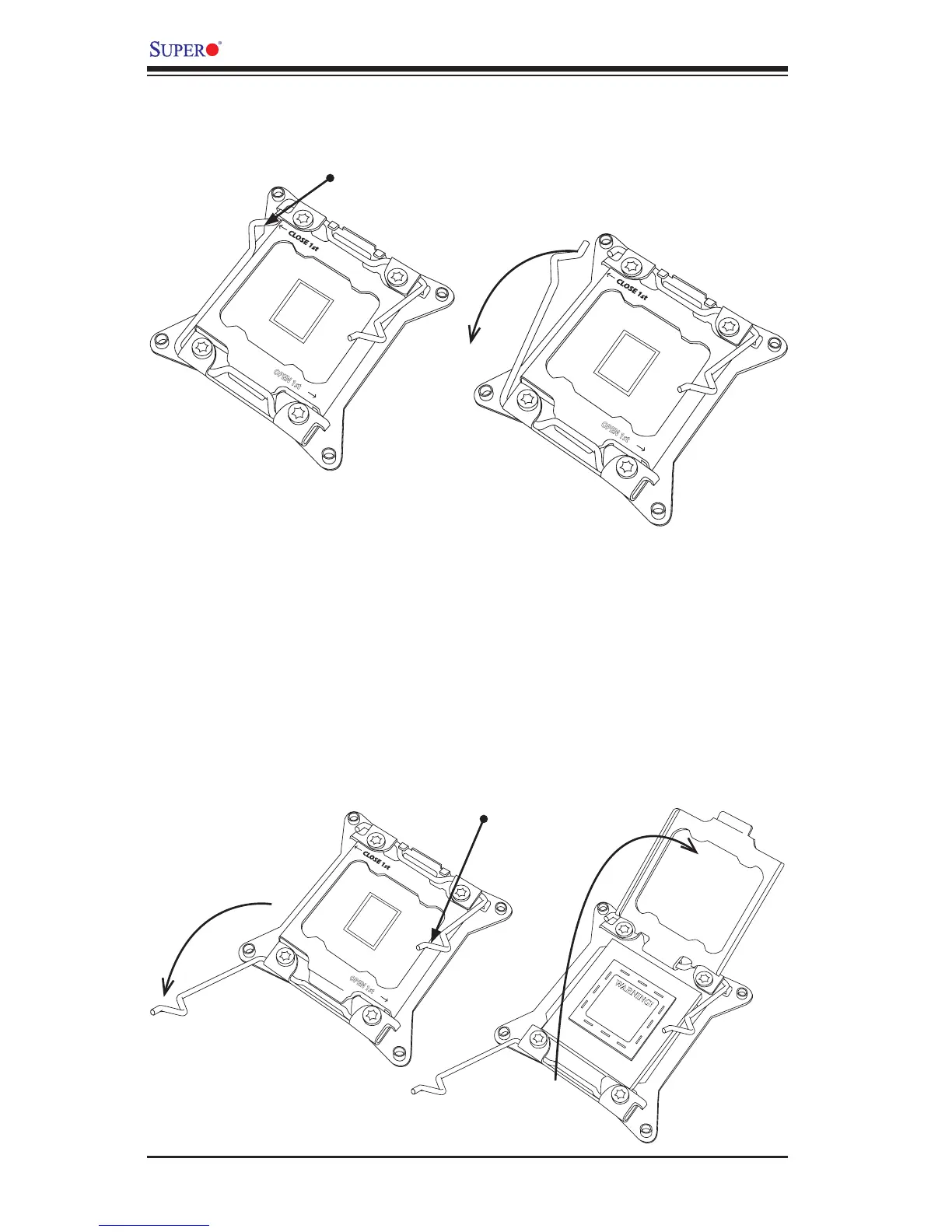

2. Press the second load lever labeled 'Close 1st' to release the load plate
which covers the CPU socket from its locking position.
3. With the 'Close 1st' lever fully retracted, gently push down on the 'Open 1st'
lever to open the load plate. Lift the load plate to open it completely.
OPEN 1st
OPEN 1st
1
2
Press down on
Load
Lever 'Close 1st'
WARNING!
OPEN 1st
Gently push down to pop
the load plate open
1
2
Pull lever away from
the socket
To Next Page
