Supero X9SRL User Manual

Chapter 2: Installation
2-19
Power Button
OH/Fan Fail LED
1
NIC1 LED
Reset Button
2
HDD LED
Power LED
#3~4
#1~2
Vcc
Vcc
Vcc
UID LED
Ground
Ground
1920
X
X
Vcc
NIC2 LED
NMI
Ground
PS Fail LED
Vcc

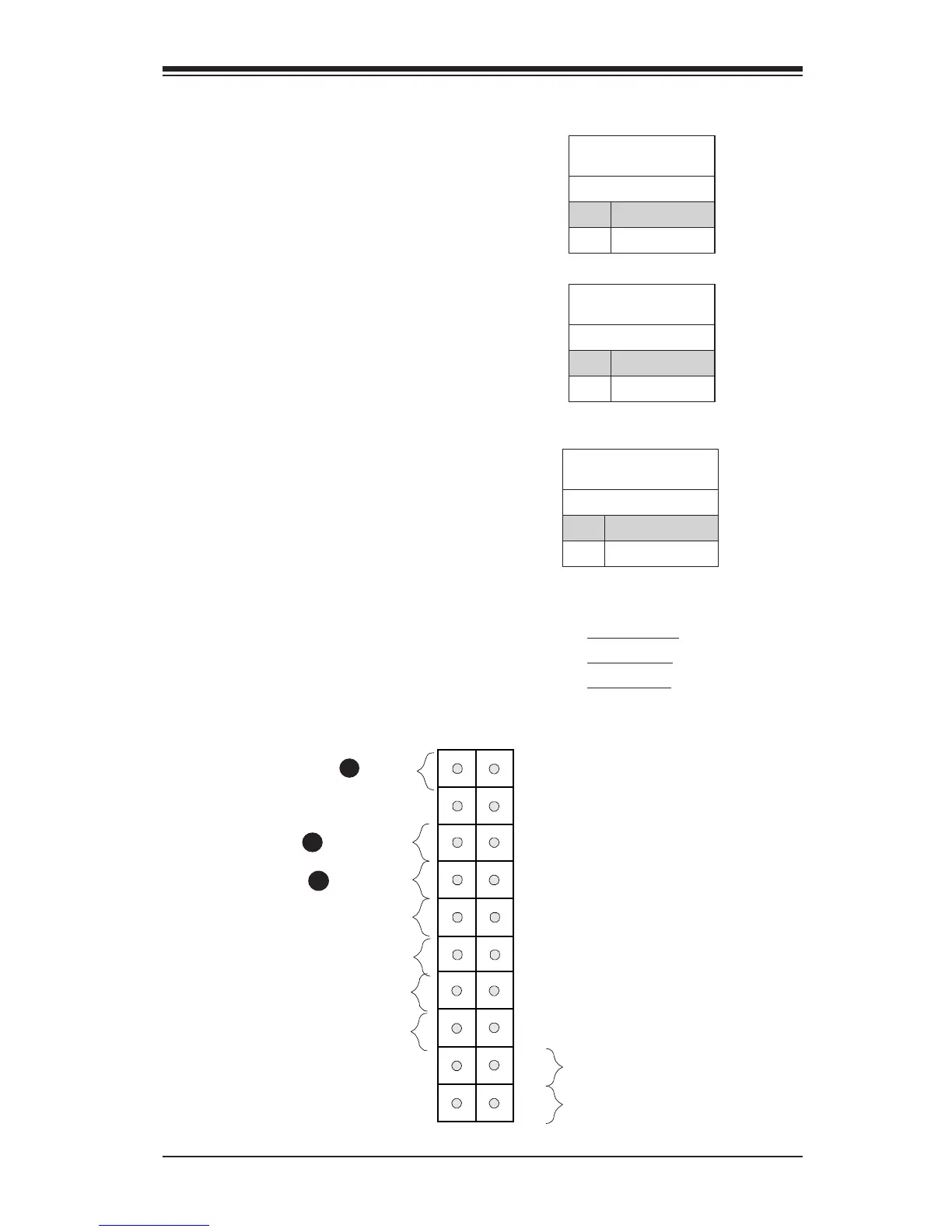

Front Control Panel Pin Denitions
Power LED
The Power LED connection is
located on pins 15 and 16 of JF1.
Refer to the table on the right for
pin denitions.
Power LED
Pin Denitions (JF1)
Pin# Denition
15 +5V
16 Ground
A
B
HDD LED
The HDD LED connection is located
on pins 13 and 14 of JF1. Attach
a cable here to indicate the status
of HDD-related activities, including
SATA activities. See the table on the
right for pin denitions.
HDD LED
Pin Denitions (JF1)
Pin# Denition
13 +5V
14 HD Active
C
A. NMI Button
B. PWR LED
C. HDD LED
NMI Button
The non-maskable interrupt (NMI)
button header is located on pins 19
and 20 of JF1. Refer to the table on
the right for pin denitions.
NMI Button
Pin Denitions (JF1)
Pin# Denition
19 Control
20 Ground
