Supero X9SRL User Manual

Chapter 2: Installation
2-31
1
JD1
7
JIPMB1
C
A
4
5
8
1
JPW2
I-SATA5
I-SATA4
I-SATA3
I-SATA2
2
UID_SW
1
DIMM_C1DIMM_C2DIMM_D1
DIMM_A1
DIMM_B1
DIMM_A2
DIMM_B2
DIMM_D2
I-SATA1
I-SATA0
I-SAS3
I-SAS2
I-SAS1
I-SAS0
7
JVGA
2
1
JF1
19
20
JKBMS1
C
A
UID_LED
JLAN_USB12
X_BT1
+
5
JPI2C1
1
JBT1
1
JPW1
13
JUSB2
3-SGPIO1
2
8
T-SGPIO2 T-SGPIO1
JOH1
1
JL1
1
JI2C2
1
JI2C1
A
DP3
CA
JPBIOS1
JPME1
1
JIBTN1
3
1
3
JWD1
JVR2
3
1
JPL2
1
JPL1
1
3
JVR1
1
3
1
JPUSB1
3
3
JPG1
1
JPB1
1
FANA
FAN5
1
4
FAN3
FAN4
1
FAN2
4
1
FAN1
4
MH11
MH1
MH5
MH9
MH8
MH2
MH10
JCOM1
PCIE6
PCIE5
PCIE4
PCIE3
PCIE7
2
JTPM1
PCIE1
PCIE2
JPK1
1 3
JSD1
JSTBY1
1 3
JLAN1
JLAN2
REV:1.00
Tested to Comply With FCC Standards FOR HOME OR OFFICE USE
DESIGNED IN USA
BAR CODE
JCOM2
1
5
6
9
1
7
2
JUSB45
1
7
2
JUSB67
1
7
JUSB89
P1-DIMM2D P1-DIMM2C P1-DIMM1C P1-DIMM1D
P1-DIMM2B
P1-DIMM2A
CPU1
SLOT7 PCI-E 3.0X8 (INX8)
SLOT6 PCI-E 3.0X8 (INX16)
SLOT5 PCI-E 3.0X8 (INX8)
SLOT4 PCI-E 3.0X8 (INX16)
SLOT3 PCI-E 3.0X4 (INX8)
SLOT2 PCI-E 3.0X4 (INX8)
SLOT1 PCI-E 2.0X4 (INX8)
X9SRL
JPK1
JPME1
JBT1 COMS CLEAR
JPBIOS1
JL1 CHASSIS INTRUSION
JSD1:SATA DOM POWER
JPI2C1:PWRI2C
JTPM1:TPM/PORT80
ON:ME RECOVEROS OFF:NORMAL
COM2
Pin1:RAID_KEY_PCH
Pin3:PCH_DYN_SKU
Pin2:Ground
JPB1
1-2 Enable
2-3 Disable
1-2:NORMAL
2-3:RECOVER BIOS
1-2 Enable
2-3 Disable
JPG1: VGA
OFF:DISABLE
JI2C1/JI2C2
ON: ENABLE
UID
RST
ON
PWR
LAN2
PWR
FF OH
FAIL
HDD LED PWR
X
NIC
1 2
NIC
NMI
LAN1
2-3:NMI
1-2:RST
2-3 Disable
1-2 Enable
JWD1:Watch Dog
JPL1/2: LAN
PWR LED
SPEAKER
1-3:
4-7:
JD1:
VGA
COM1
IPMI_LAN
USB0/1
2-3 ENable
P1-DIMM1B
KB/MOUSE
1-2 Disable
JPUSB1:USB Wake Up
P1-DIMM1A
A
B
VGA Enable/Disable
Jumper Settings
Jumper Setting Denition
Pins 1-2 Enabled
Pins 2-3 Disabled
Onboard VGA Enable (JPG1)

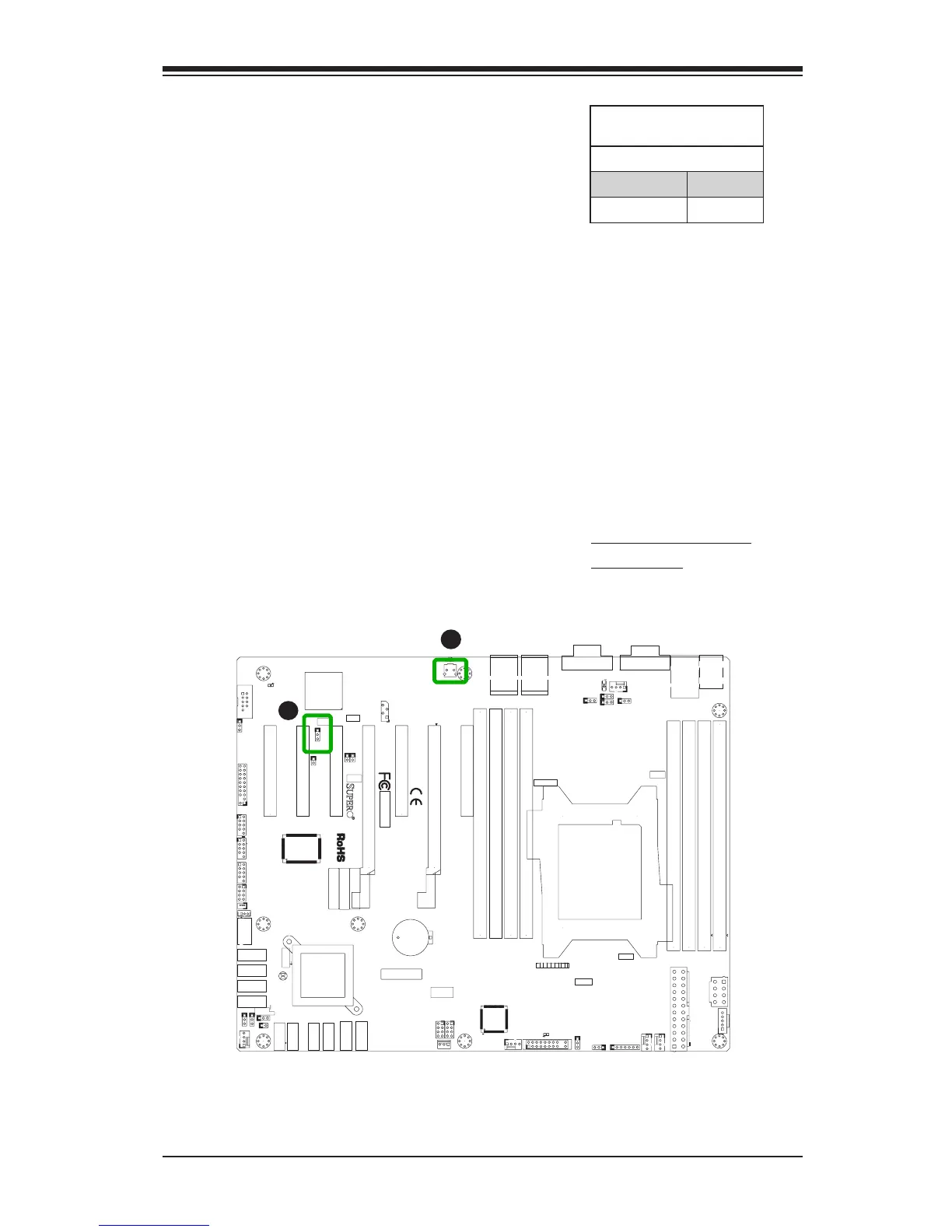

JPG1 allows you to enable or disable the on-
board VGA connector. The default position is
on pins 1 and 2 to enable VGA. See the table
on the right for jumper settings.
Unit Identier Switch (UID)
The UID Switch (UID) is located on the I/O back
panel. When you push the UID Switch, both the
Rear UID LED and Front Panel UID LED will
turn on. Push the UID Switch again to turn off
both Indicators. These UID Indicators provide
easy identication of a system unit that may be
in need of service. (For example, in a cabinet
with several server units installed.)
A. Onboard VGA Enable
B. UID Switch

Supero X9SRL Specifications

General

Brand	Supero
Model	X9SRL
Category	Motherboard
Language	English
