Superrollo GW60 - Surface Mounting: Connecting Power and Belt Insertion

27
i
EN

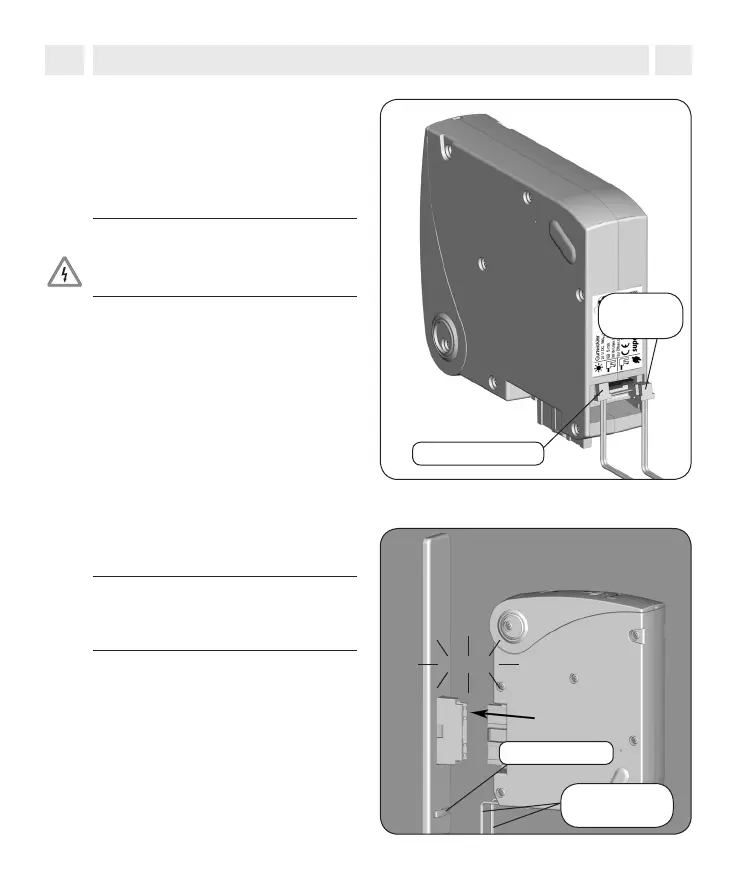

8.
Connect the mains adapter and the
sun sensor.
Sun sensor
Power
supply
8. Surface mounting
9.
Next, press the belt into the wall
bracket.
Click
Cable bracket
Connecting
cables
Now, connect the mains adapter and,
if desired, the sun sensor on the back
of the belt winder.
CAUTION
Connecting the plugs in the wrong
way may destroy the belt winder.
◆ Plug both plugs true to side into
the opening. Observe the con-
nection symbols on the type plate.
◆ Never insert the plugs onto the
PCB with force.
IMPORTANT
Lead the connecting cables behind
the cable bracket.
