Superrollo GW60 - Removing Belt from Flush-Mounted Winder on Unit Failure; Procedure for Belt Removal During Unit Failure

44
i
EN
3.
Maintain pressure on the disengag-
ing bracket and pull the belt out of
the belt winder as far as possible.
In the event that the belt winder unit
fails and the motor no longer runs,
you can use the disengaging bracket
provided in order to fully remove the
belt from the belt winder unit, without
the need for cutting it. For this, you
must rst dismantle the ush-mounted
belt winder.
1.
Remove the mains adapter from the
socket.
Drive release
Drive release

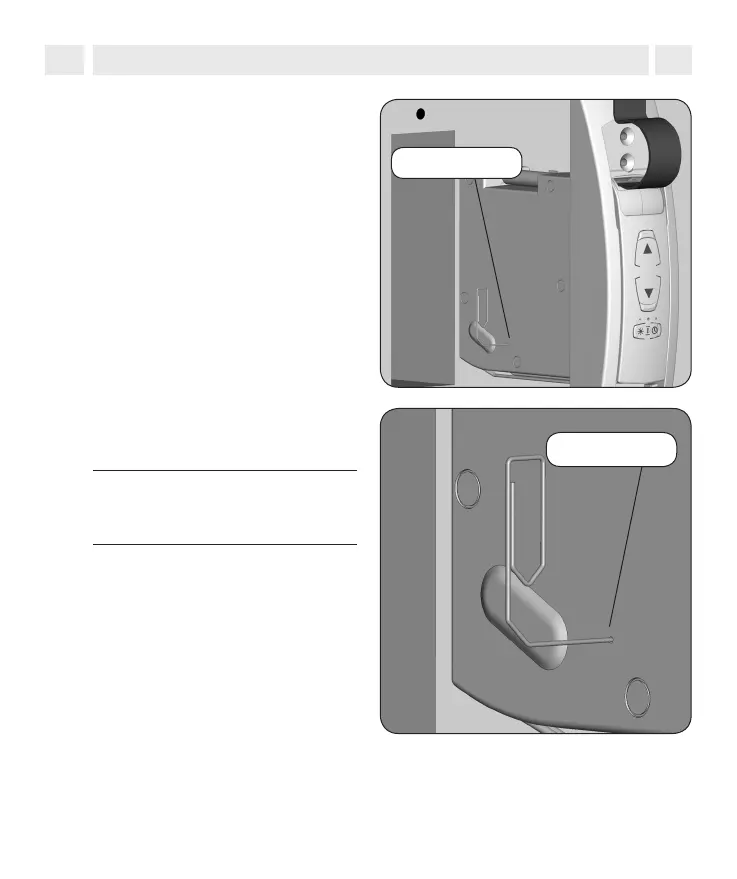

17. Flush-mounted belt winder, remove the belt in the event of unit failure
2.
Release the drive using a sharp
object (e.g. a paper clip).
ATTENTION
Hold on to the belt tightly, as otherwise
the roller shutters may slam shut.
A small amount of resistance must be
overcome when pressing.
Release the belt from the fastening
hook and pull it out completely from
the belt winder.
