13.

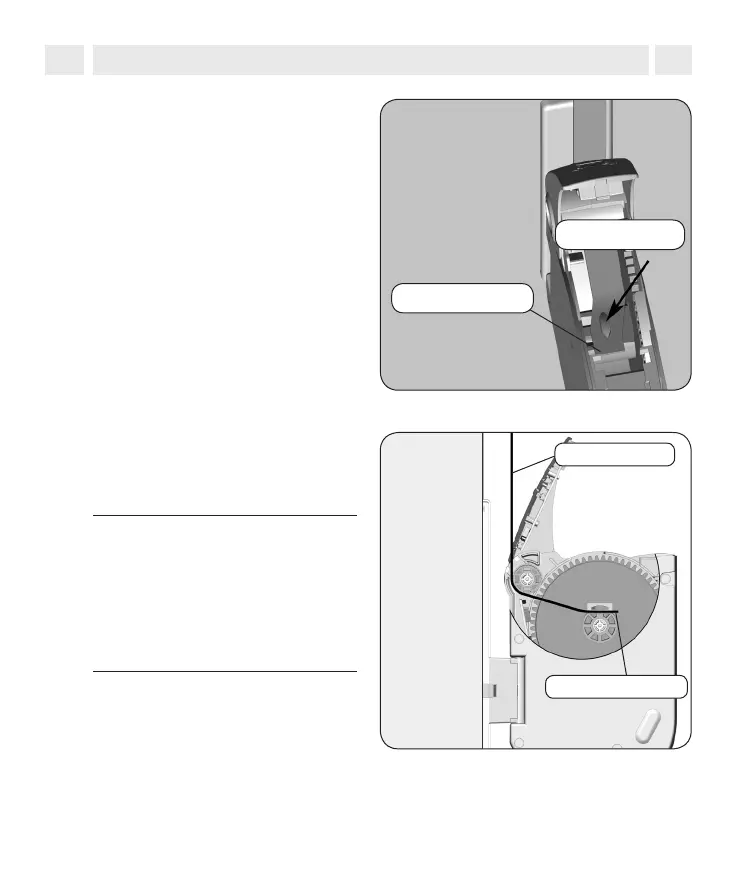

Pull the belt over the fastening
hook.
14.
Belt path when surface-mounted.
Fastening hook
Belt end
Belt
Belt end
8. Surface mounting
Continue to feed the belt into the de-
vice as shown in the bottom sectional
diagram and subsequently slide the
belt over the fastening hook from
above.
This sectional diagram shows the belt
path within the belt winder.
NOTE
If the fastening hook is not accessible,
plug the mains adapter into the mains
socket and drive the hook into the
right position with the control buttons.
Subsequently pull the mains adapter
out of the socket again.
