2.5.

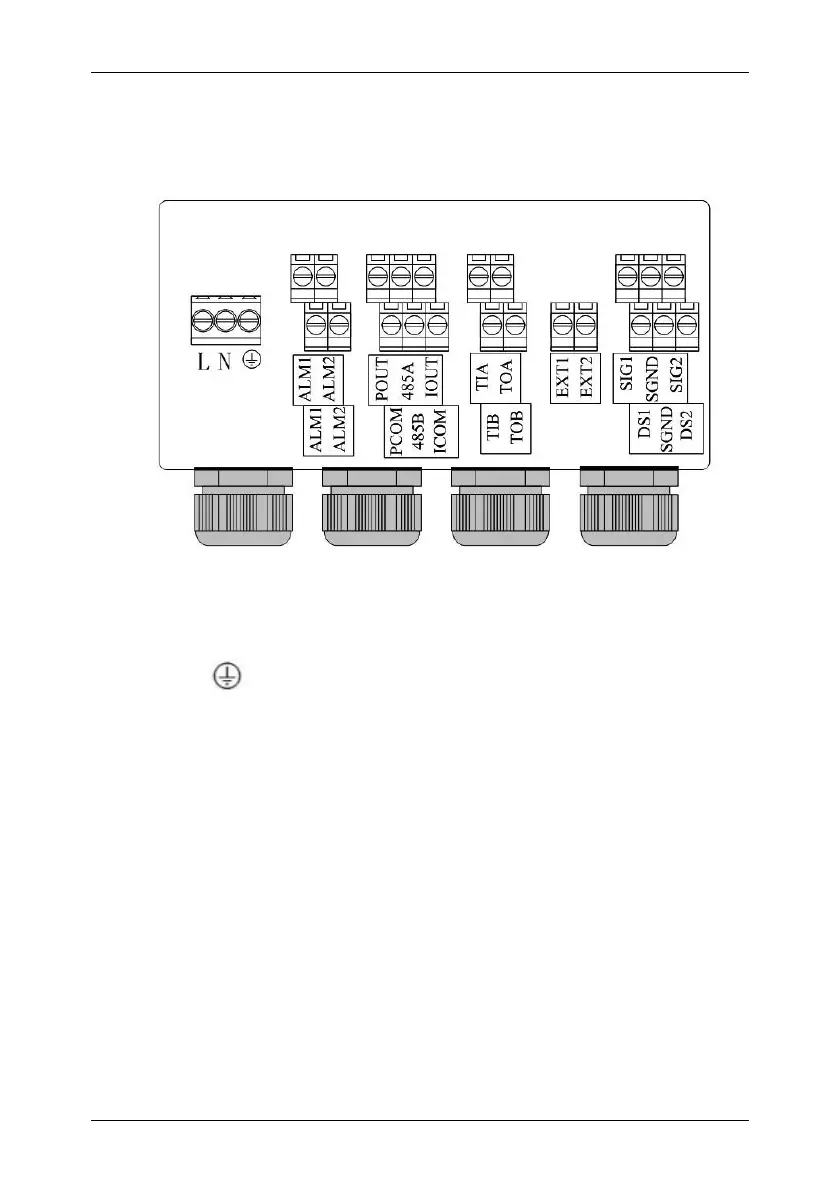

Wiring
introduction
(1)
Remote
type
Figure
5
L,
N:
100-240V
AC
power
supply
:
Ground
ALM1
，
ALM2:
Relay
out
POUT
，
PCOM:
Pulse/Frequency
output
485A
，
485B:
RS485
communication
IOUT
，
ICOM:
4-20mA
output
EXT1
，
EXT2:
Excitation
signal
SIG1
，
SIG2
，
SGND:
Electrode
signal
DS1
，
DS2:
Electrode
shield
13
15
