Chapter 3 Installation
www.supmea.com

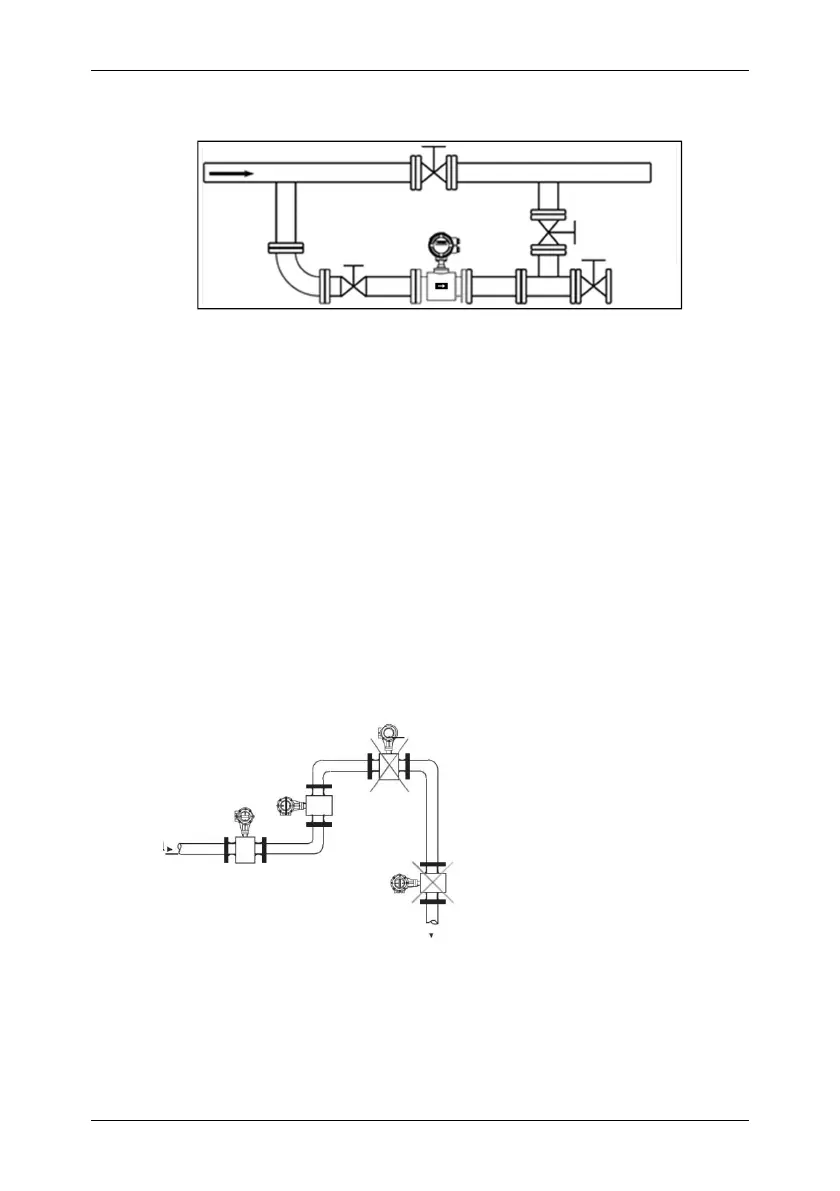

Figure 10
3.5. Installation conditions
(1) Flow direction
The flowmeter can be set to automatically detect the positive and negative flow
direction. The flow direction arrow on the sensor casing indicates the positive flow
direction specified by the manufacturer. Generally, when installing the meter, the
user shall make the flow arrow consistent with the on-site process flow.
Figure 11 shows the preferred location for installing the electromagnetic flowmeter.
Figure 11
(2) Installation direction of electromagnetic flowmeter and sensor electrodes
The sensor allows horizontal and vertical installation. When it’s installed
The pipe is routed to the highest
point (Bubble accumulation in the
measuring tube is likely to cause
produce measurement errors!)
It is easy to cause a non-full tube
measurement error!
