Chapter 7 Display Functions
7.1. System Information
Flowmeter itself has the self-diagnosis function, in addition to the power supply and
circuit board hardware failures; it can correctly provide the corresponding alarm
message to the fault in general application.

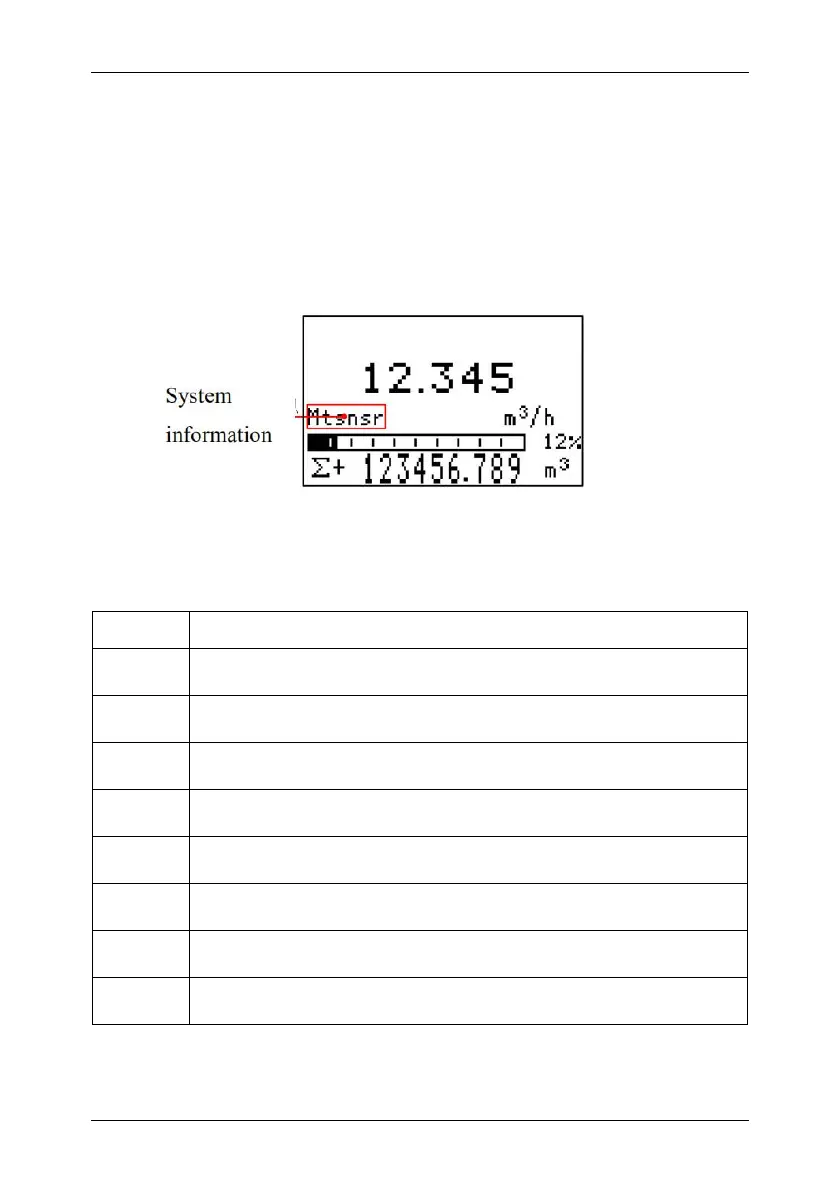

Figure 35 Display Position in Measuring Picture
System Information Sheet
Display
Alarm content
Mtsnsr
Sensor empty pipe
Hi
The current real-time flow rate exceeds the setting flow limit
Lo
The current real-time flow rate is below the setting flow lower limit
Pls
The pulse output frequency exceeds the setting frequency upper limit
AD_Hi
Sensor signal is greater than the AD sampling of the upper limit
Rng
The current real-time flow rate exceeds the setting flow limit
Rng_Hi
The current real-time flow rate exceeds systemAD sampling limit
Pls_Hi
The range scope set by user exceeds the upper limit of pulse output.
