Chapter
6
Operation
www
.supmea.com
-32-
7
1
3
6
2
4
Chapter
6
Operation
6.1.
Display
and
operating
elements

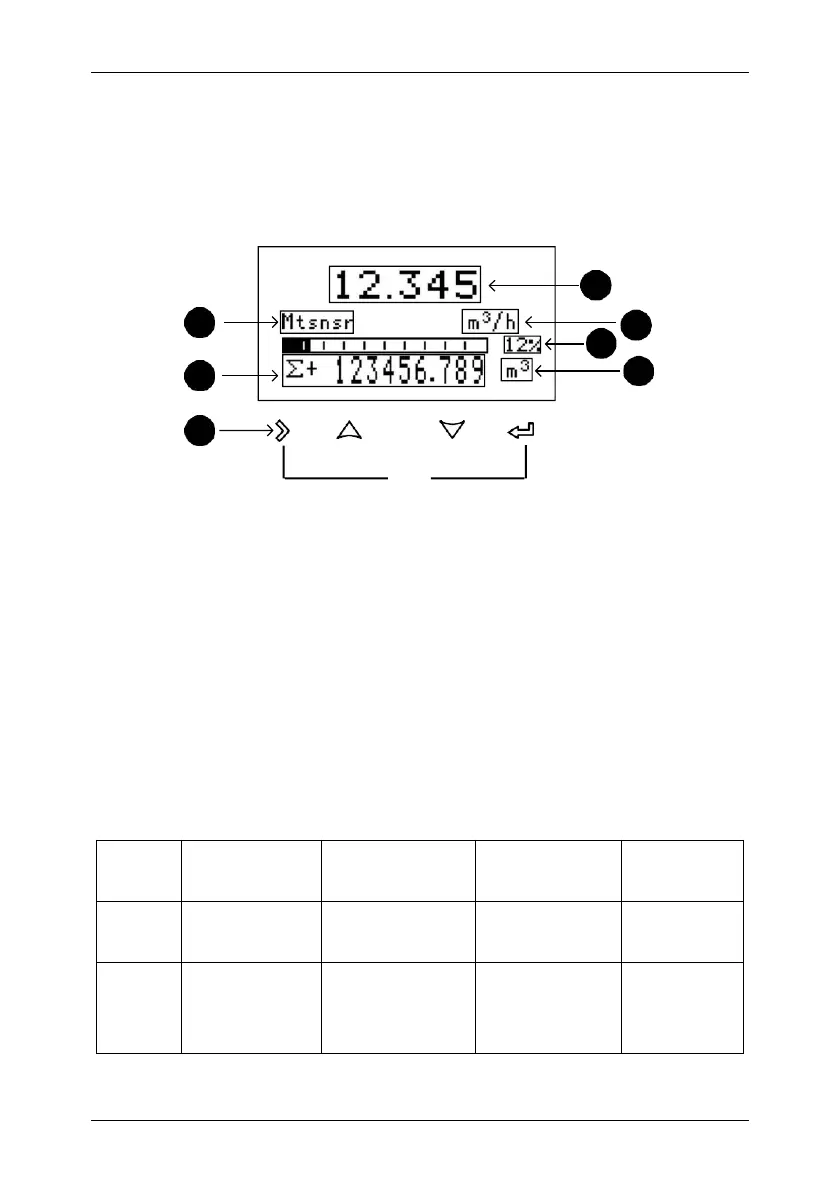

Figure
26
(1)
Real-time
flow
(2)
Real-time
flow
unit
(3)
Real-time
flow
in
percent
of
flow
(4)
Accumulation
flow
unit
(5)
System
alarm
information
(6)
Cumulative
amount
and
so
on
Display
information[∑+:
Positive
flow
ac
cumulation,
∑-:
Negative
flow
accumulation,
Σ:
Net
flow
accumulation,
V:
current
flow
rate,
MT
:
Current
conductivity]
(7)
Operation
keys:
mechanical
/
photoelectric
keys
Mark
Measuring
mode
Menu
mode
Function
mode
Data
mode
>
-
Switch
menu
categories
-
Data
right
shift
↲
Switch
accumulative
amount
Switch
menu
subclass
Confirmation
Confirm
data
Set
5
36
38
Table of Contents
Default Chapter
3
Table of Contents
3
Chapter 1 Safety Instructions
6
Manufacturer's Safety Instructions
6
Copyright and Data Protection
6
Exemption Clause
6
Product Liability and Warranty
7
Document Details
7
Display Convention
8
Safety Instructions for Operators
8
Chapter 2 Introduction
9
Scope of Delivery
9
Measuring Principle
11
Mechanical Construction
12
Application Introduction
13
Wiring Introduction
14
Nameplate
16
Chapter 3 Installation
17
Installation Tips
17
Storage
17
Pipeline Design
17
Pipe Design
17
Installation Conditions
20
Mechanical Installation
24
Installation of Flowmeter Pipeline
24
Precautions
25
Installation of Flowmeter
27
Dimensions for Electromagnetic Flowmeter
28
Chapter 4 Electrical Connection
30
Safety Tips
30
Connect Signal and Magnetic Field Current Cable
30
Potential Equalization
32
Power Supply
32
Output Termination
34
Chapter 5 Start up
36
Power on
36
Converter Start up
36
Chapter 6 Operation
37
Display and Operating Elements
37
Display (Operation Mode)
38
Display Button Operation Instructions
39
Quick Setup Menu
39
Configuration Details
40
Brief Operating Instruction and Function
51
Parameter Selection and Adjustment
51
Display Measurement
52
Flow Setup and Analog Output Menu
53
Pulse Output and Total Set Menu
54
Relay out Setup Menu
54
System Function, Empty Pipe Function, Sensor Function, Test Function Setup Menu
55
Chapter 7 Display Functions
56
System Information
56
Pulse/Frequency/Current Output
57
Pulse Equivalent Output
57
Frequency Output
58
Current Output
58
Communication
58
Registered Address
59
Communication Configuration
60
Readoutreal-Time Quantity Floating-Point Communications Example:55
60
Chapter 8 Technical Parameters
61
Technical Parameters
61
Electrode Selection and Specification
64
Flowmeter
65
Flow and Velocity Parallel Table for Electromagnetic Flowmeter
66
Accuracy
67
Chapter 9 Plug-In Type Electromagnetic Flowmeter Series
68
The Functional Use and Scope of Application of the Product
68
Product Form and Composition
69
Main Technical Specification
69
Structure
70
