Chapter 3 Installation
www.supmea.com
(4) Maintenance space
For the convenience of installation and maintenance, enough installation space
shall be reserved around the electromagnetic flowmeter.
(5) For pipes that do not allow flow disruption in the process
When installing the electromagnetic flowmeter, bypass pipes and cleaning ports
shall be added. As shown in Figure 10, these devices can ensure the
continuous operation of equipment system when the flowmeter is out of service.
(6) Support of electromagnetic flowmeter
Do not install the electromagnetic flowmeter on a free-vibrating pipe without
any support. Instead, a mounting base shall be used to secure the measuring
tube. When the electromagnetic flowmeter is required to be installed
underground, the pipes at both inlet and outlet ends shall be provided with
support items, and a metal protection plate shall be installed above the
flowmeter.

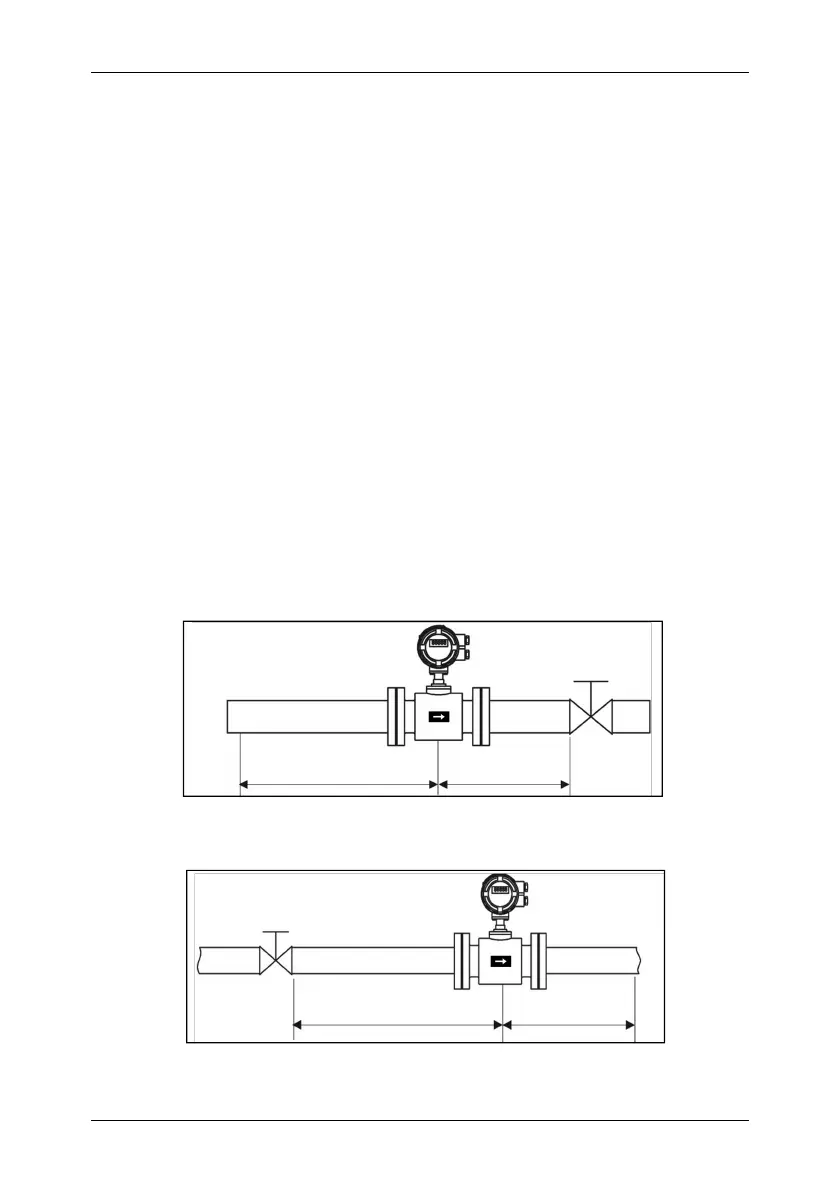

Figure 8
Figure 9
