Supmeter BST106-B60S(L) - 3 Operation Interface; Operation Interface Diagram

5
 1 Optional&Definable Analog Signal Output [AO: 4~20mA / 0~20mA / 0~5V / 0~10V / …],
Non-linearity: 0.05%FS.
 Digital Communication Interface
 COM1: Optional RS232.
 COM2: Optional RS485.
 Connectable: Host IPC/PLC and LED Remote Display.
 Operating Specification
 Operating Voltage: DC24V±20%.
 Max. Power Consumption: 5W.
 Outline Size: 107×60×1 00mm [W×H×D].
 Panel Cut-out Size: 94×47mm [W×H].
 Operating Temperature: -25℃ to +45℃.
 Storage Temperature: -30℃ to +60℃.
 Relative Humidity: Max. 85%RH.
 Protection Level of Front Panel: IP65.
 Weight: Approx. 0.3kg.
3. Operation Interface

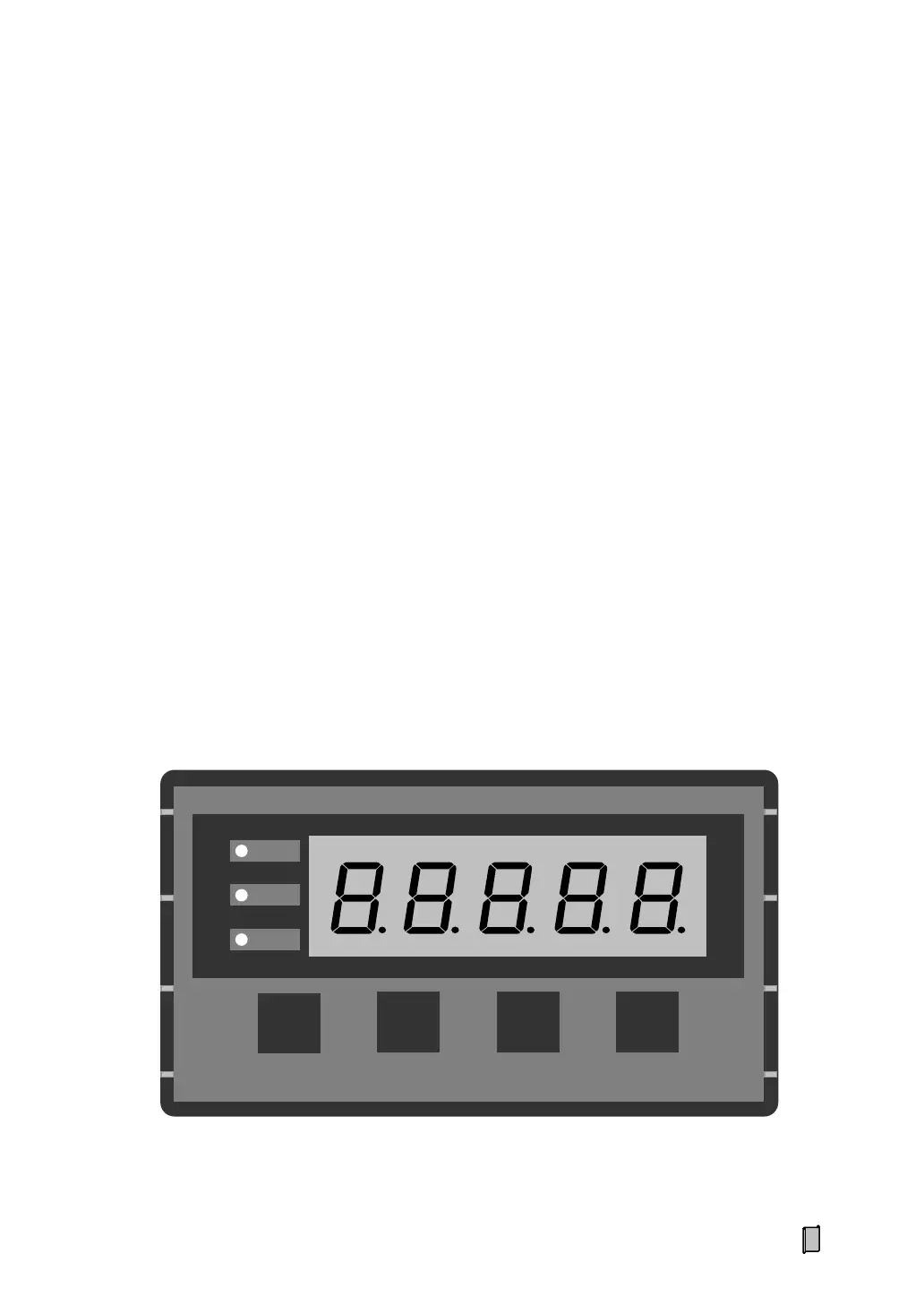

3.1 Operation Interface Diagram
AH
AL
NET
■
►
▲

