1.5 ELECTRICAL CONNECTION
1.5.1 ELECTRICAL WIRE OF THE EDGER
>Power plug must be grounded. When assembling, outer cover must be grounded.

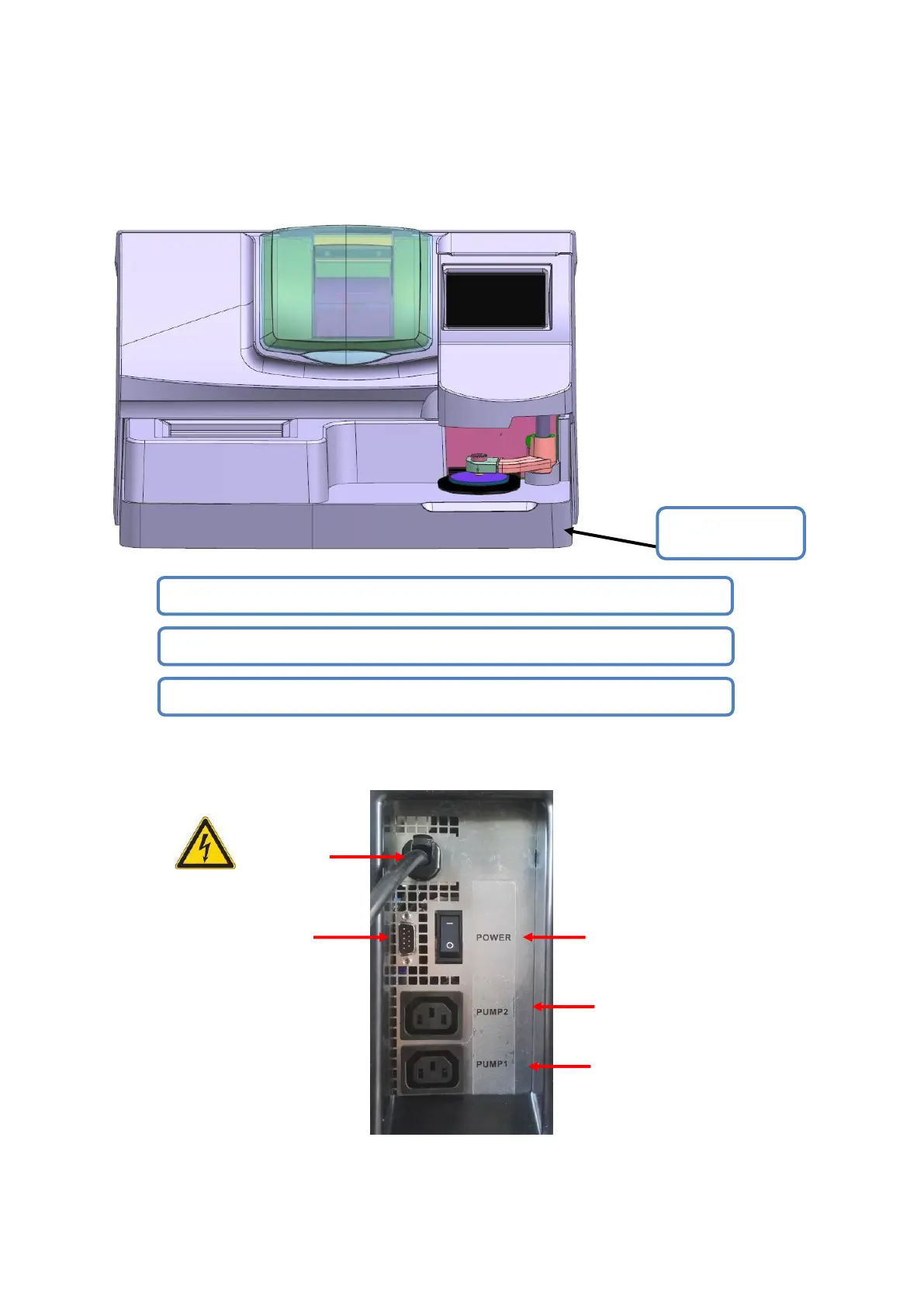

When connecting edger with its supporting equipment, please follow below figure:
Power switch
#1 Checking if power of machine is off, power should be cut.
开。
#2 Connect scanner to RS232 port
#3Please plug in power and plug of water pump or magnetic valve.
Power line
Front water
Pump/magnetic valve
Back water
Pump/magnetic valve
Outer cover ground
wire
RS232 port
