3.3.4 PROCESSING RANGE
> Lens
Diameter：Unprocessed lenses, with a diameter of 80mm and 10mm offset, that is to say, the
maximum diameter of 100mm without offset lenses.
Thickness：
maximum thickness of resin lens：18mm
maximum thickness of glass lenses：16mm
Lens minimum center thickness：1.2mm
Completed rough lens, the maximum thickness of the flat side：11mm
Completed rough lens, the maximum thickness of the edge of the glass：15mm
Completed rough lens, the maximum thickness of the resin tip：15mm
> Shape
The minimum height of the flat：19.00mm
The minimum height of bevel：19.00mm

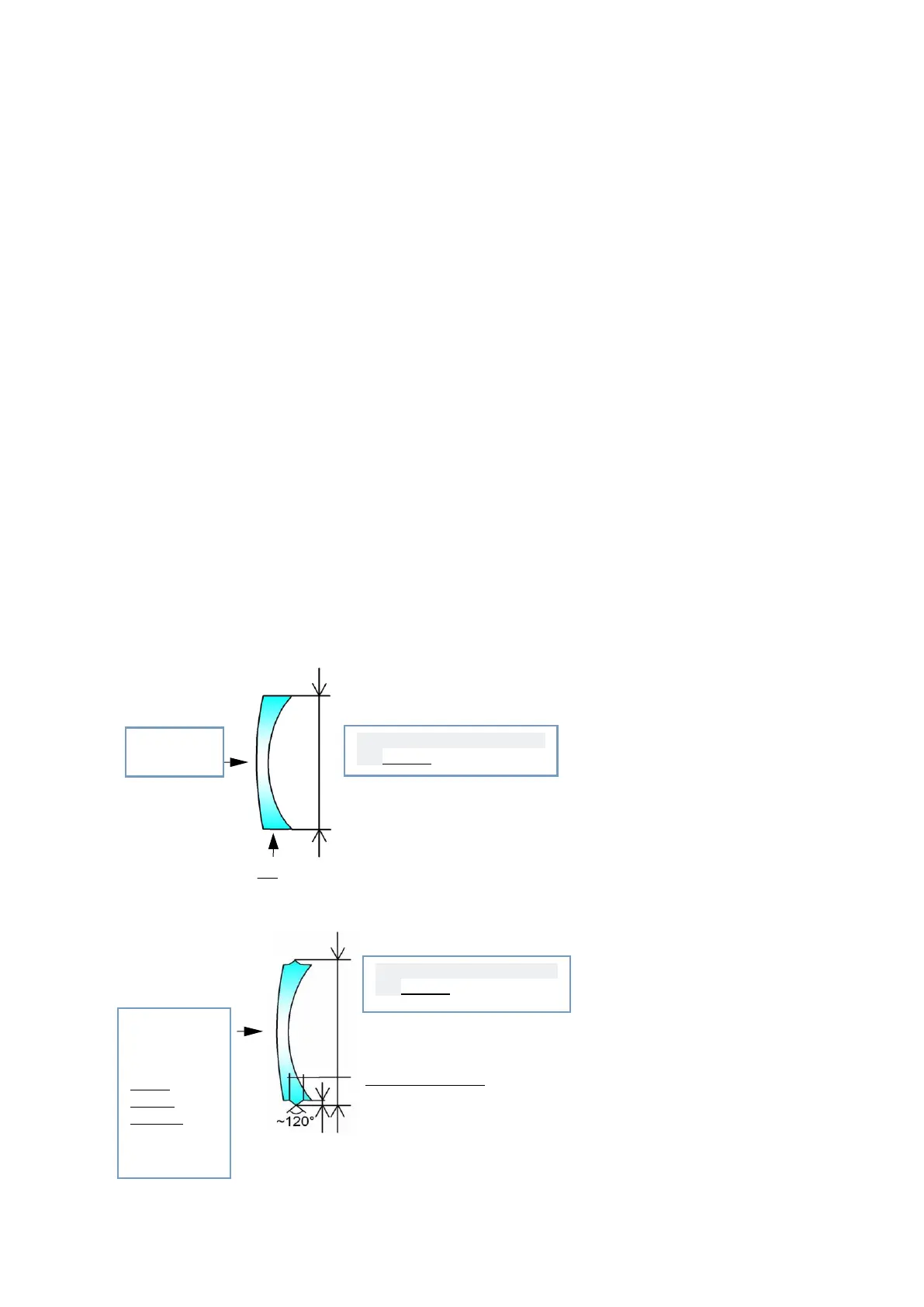

> Machining range diagram
>> Flat lens
>>Bevel lens
Bevel width=2.8mm
Flat
Front
surface
Minimum height of finished
lens=19mm
Front surface
Bevel
Height
=0.8mm
Minimum height of finished
lens=19mm
