8 Installation

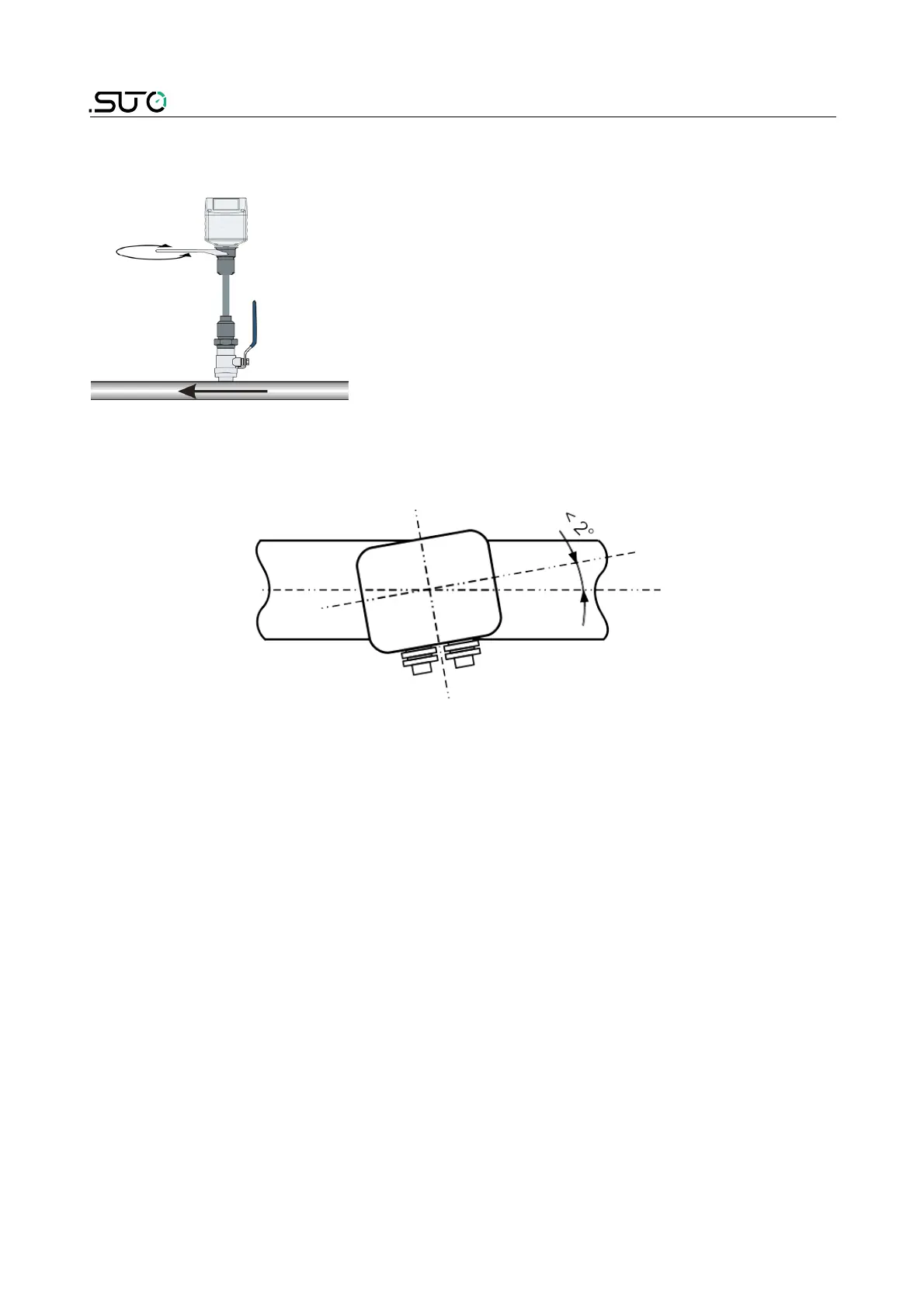

9. Use the alignment key to keep the sensor
align to the pipe and point to the flow direction.
See the figure on the left.
Remark: The angle deviation must be less than
± 2° to the perfect position, as shown in Figure
1.
10. Tighten the clamp sleeve using a spanner
with clamping torque of 20...30 Nm.
11. Double check the installation depth because
the shaft might be moved from its original
position by the compressed gas.
Maximum angle deviation of a proper installation:
