NICE3000 User Manual Function parameter description
113
F3-05
Deceleration Default 0.600m/s
2
Min. Unit 0.001m/s
2
Setting Range 0.2002.000m/s
2
F3-06
Inexion slow-down time 1 Default 2.500s Min. Unit 0.001s
Setting Range 0.3004.000s
F3-07
Inexion slow-down time 2 Default 2.500s Min. Unit 0.001s
Setting Range 0.3004.l000s
The three function codes decide the S curve parameters of lift slow-down running:
F3-05 is deceleration of S curve of lift slow-down running.
F3-06 is the t
ime which is taken from the change of deceleration from F3-05 to 0 in the S curve
slow-down stage. The bigger this parameter is, the atter the curve inexion is.
F3-07 is the time which is taken from the change of deceleration from 0 to that of F3-05 in the S
curve slow-down stage. The bigger this parameter is, the atter the curve inexion is.
The setting of S curve is as follows:

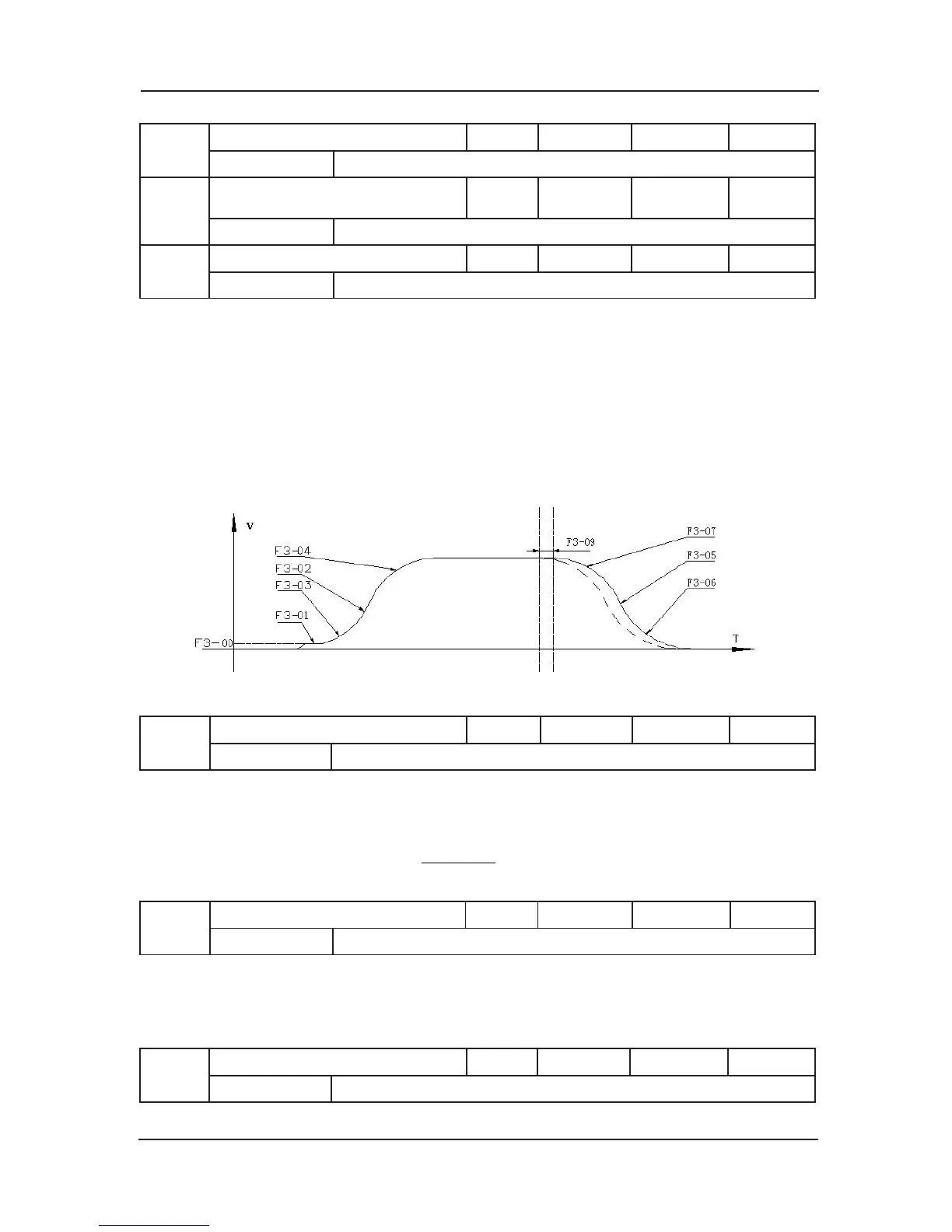

Fig 6-4 Speed Curve Chart
F3-08
Special deceleration Default 0.900m/s
2
Min. Unit 0.001m/s
2
Setting Range 0.500
2.000m/s
2
This parameter sets the deceleration of the lift forced reducer, shaft auto-tuning and
maintenance. If pulse numbers are far different from the budget numbers as lift force reducer
acting, lift speed-down to 0.1m/s by special deceleration and travel to leveling position.
The setting of this parameter is: F3-08
13)F 3 2
03)(F0
2
×
, adjust according to the actual situation.
F3-09
Pre-distance of stop Default 0.0mm Min. Unit 0.1mm
Setting Range 0
90.0mm
It means the advanced distance of lift distance control when the lift is slow-down. It is used
to clear up the inuence of coder signal missing or leveling signal delaying. Generally users
dont change it.
F3-10
Re-leveling speed Default 0.040m/s Min. Unit 0.001m/s
Setting Range 0.000
0.050m/s
