Direction for installation and using 2)
The floor addresses setting and installation mode, input and output definition, and plug
definition are all the same with MCTC-HCB-F; there are only V1, V2 and V3 three dot-matrixes
in the dot-matrix displaying of MCTC-HCB-H, without V4 comparing with MCTC-HCB-F. Others
are all the same with MCTC-HCB-F. Details are listed in section 9.3.2.
3.3.5 MCTC-HCB-I
MC
TC-HCB-I is a vertical oor unit display board (thickness only 15mm).

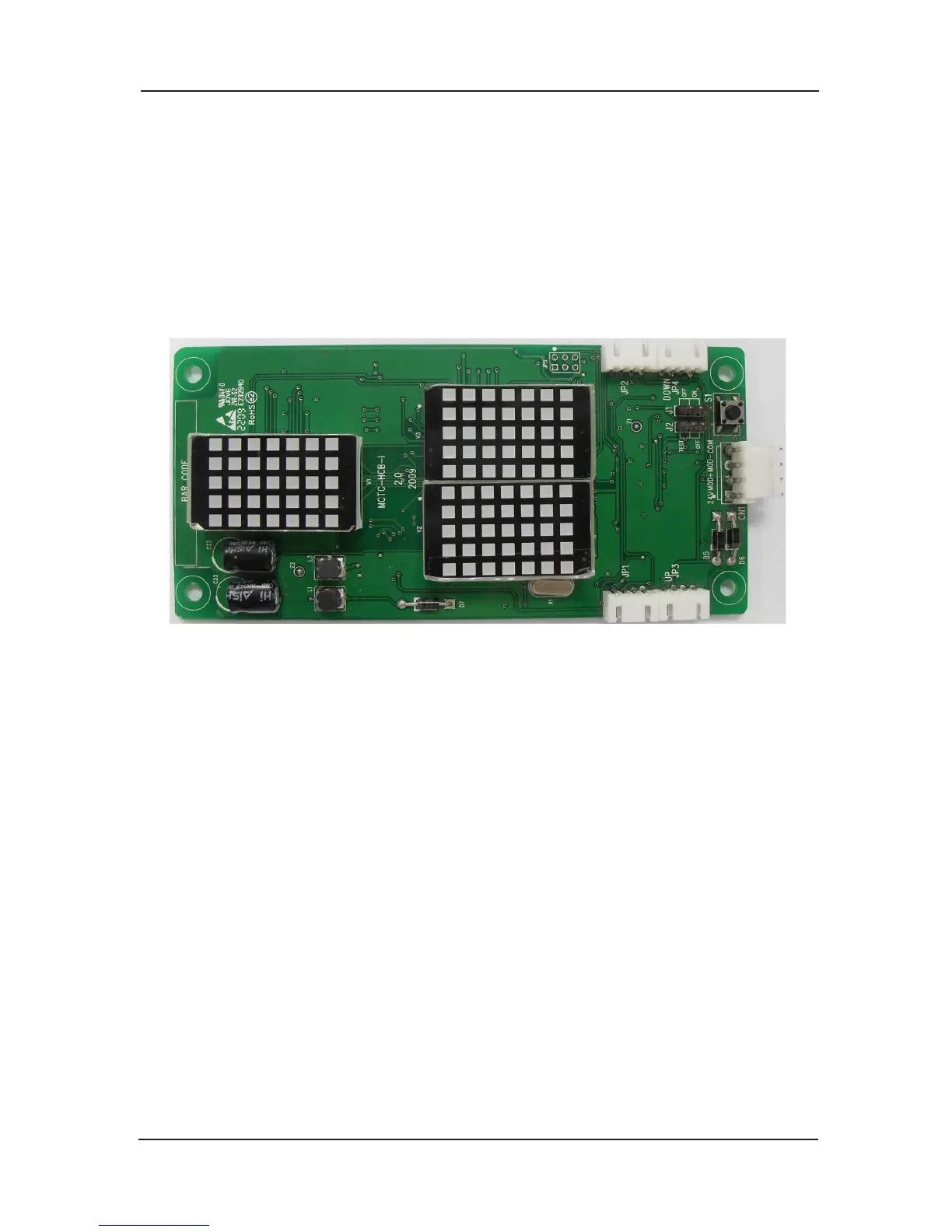

Object photo 1)
Fig 3-16 MCTC-HCB-I photo
