Structure of the control system and the component introduction NICE3000 User Manual
48
Size 2)
R2.5mm
70mm
V1
56mm
D1
JP3
JP4
CN1
JP1
JP2
144mm
134mm
V2
MCTC-HCB-I
S1
V3

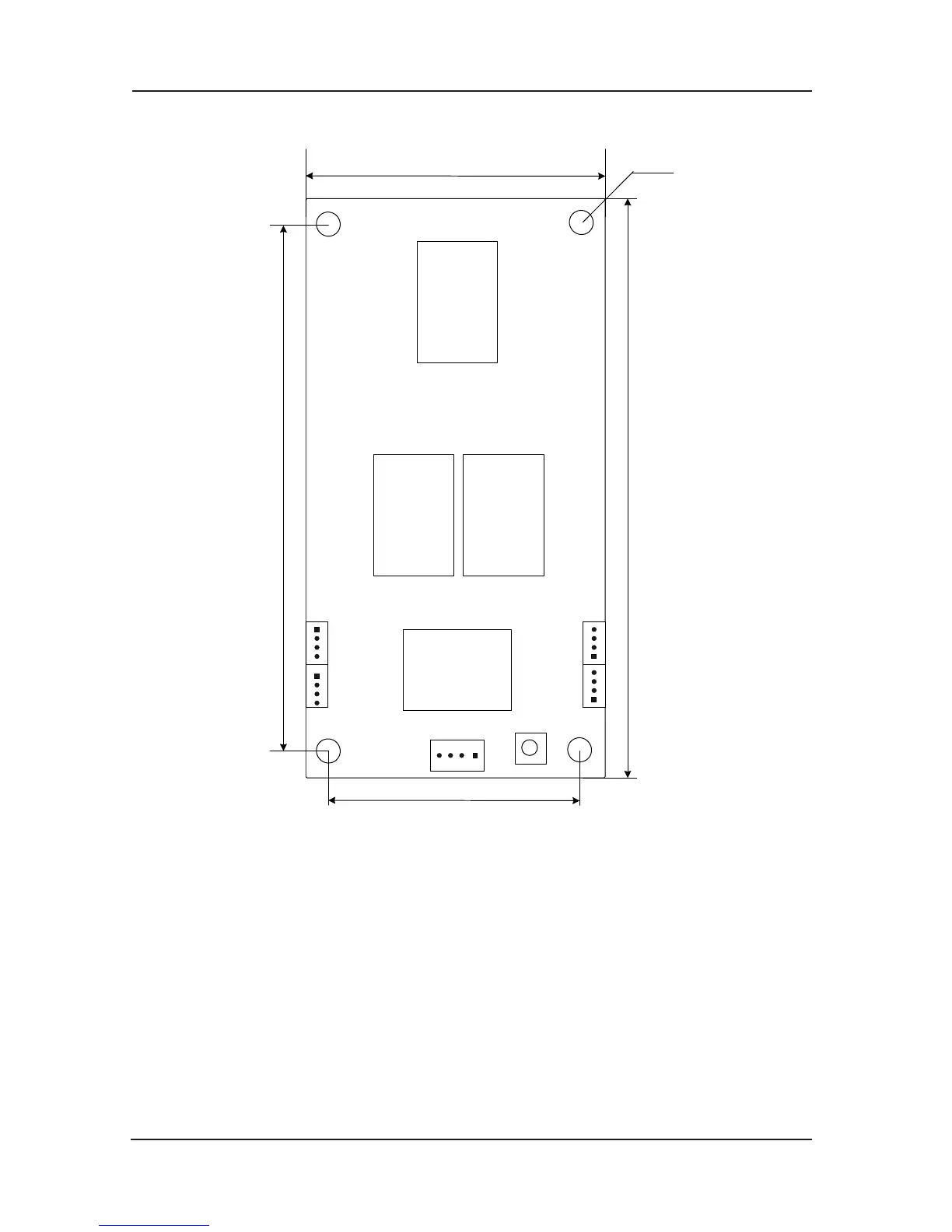

Fig 3-17 MCTC-HCB-I install size
Function introduction 3)
This is the slim type design of MCTC-HCB-H, and with the same function as MCTC-HCB-H.
The high light red dot-matrix, a 5*7 dot-matrix display the run direction, two 5*7 dot-matrix
display the high and low bit of oor information respectively.
Output function:

4 output points, namely the up button light output, down button light output, up
arrival light
output and down arrival light output.
Input function:

4 input points, namely the lift-locked input, fire-control input, up call input and down call input.
