Size 2)
146*70*10（mm）

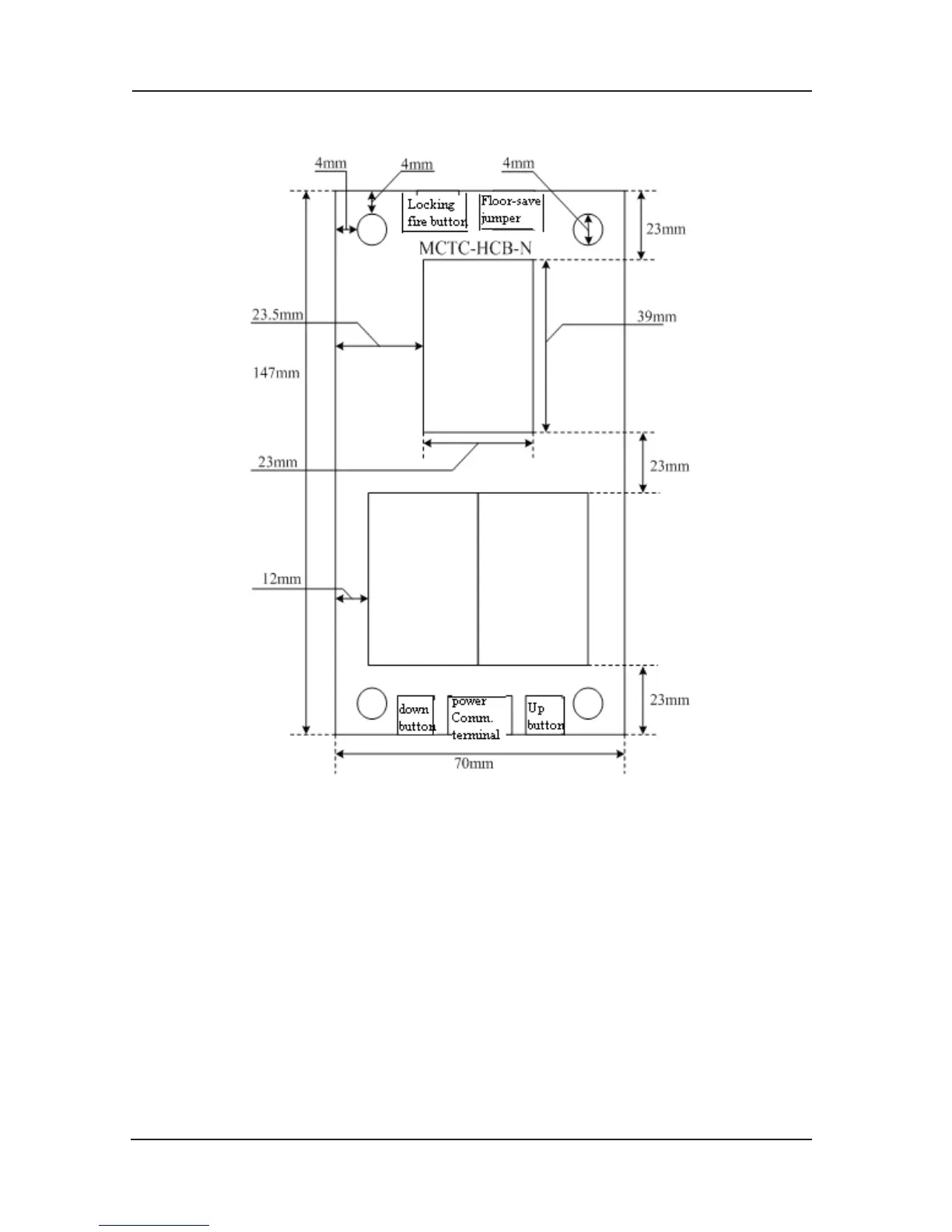

Fig 3-186 MCTC-HCB-N install size
Function specification 3)
Identify the oor storing by a jumper J1, When the J1 is short circuit, the call buttons JP2 and
JP3 were changed to be the AS buttons which used to modify the store oor; the jumper has
the call function only when it is not short circuit. Unfix the jumper hat to store the oor and no
need for the lighting piece display. The
Inspection and Full state are all display on the dot-
matrix.. JP1 lift-locked and fire-control signal input.
