NICE3000 User Manual Structure of the control system and the component introduction
65
Technical parameters of weighing sensor
size
Diameter 24mm
Height 87mm
Users can choose to equip weighing board (MCTC-LDB-A) for providing the system with the
signals of light load, full -load and over-load and complete to compensate analog weight, in
order to improve stability of lift running.
Installation Mode:
Its recommended to be installed into the bottom of the car.

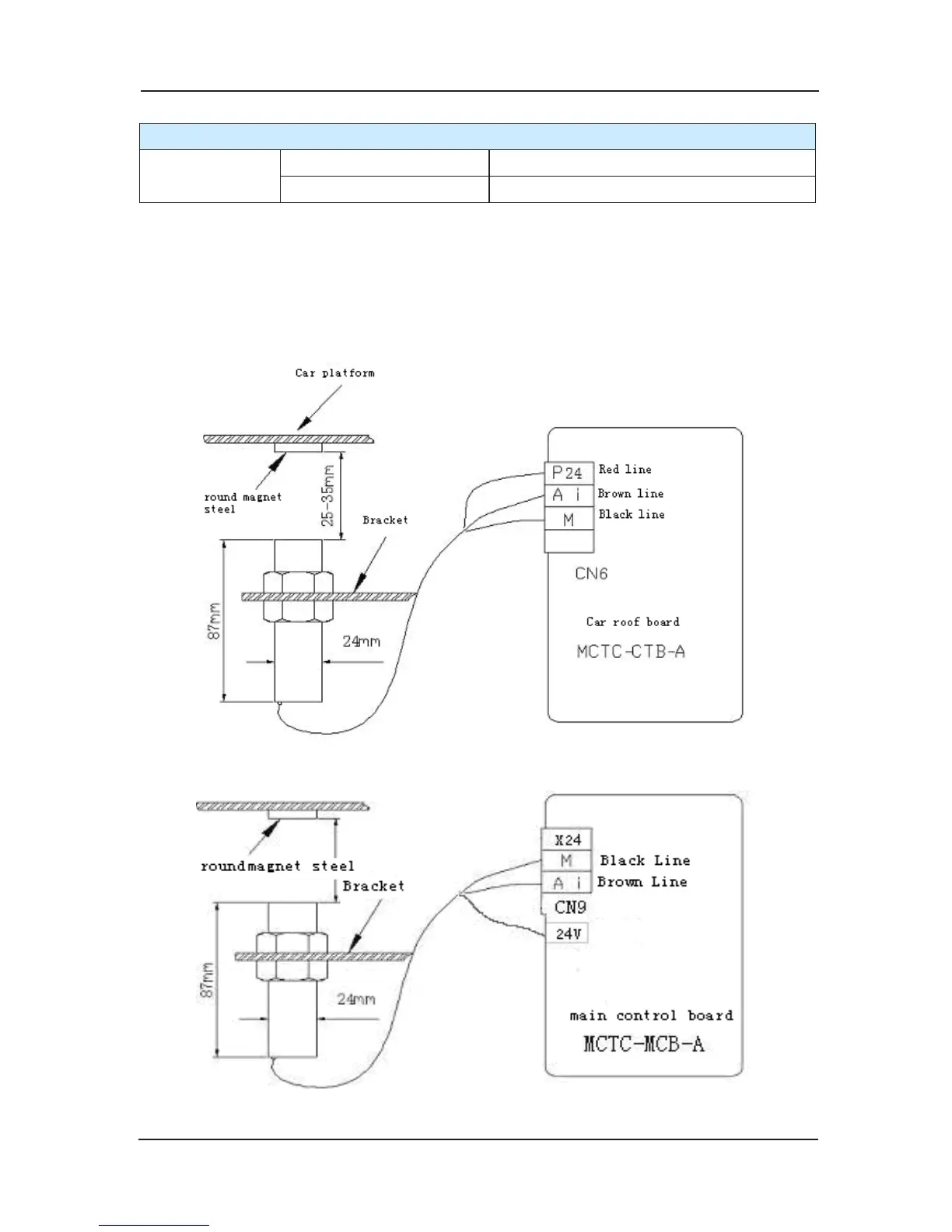

Fig 3-35
Installation sketch of weighing transducer (Transducer connected to the car top board)
Fig 3-36
Installation sketch of weighing transducer (Transducer connected to the main control board)
