Structure of the control system and the component introduction NICE3000 User Manual
66
Attention items:
The installation position should be close to the middle of the car cage as possible as it can.
The square porcelain steel with pasted paper is the working surface, and it should be opposite
to the transducer.
If theres no voltage outputting after installation, please try to change the polarity of the square
porcelain steel.

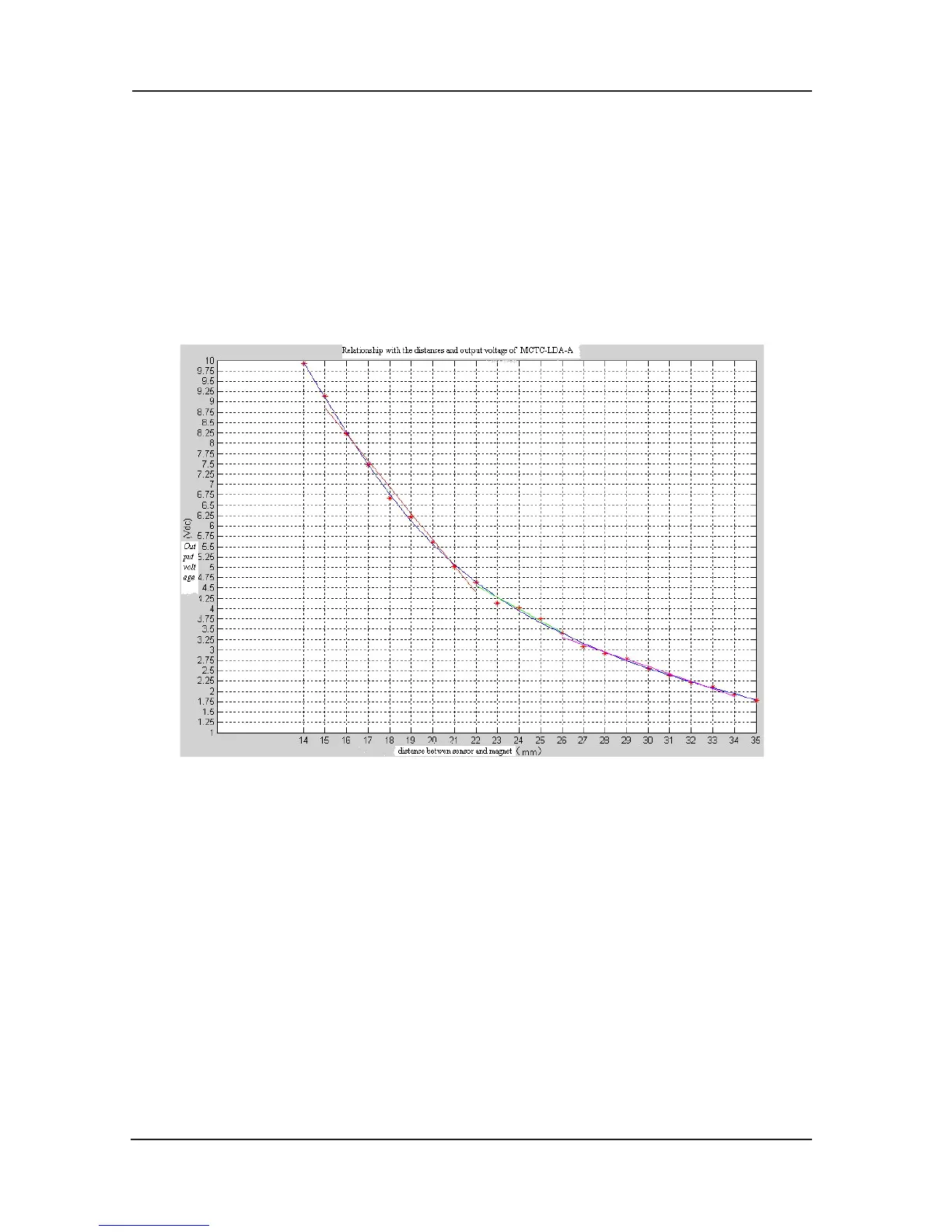

3.7.1 The relationship chart between the distance (mm) from
top of the weighing transducer to
the square porcelain steel and transducers outputting voltage (V):
Fig 3-37 Weighing sensors outputting voltage
User can choose the best install distance according to the car cages compression
deformation from no load to full load and choose the maximum distance from it.
For example: If one customers compression deformation is 5mm, the user can analyze
according to chart9-7-3: ①、If the distance of no load is 21mm, and the sensors outputting
voltage is 5.25V, wh
en the distance of full load is 16mm, sensors outputting voltage will be
8.25V, and the change of the voltage from no load to full load is 3V. ②、If the distance of no
load is 35mm, and the sensors outputting voltage is 1.75V, when the distance of full load is
30mm, sensors outputting voltage will be 2.5V, and the change of the voltage from no load to
full load is 0.75V. Through the analysis of
and we can conclude that the resolution ration
of is 4 times than that of . Obviously the higher resolution ration is, the better it will be.
