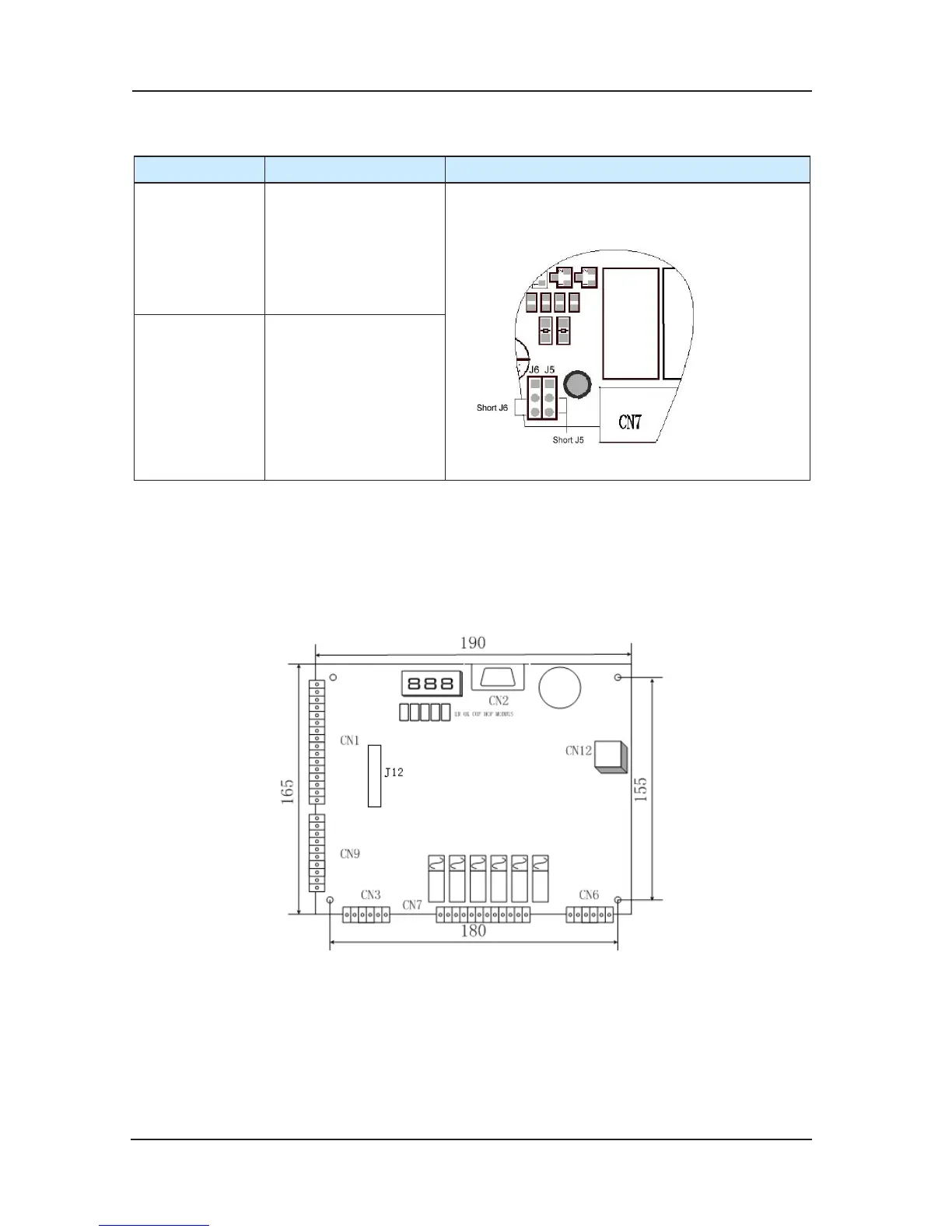

jumper J5、J6 instruction (Except for VER A, VER B, VER C)h)
Terminal Name Instruction
JP5
CAN communication
matching resistance
jumper
Short J5,
inner calling communication circuit will be
connected with internal resistance
Short J6, outer calling communication circuit will be
connected with internal resistance.
J6
Outer calling matching
resistance jumper
MCTC-MCB-B main control board electric wiring instruction3)
MCTC-MCB-B has all the function of MCTC-MCB-A and changes on the hardware’s structure.
Meanwhile it adds one slot J12 with 28 holes to match the use of PG card PG-D and PG-E. The
specific instruction will be in
troduced in PG-D and PG-E.
Main control board installation size:a)
Chart 4-6 Main control board installation size of MCTC-MCB-B
The main control board’s indicator, terminal interface, and use of MCTC-MCB-B is the same
with that of MCTC-MCB-A and can refer to the instruction book of MCTC-MCB-A.
MCTC-MCB-B is the advanced product of MCTC-MCB-A and will replace it.
