NICE3000 User Manual Installation and wiring
79
84
75
43 55
J1 CN1
MCTC-PG-E
D11 D8

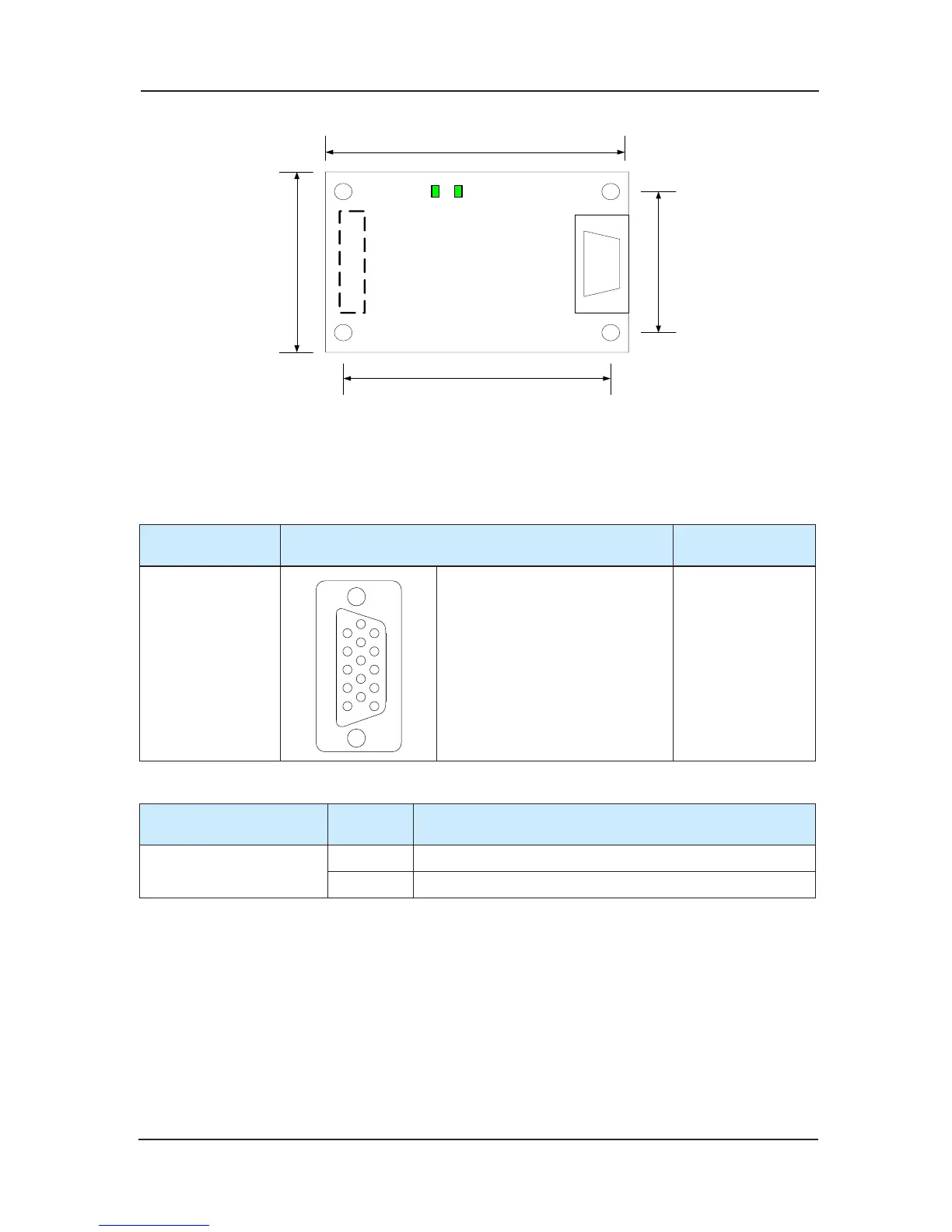

Fig 4-10 MCTC-PG-E appearance and size
MCTC-PG-E wiring instruction

The CN1 terminal of MCTC-PG-E is connected with SIN/COS encoder with Type D 15 pins
(DB15) connector. The meaning of each pin of the connector is as follows:
Type of PG trans-
connection card
The meaning of DB15’s each pin Suitable encoder
MCTC-PG-E
1
6
5
10
15
11
1：B- 2：NC 3：Z+
4：Z- 5：A+ 6：A-
7：COM 8：B+ 9：VCC
10：C+ 11：C- 12：D+
13：D- 14：NC 15：NC
SIN/COS encoder
Instruction of MCTC-PG-E indicator:

Type of PG trans-
connection card
Number Function description
MCTC-PG-E
D8 B+/B-Differential signal indicator, ash while running
D11 A+/A-Differential signal indicator, ash while running
