Installation and wiring NICE3000 User Manual
78
OUT-B
OUT-A
COM
22
A+
B+
GND
W-
V-
U-
U+
V+
W+
VCC
B-
A-
接至底层驱动板
Connect to the bottom
layer of the control
board

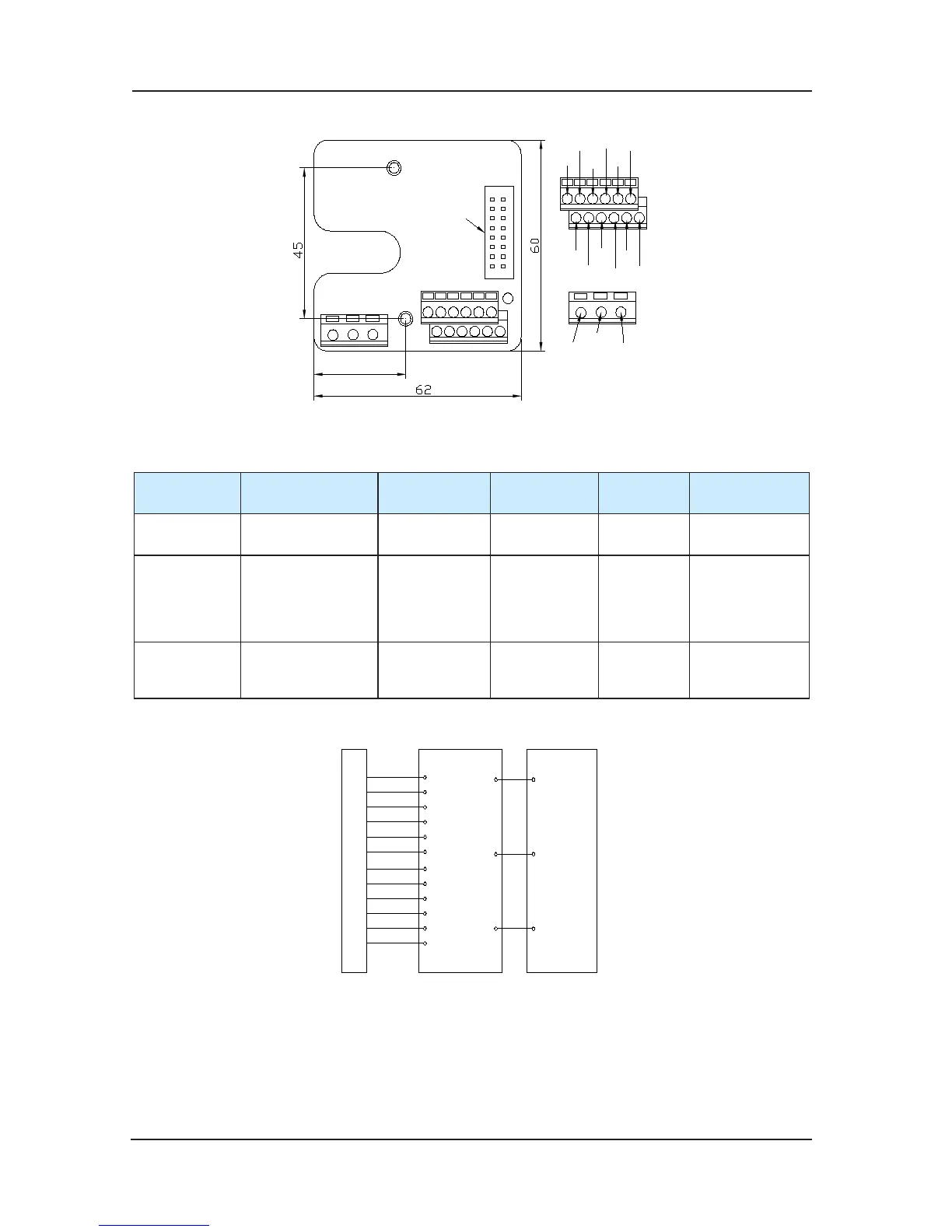

Chart 4-8 MCTC-PG-B sketch
MCTC-PG-B technique data

Function
Responding
speed
Output
impedance
Output
current
Frequency
division range
VCC，GND
Encoder power
supply
--- About 300Ω 300mA ---
A+，B+，
A-，B-，
U+，V+，
W+， U-，
V-，W-
Encoder signal
input
0～80 kHz --- --- ---
OUT-A，
OUT-B，
COM
Frequency
division output
0～80 kHz About 300Ω 100mA 1
The wiring of MCTC-PG-B and UVW encoder is shown as follows:

NICE 3000
PGA
PGB
PGM
OUT-B
OUT-A
COM
5 V +
0v
A
+
A -
B +
B -
B -
B +
A -
A +
P
G
U +
U -
V +
V -
W +
W -
U -
V +
V -
W +
W -
VCC
GND
U
+
MCTC-PG-B
Fig 4-9 MCTC-PG-B wiring
MCTC-PG-E appearance and installation

MCTC-PG-E is installed on the main control board through J1 (Two lines of 28 plugs), and
connected with SIN/COS encoder through CN1 interface. The appearance and installation size
are in the following chart4-10:
