Suzuki DF 2.5 - Igniter and Flywheel Magneto Installation

IGNITION AND ELECTRICAL 3-7

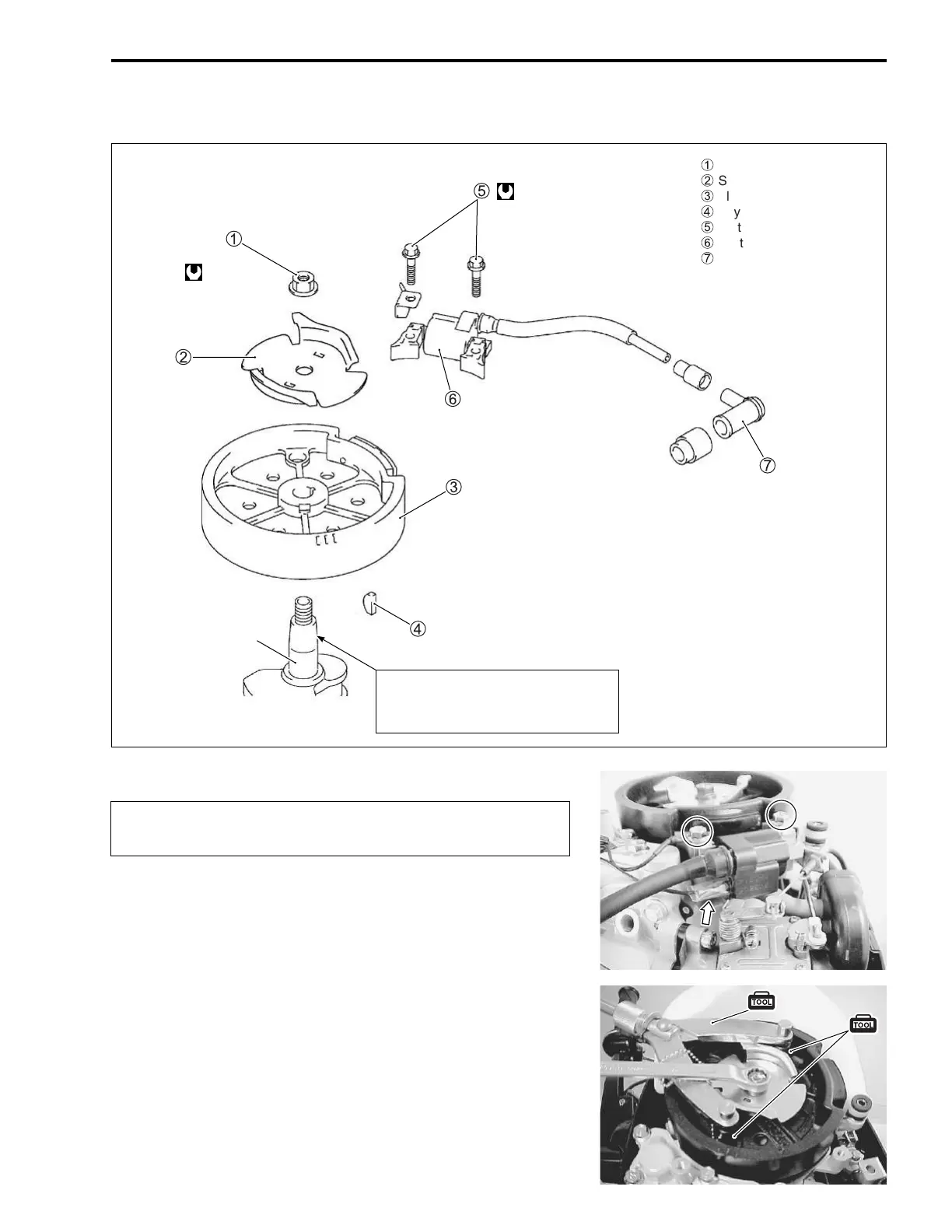

REMOVAL AND INSTALLATION
REMOVAL
1. Remove the recoil starter. (See page 5-2.)
2. Disconnect the emergency/engine stop switch lead wire
from the igniter unit.
3. Remove the two bolts securing the igniter unit.
4. Loosen the flywheel nut using the special tools.
NOTE:
Do not remove flywheel nut at this time.
This nut prevents damage to crankshaft when using flywheel
remover tools.
 09930-40113: Flywheel holder
09930-40120: Rotor holder attachment
Prior to removing the electrical parts, disconnect the
spark plug cap from the spark plug.
45 N·m
4.5 kg-m
32.5 lb-ft
Crankshaft
NOTE:
Clean the flywheel and crankshaft
mating surfaces with cleaning solvent.
 Nut (1)
Starter pulley (1)
! Flywheel magneto (1)
" Key (1)
# Bolt (2)
$ Igniter unit (1)
% Spark plug cap (1)
10 N·m (1.0 kg-m, 7.0 lb-ft)
( )
