6-4 POWER UNIT
INSTALLATION

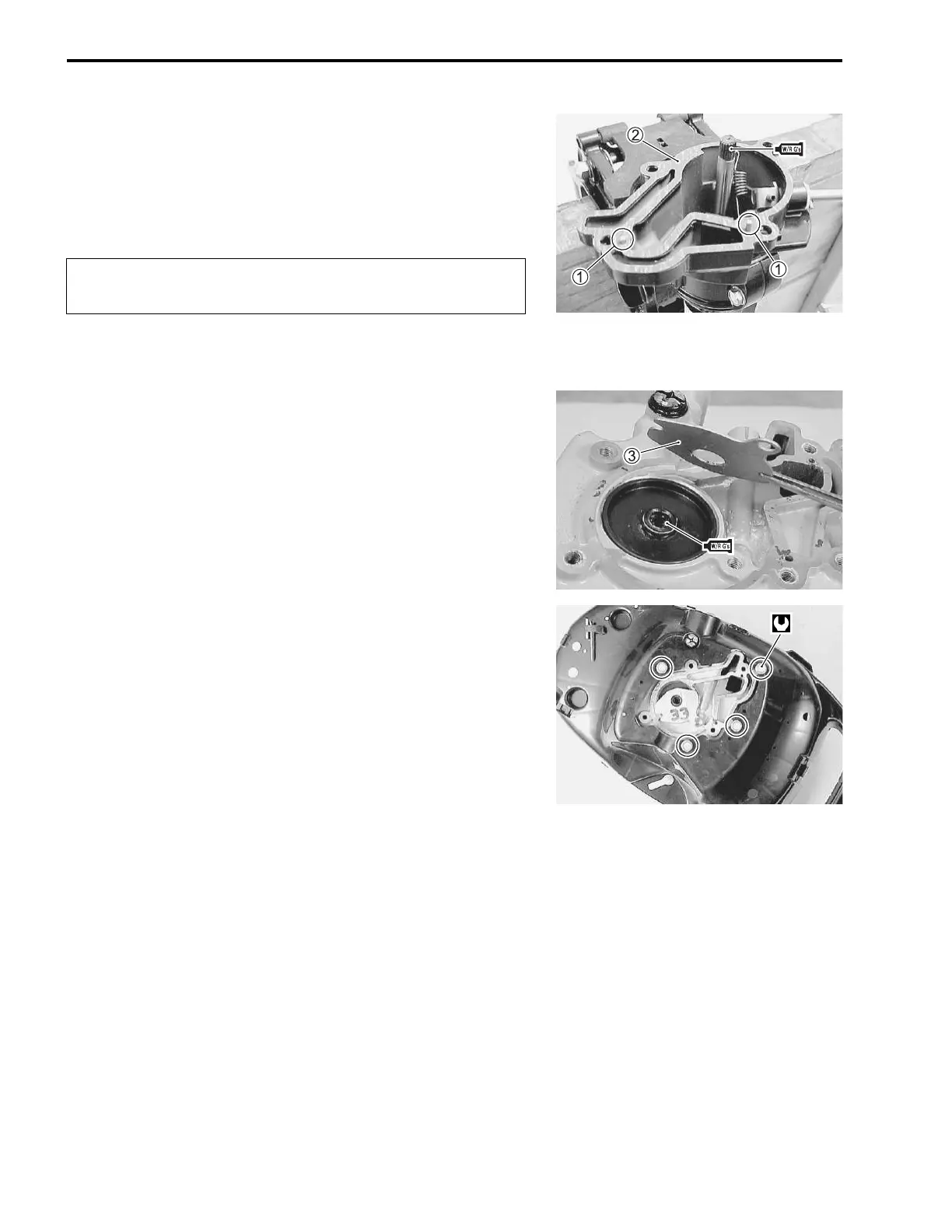

Installation is reverse order of removal with the special attention
to the following steps.
1. Install the two dowel pins 1 and gasket 2 onto the drive-
shaft housing.
2. Apply the Water Resistant Grease to the driveshaft splines.
99000-25161: SUZUKI WATER RESISTANT GREASE
3. Apply the Water Resistant Grease to the seal lips of the
driveshaft oil seal.
99000-25161: SUZUKI WATER RESISTANT GREASE
4. Install the oil seal protector 3 and tighten the bolt after
applying the Thread Lock to the bolt.
99000-32050: THREAD LOCK “1342”
5. Install the power unit to the lower cover, then tighten the four
bolts to the specified torque.
Lower cover bolt: 8 N·m (0.8 kg-m, 6.0 lb-ft)
Do not re-use the gasket once removed.
Always use new parts.
