POWER UNIT 6-5

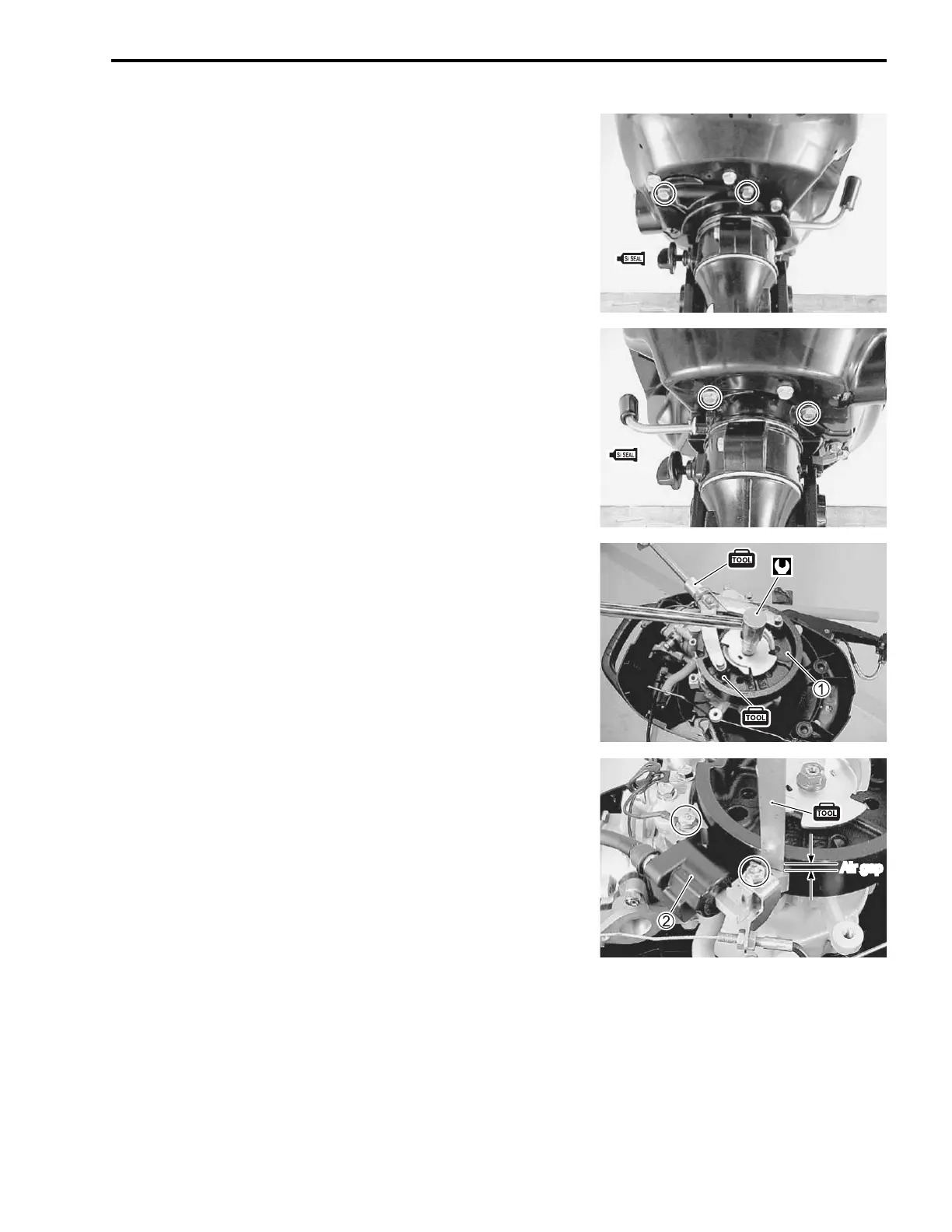

6. Install the power unit/lower cover assembly onto the drive-
shaft housing.
7. Apply the Silicone Seal to the four power unit mounting bolts
and tighten the bolts to the specified torque.
99000-31120: SUZUKI SILICONE SEAL
Power unit mounting bolt: 10 N·m (1.0 kg-m, 7.0 lb-ft)
FLYWHEEL MAGNETO
• Install the flywheel magneto and tighten the flywheel nut to
the specified torque. (See page 3-8.)
09930-40113: Flywheel holder
09930-40120: Rotor holder attachment
Flywheel nut: 45 N·m (4.5 kg-m, 32.5 lb-ft)
IGNITER UNIT
• Install the igniter unit with an air gap of 0.5 mm between the
both core ends and the flywheel. (See page 3-8.)
09900-20803: Thickness gauge
Air gap: 0.5 mm (0.02 in)
Air gap
To Next Page
