6-18 POWER UNIT
CYLINDER / PISTON / CRANKSHAFT /
CONROD / CAMSHAFT

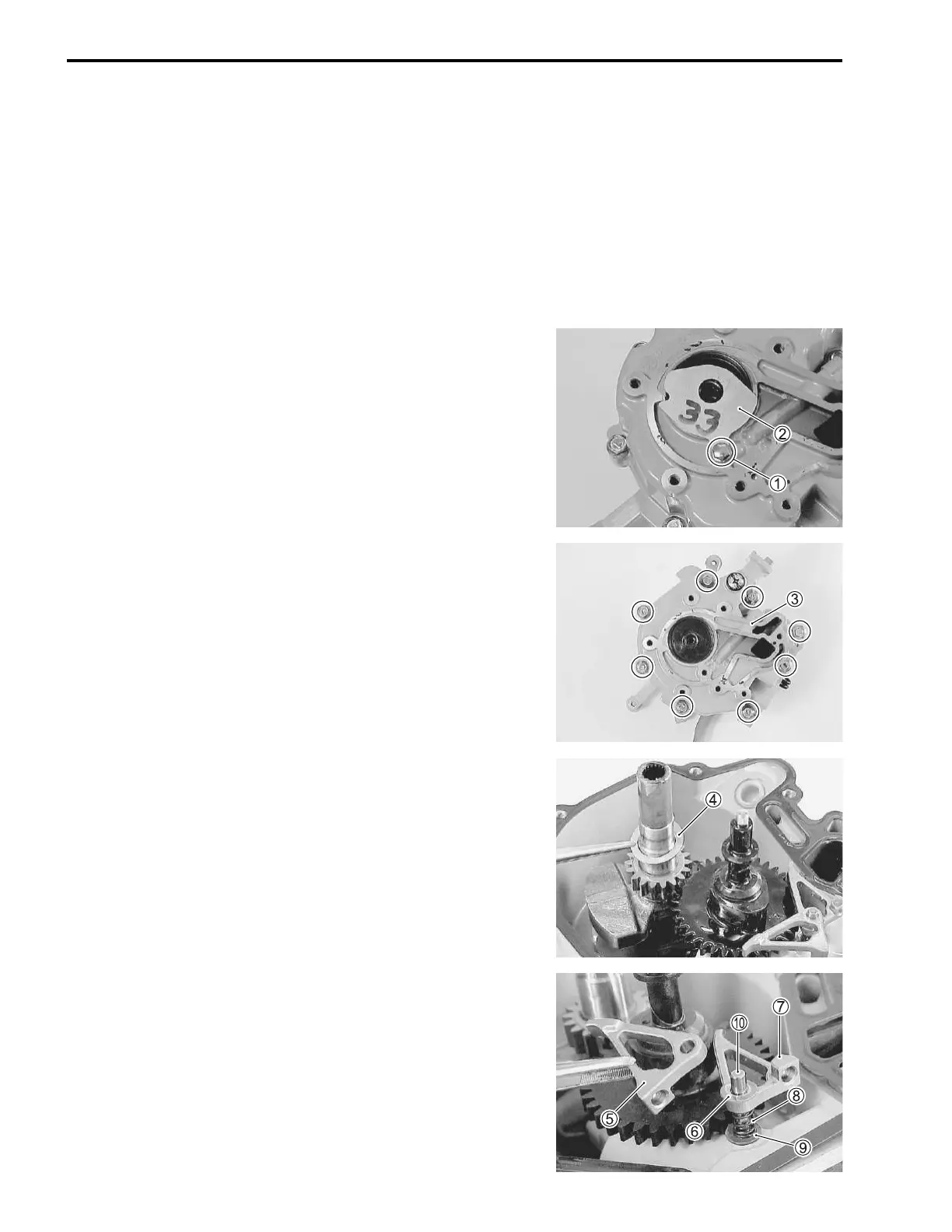

DISASSEMBLY
1. Remove the power unit. (See page 6-2.)
2. Remove the cylinder head. (See page 6-7.)
3. Remove the bolt 1 and the under oil seal plate 2.
4. Remove the eight bolts and the crankcase 3.
5. Remove the thrust washer 4.
6. Remove the cam rocker arm 5, washer 6, cam rocker arm
7, spring 8, washer 9 and shaft 0.
