Suzuki DF 2.5 Service Manual

RECOIL STARTER 5-3

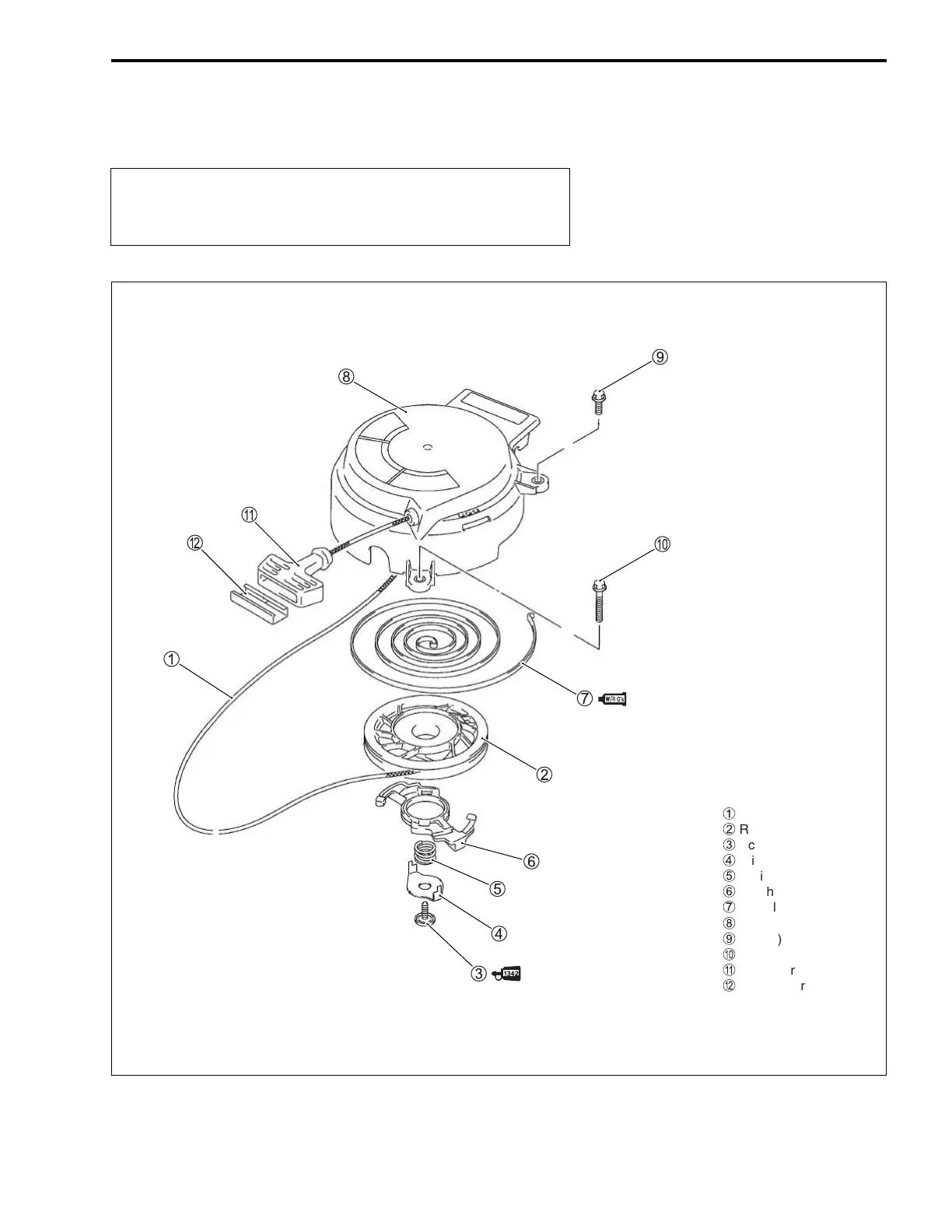

DISASSEMBLY

Because of the coiled tension in the recoil spring,
wear safety glasses and hand protection when wind-
ing or unwinding the component.
 Rope (1)
Reel (1)
! Screw (1)
" Friction plate (1)
# Spring (1)
$ Ratchet (1)
% Recoil spring (1)
& Recoil case (1)
' Bolt (1)
 Bolt (2)
) Starter grip (1)
* Grip holder (1)

Suzuki DF 2.5 Specifications

General

Engine Type	OHV
Fuel System	Carburetor
Starting System	Manual
Engine Mounting	Bushing Type
Gear Ratio	2.15:1
Gear Shift	F-N
Exhaust	Above Prop Exhaust
Maximum Output	1.8 kW (2.5 PS)
Ignition System	CDI
Fuel Tank Capacity	1.0 L
Weight	13.5 kg
Full Throttle Operating Range	5, 250 rpm
Trim Method	Manual
Bore x Stroke	48 x 38 mm (1.9 x 1.5 in.)
