5-4 RECOIL STARTER

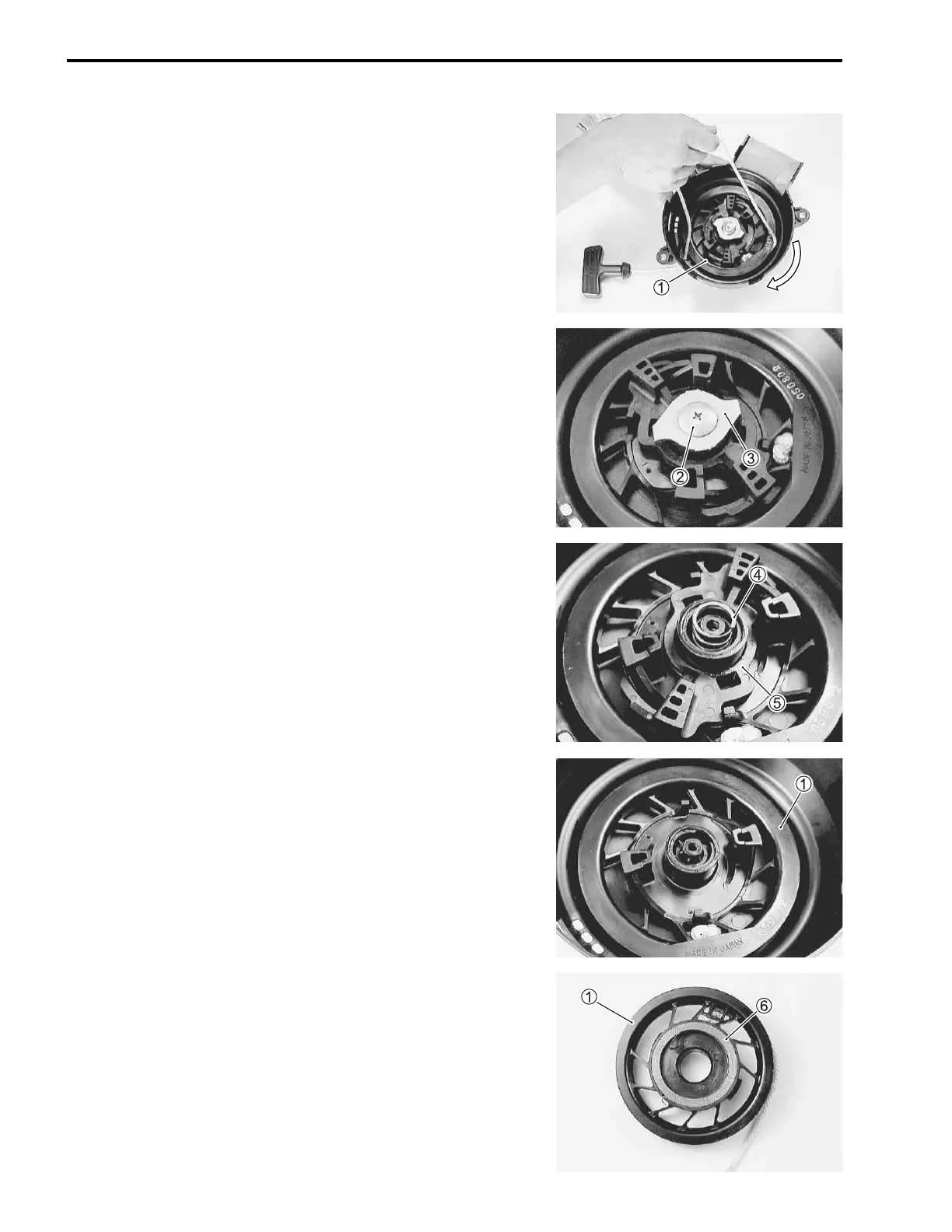

1. Turn the reel 1 clockwise in order to release the coiled ten-
sion in the recoil spring.
2. Remove the screw 2 and the friction plate 3.
NOTE:
Screw 2 is a left hand thread.
3. Remove the spring 4 and the ratchet 5.
4. Slowly remove the reel 1 with the recoil spring from the
recoil case.
5. Remove the recoil spring 6 from the reel 1.
NOTE:
Do not remove the recoil spring unless replacement is neces-
sary. Inspect the spring in the assembled position.
