4-12 FUEL SYSTEM

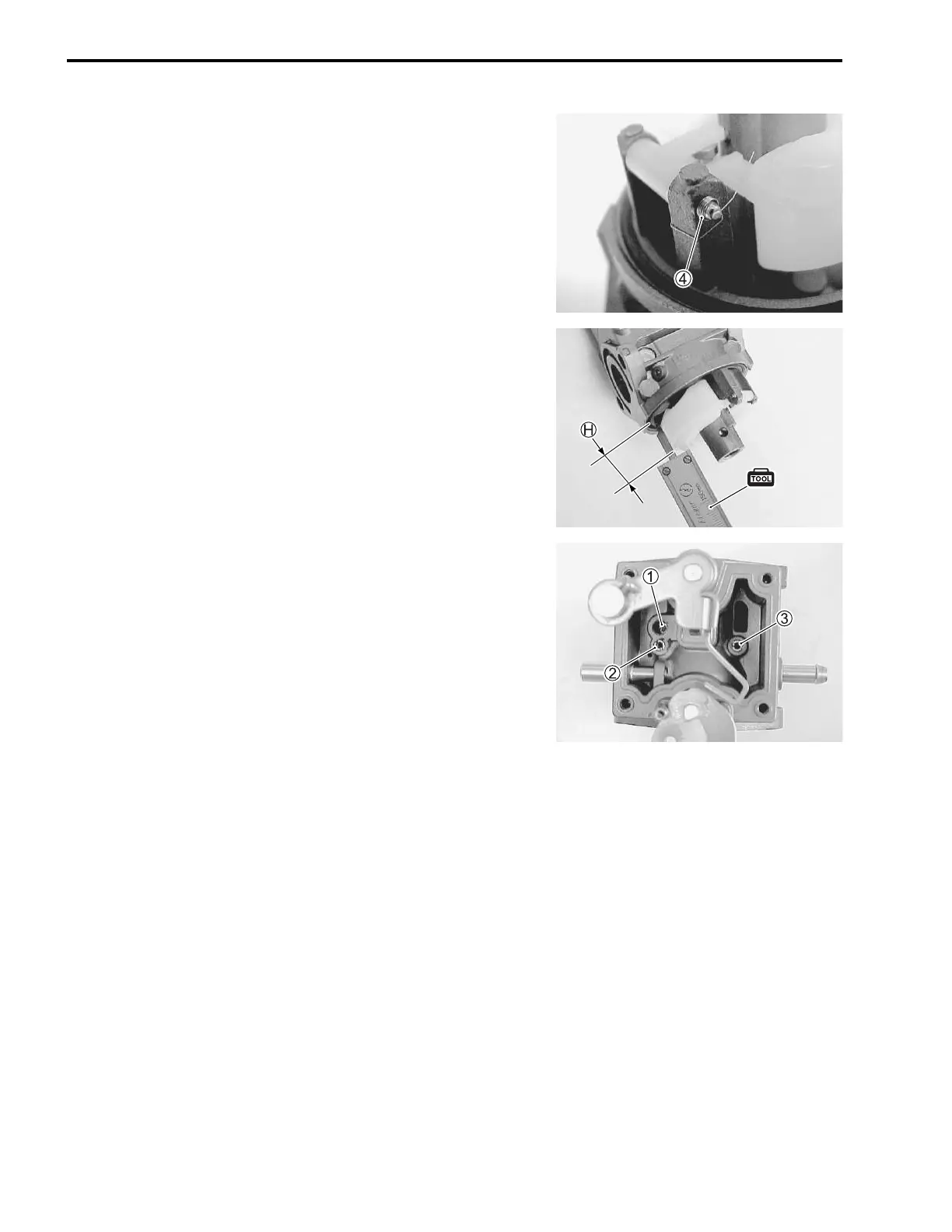

3. Install the float pin spring 4.
NOTE:
After installing float, inspect for smooth movement of float.
CHECKING FLOAT HEIGHT
Measure the float height.
NOTE:
Make sure that float weight is not applied to needle valve.
09900-20101: Vernier calipers
Float height H: 10 ± 2 mm
PILOT JET AND AIR JET
Install the pilot jet 1, the pilot air jet 2 and the main air jet 3.
