2B-18 Front Suspension:
Suspension Control Arm Joint Check
S3RH0A2206017
• Check for smooth rotation.
• Inspect ball stud for damage.
• Inspect dust cover for damage.
NOTE
Suspension control arm and arm joint cannot
be separated.
If there is any damage to either, control arm assembly
must be replaced as a complete unit.

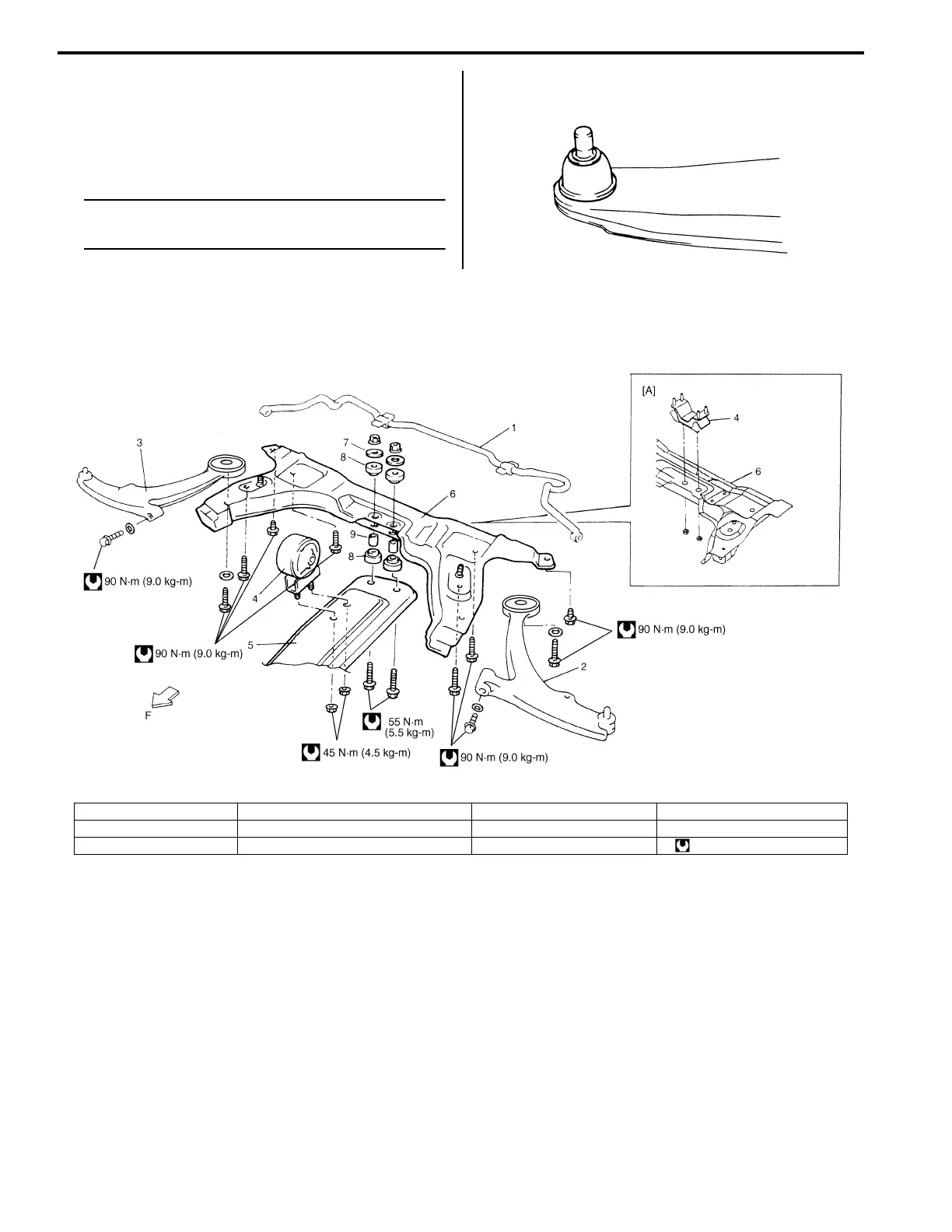

Front Suspension Frame Components
S3RH0A2206018
I2RH01220007-01
I4RH01220018-01
[A]: For 4WD vehicle 3. Suspension arm (Right) 6. Suspension frame 9. Spacer (2WD vehicle only)
1. Stabilizer bar 4. Engine rear mounting 7. Washer (2WD vehicle only) F: Forward
2. Suspension arm (Left) 5. Mounting member (2WD vehicle only) 8. Cushion (2WD vehicle only) : Tightening torque
To Next Page
