7A-16 Heater and Ventilation:

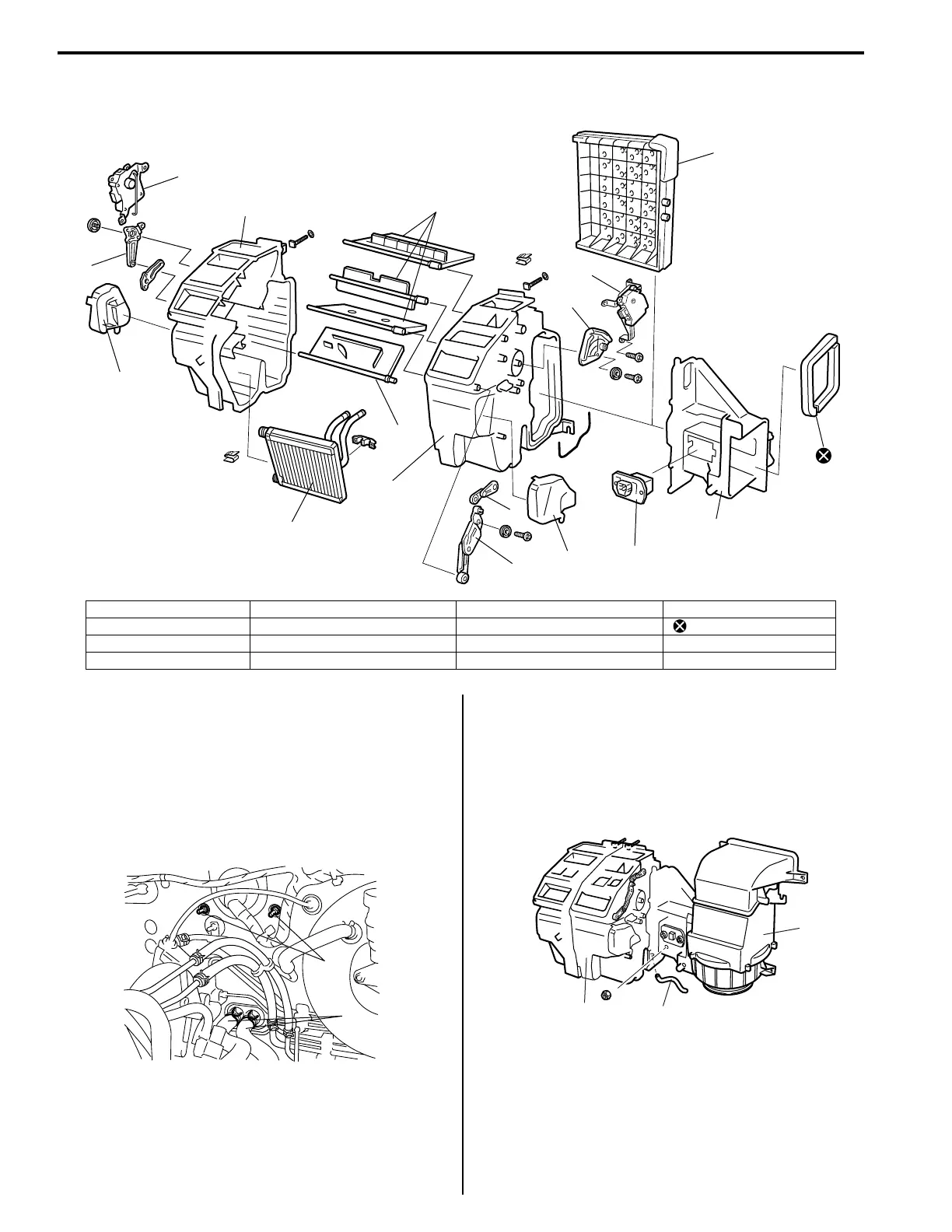

Heater Unit Components
S3RH0A7106008
Heater Unit Removal and Installation
S3RH0A7106009
Removal
1) Disconnect negative (–) cable at battery.
2) Drain engine coolant, and then disconnect heater
hoses (1) from heater unit.
3) Remove heater unit mounting nuts (2).
4) Remove instrument panel referring to “Instrument
Panel Removal and Installation in Section 9C”.
5) Remove blower unit (1) referring to Step 4) to 6) of
“Blower Unit Removal and Installation”.
6) Remove drain hose (2) from vehicle body.
7) Remove heater unit (3) from vehicle body.
Installation
Reverse removal procedure to install heater unit noting
the following instructions.
• When installing each part, be careful not to catch any
cable or wiring harness.
• Fill engine coolant to radiator.
5
2
20
6
11
3
10
6
1
4
9
7
12
10
6
9
8
I3RH0A710012-01
1. Heater core 5. Air flow selector door 9. Heater case 13. Air flow control actuator
2. Air resistive board 6. Air flow selector link assembly 10. Foot air nozzle : Do not reuse.
3. Blower motor controller 7. Temperature selector link assembly 11. Air resistive side case
4. Temperature selector door 8. Packing 12. Temperature control actuator
2
1
I2RH01710013-01
3
2
1
I3RH0A710020-01
To Next Page
