6C-11 Power Assisted Steering System:

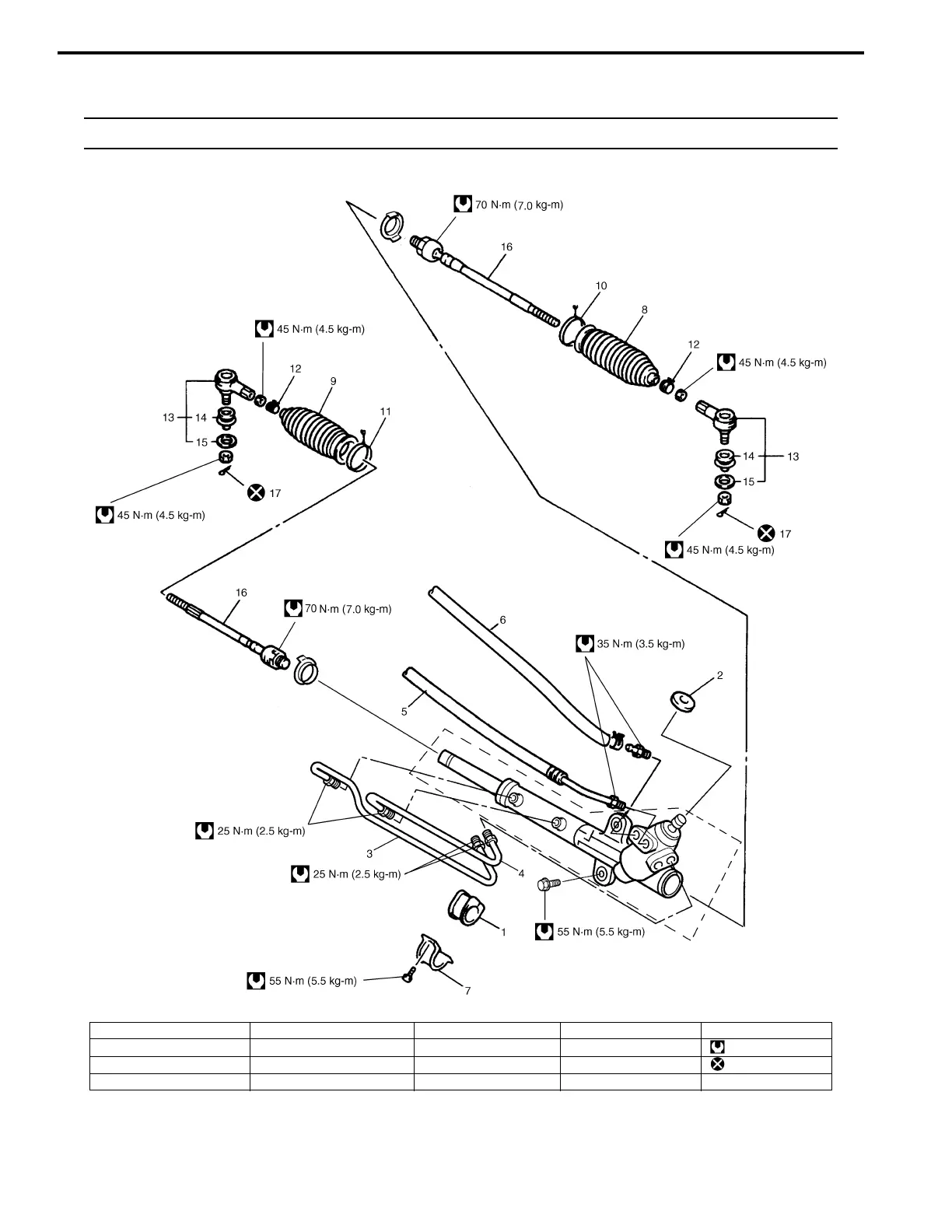

P/S Gear Box Components
S3RH0A6306011
NOTE
Component enclosed in broken line cannot be disassembled and adjusted.
I3RH0A630001-01
1. Steering rack side mount 5. High pressure pipe 9. Rack side boot 13. Steering tie-rod end 17. Split pin
2. Gasket 6. Low pressure return hose 10. Pinion side boot wire 14. Boot : Tightening torque
3. Cylinder pipe “A” 7. Mount bracket 11. Rack side boot wire 15. Clip : Do not reuse.
4. Cylinder pipe “B” 8. Pinion side boot 12. Boot clip 16. Tie-rod
