Brake Control System and Diagnosis: 4A-3

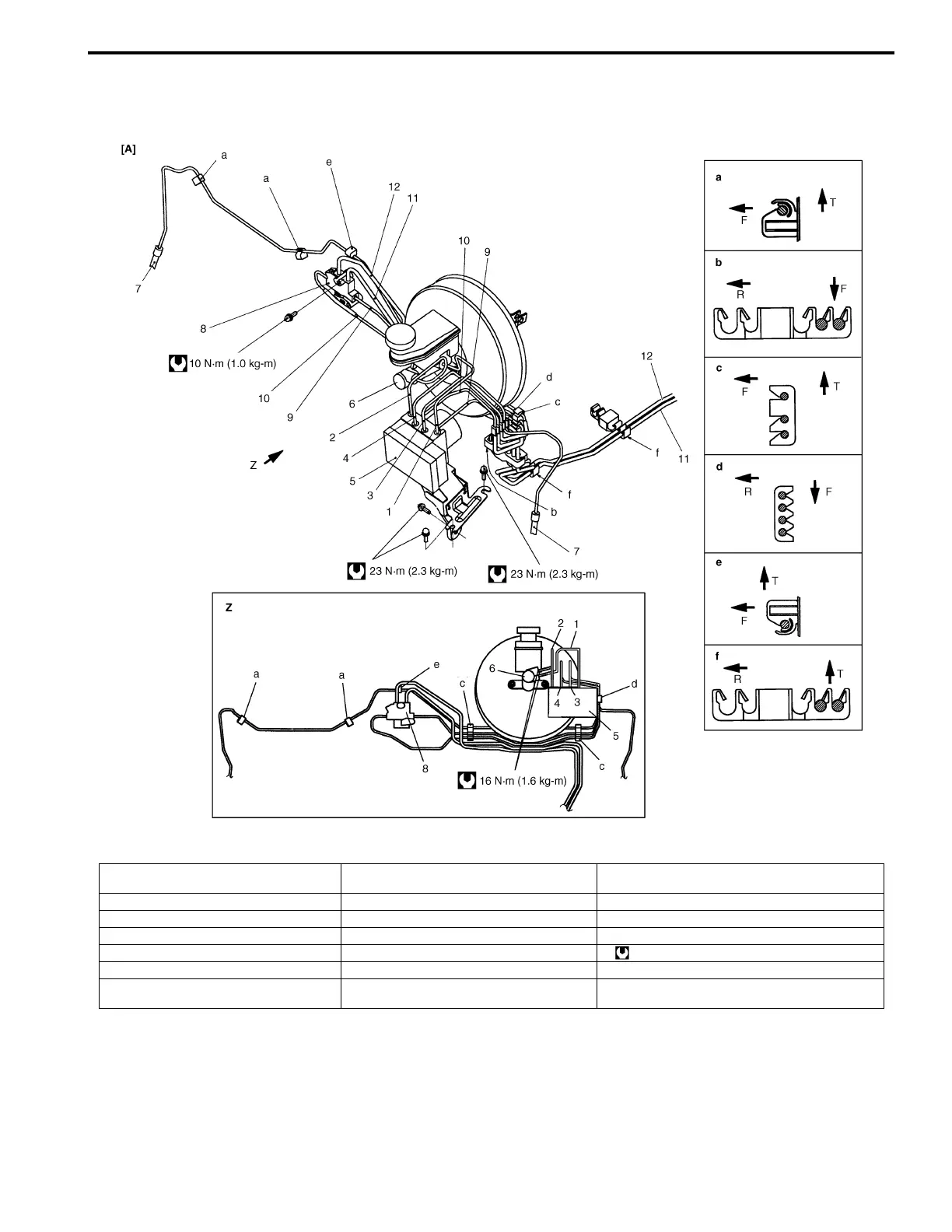

Front Brake Hose / Pipe Construction
S3RH0A4101002
For Vehicle with ABS
I3RH0A410005-01
[A]: For LH steering vehicle 2. From master cylinder secondary to ABS
hydraulic unit
9. From ABS hydraulic unit to ABS 4-way joint
T: Top side 3. From ABS hydraulic unit to left front brake 10. From ABS hydraulic unit to ABS 4-way joint
F: Front side 4. From ABS hydraulic unit to right front brake 11. From ABS 4-way joint to 4-way joint (rear side)
R: Right side 5. ABS hydraulic unit 12. From ABS 4-way joint to 4-way joint (rear side)
Z: View Z 6. Master cylinder : Tightening torque
[a]-[f]: Clamp 7. Front brake hose
1. From master cylinder primary to ABS
hydraulic unit
8. ABS 4-way joint
To Next Page
