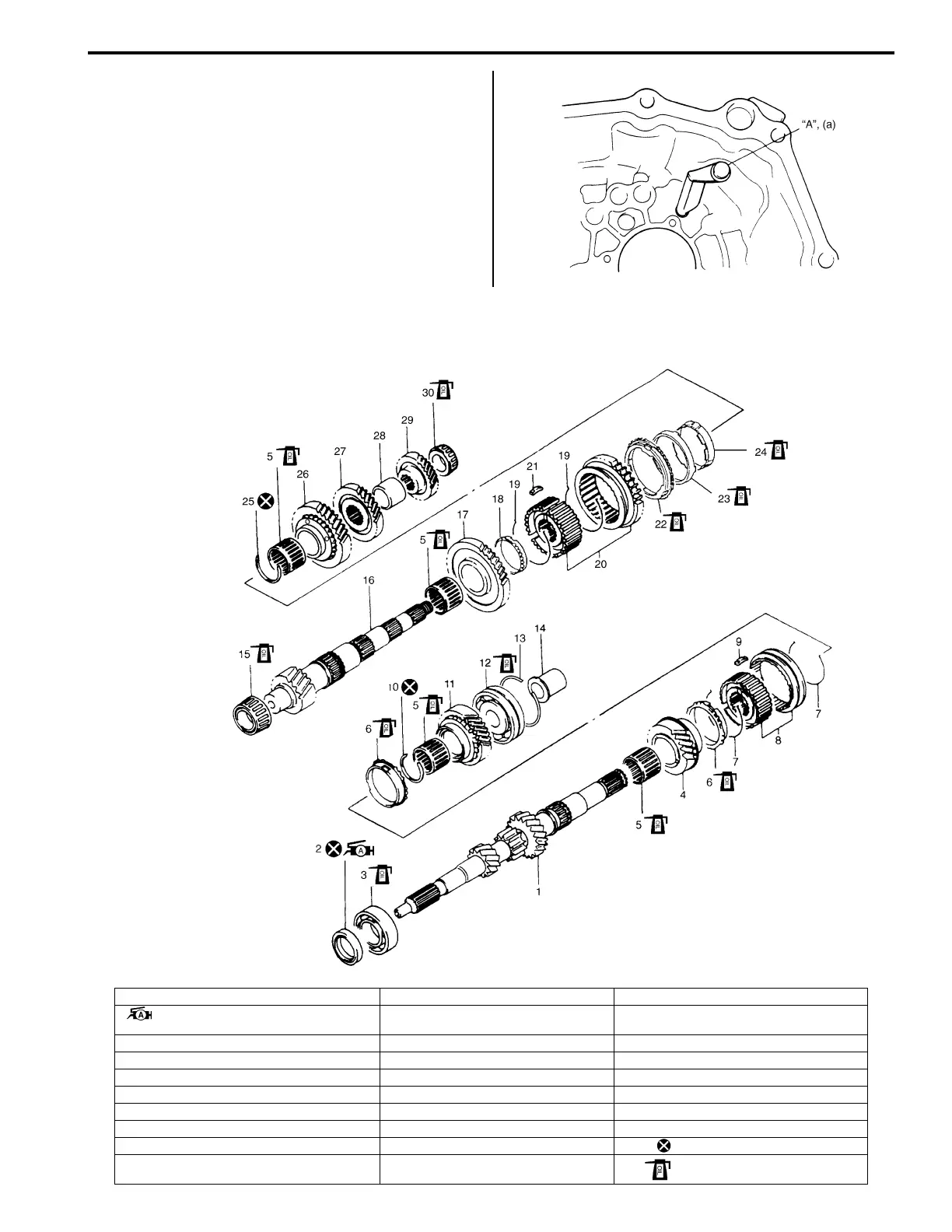

Manual Transmission/Transaxle: 5B-26
Assembly
1) If oil gutter has been removed, install it with bolt to
which thread lock cement has been applied.
“A”: Thread lock cement 99000–32110
Tightening torque
Oil gutter bolt (a): 10 N·m (1.0 kgf-m, 7.5 lb-ft)
Input Shaft and Countershaft Components
S3RH0A5206018
I2RH01520043-01
I3RH0A520017-01
1. Input shaft 12. Input shaft left bearing 23. Center cone
2. Oil seal
: Apply grease 99000-25010 to oil seal lip.
13. Circlip 24. 2nd gear synchronizer inner ring
3. Input shaft right bearing 14. 5th gear spacer 25. Circlip
4. Input shaft 3rd gear 15. Countershaft right bearing 26. Countershaft 2nd gear
5. Needle bearing (resin cage type) 16. Countershaft 27. Countershaft 3rd gear
6. High speed synchronizer ring 17. Countershaft 1st gear 28. 3rd & 4th gear spacer
7. High speed synchronizer spring 18. Low speed synchronizer ring 29. Countershaft 4th gear
8. High speed sleeve & hub 19. Low speed synchronizer spring 30. Countershaft left bearing
9. High speed synchronizer key 20. Low speed sleeve & hub : Do not reuse.
10. Circlip 21. Low speed synchronizer key : Apply transaxle oil.
