Suzuki RM250K4 - Front Fender and Number Plate Installation

15

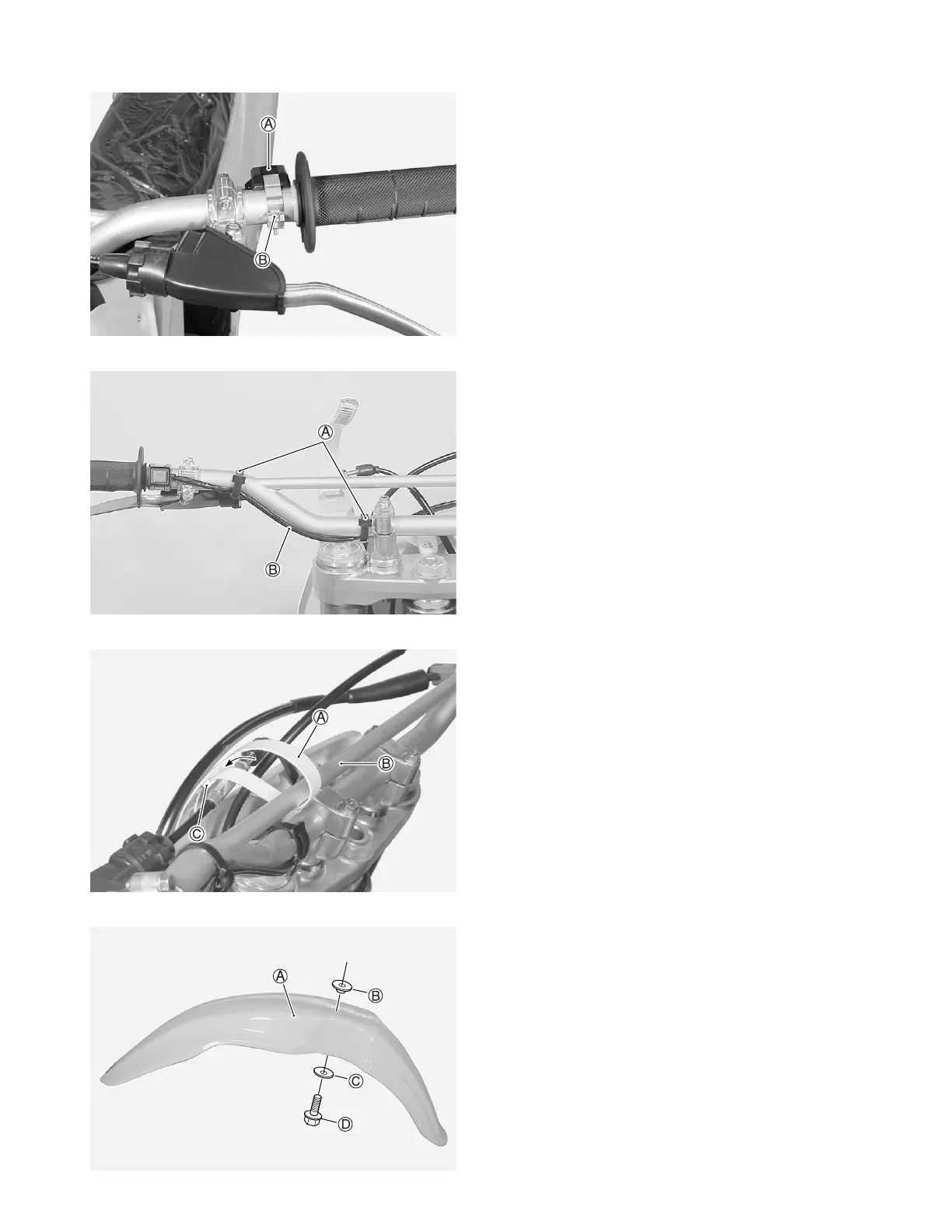

Install the engine stop switch to the left of handle-
bars.
A: Engine stop switch assembly
B: 3 × 14 mm screw (with lock washer)
CLAMP
Clamp the engine stop switch wiring harness with
strap.
A: Strap L:120 mm
B: Engine stop switch wiring harness
FRONT NUMBER PLATE
Pass the strap of the number plate around the han-
dlebar bridge pipe and through the guide.
A: Strap
B: Handlebar bridge pipe
C: Guide
FRONT FENDER
Install the front fender with four sets of mounting
parts as shown.
A: Front fender
B: Collared spacer OD:25.0 mm ID:6.5 mm T:6.5 mm
C: Washer OD:28.0 mm ID:6.5 mm
D: 6 × 16 mm flange bolt
